Very high CMR, wide VCC logic gate optocoupler. It is suitable for use in isolation of high speed logic systems, computer-peripheral interfaces, microprocessor system interfaces, ground loop elimination, pulse transformer replacement, high speed line receiver and power control systems.
- Wide operating VCC range: 4.5V to 20V
- 300ns propagation delay guaranteed over the full temperature range
- 5Mbd typical signal rate
- Low input current (1.6mA to 1.8 mA)
- Hysteresis
- Totem pole output (no pullup resistor required)
- Guaranteed performance from -40°C to 85°C
- UL recognized 5000VRMS for 1 minute
- CSA approved
- IEC/EN/DIN EN 60747-5-2 approved with VIORM = 1414V peak
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
BROADCOM |
| Part Number |
HCPL-2231-500E |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

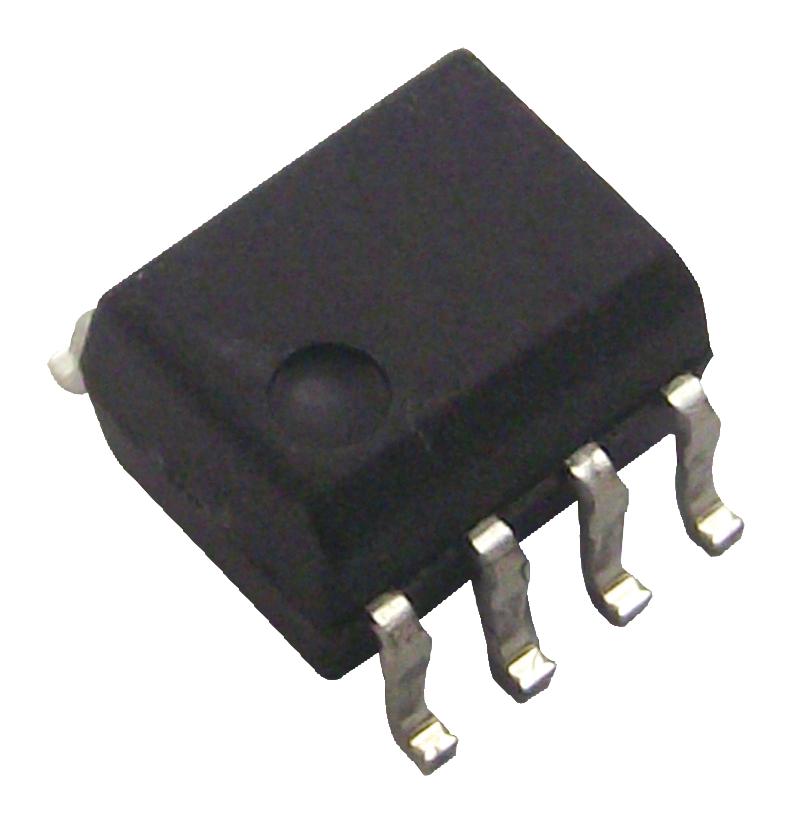

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
