Description

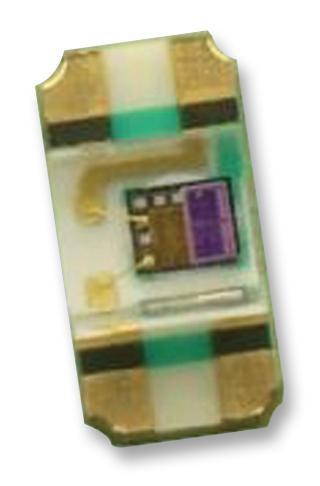

The APDS-9006-020 is an analogue-output Ambient Light Photo Sensor in a reverse mount. 4-pin miniature chip LED lead free surface mount package with temperature and voltage compensation features. It consists of a spectrally suited photo sensor, which provides excellent responsivity that is close to the response of the human eyes. Ideal for applications in which the measurement of ambient light is used to control display backlighting such as in note-book, mobile phone, PDA applications that draw heavy current from display backlighting will benefit from incorporating these photo sensor products in their designs by reducing power consumption significantly.
- Good output linearity across wide illumination range
- Low sensitivity variation across various light sources
- Stable performance over-temperature and voltage
- -40 to 85°C Operating temperature range
Applications
Sensing & Instrumentation, Lighting, Commercial, Computers & Computer Peripherals, Consumer Electronics
Product details
| Sensor Output: Analogue |
| Wavelength of Peak Sensitivity: 500nm |
| Supply Voltage Min: 2.4V |
| Supply Voltage Max: 5.5V |
| Ambient Light Sensor Case Style: ChipLED |
| No. of Pins: 4Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: APDS-9006 Series |
Other details
| Brand | BROADCOM |
| Part Number | APDS-9006-020 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 244.93 |
| 3-5 | ₹ 242.43 |
| 5-10 | ₹ 237.43 |
| 10+ | ₹ 232.43 |
Bulk discount will be automatically applied during checkout based on quantity.
