| ₹ 7283.26 includes GST and import duties. | |
| B2B customers can avail ₹ 1110.7 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

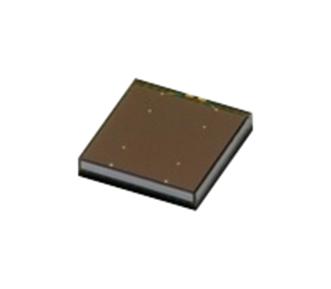

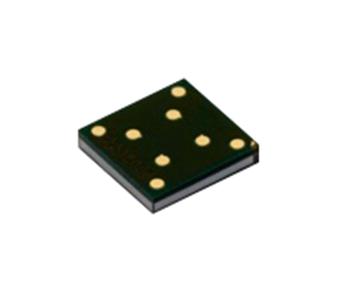

AFBR-S4N66P014M is a single-channel silicon photo multiplier (SiPM) used for ultra-sensitive precision measurements of single photons. This SiPM is based on the NUV-MT technology, which combines best-in-class photodetection efficiency (PDE) with decreased dark count rate and reduced crosstalk when compared to the NUV-HD technology. The SPAD pitch is 40μm. The encapsulation for good mechanical stability and robustness is realized by an epoxy clear mould compound, which is highly transparent down to UV wavelengths, resulting in a broad response in the visible light spectrum with high sensitivity toward the blue and near-UV region of the light spectrum. It is used in applications such as X-ray and gamma-ray detection, nuclear medicine, positron emission tomography, photon counting X-ray, safety and security, physics experiments, cherenkov detection.
- High PDE (63% at 420nm)
- 4-side tileable, with high fill factors
- Highly transparent epoxy protection layer
- Excellent uniformity of breakdown voltage and gain between devices
- Excellent SPTR and CRT
- Operating temperature range from -20°C to +60°C
Product details
Other details
| Brand | BROADCOM |
| Part Number | AFBR-S4N66P014M |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7137.59 |
| 3-5 | ₹ 7064.76 |
| 5-10 | ₹ 6919.1 |
| 10+ | ₹ 6773.43 |
Bulk discount will be automatically applied during checkout based on quantity.
