| ₹ 585.59 includes GST and import duties. | |
| B2B customers can avail ₹ 89.3 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

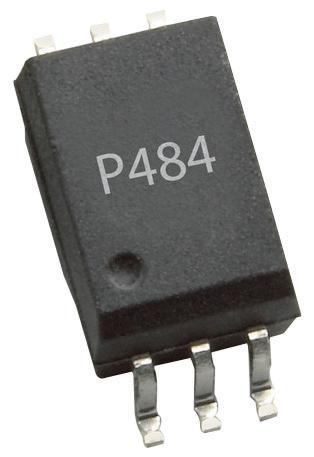

The ACPL-P484-000E is a 1-channel 6-pin Fast Speed Optocoupler contains an AlGaAs LED and photodetector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping. The totem pole output eliminates the need for a pull up resistor and allows for direct drive intelligent power module or gate drive. Minimized propagation delay difference between devices makes these optocoupler excellent solutions for improving inverter efficiency through reduced switching dead time. It is suitable for IPM interface isolation, isolated IGBT/MOSFET gate drive and general digital isolation.
- Positive output type (totem pole output)
- Performance specified for common IPM applications over industrial temperature range
- Short maximum propagation delays
- Very high common mode rejection (CMR)
- Hysteresis
- 90ns Maximum pulse width distortion (PWD)
- 4.5 to 30V Truth table guaranteed
Motor Drive & Control, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | BROADCOM |
| Part Number | ACPL-P484-000E |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 573.88 |
| 3-5 | ₹ 568.02 |
| 5-10 | ₹ 556.31 |
| 10+ | ₹ 544.6 |
Bulk discount will be automatically applied during checkout based on quantity.
