Description

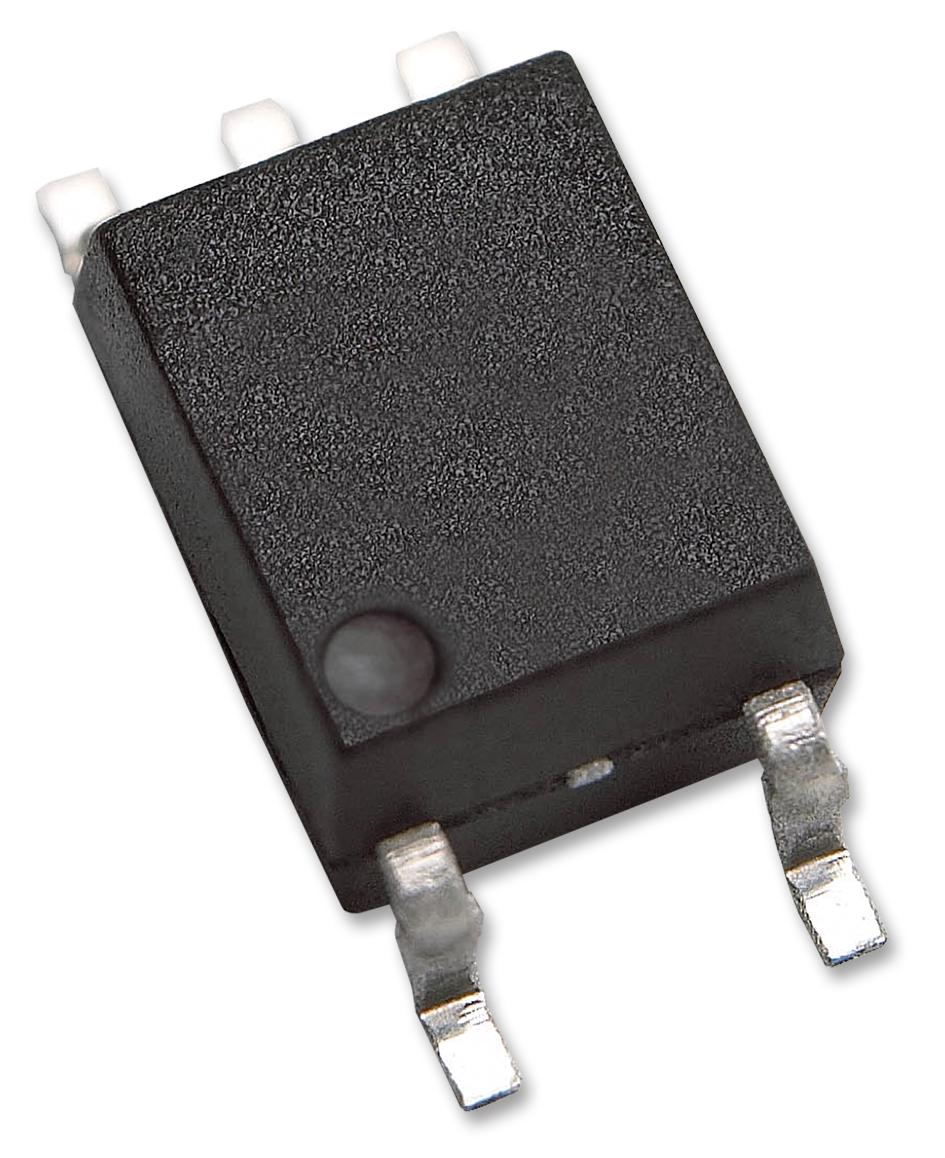

The ACPL-M50L-500E is a 1-channel 5-pin low power Digital Optocoupler uses an insulating layer between the light emitting diode and an integrated photon detector to provide electrical insulation between input and output. Separate connections for the photodiode bias and output transistor collector increase the speed up to a hundred times over that of a conventional photo-transistor coupler by reducing the base-collector capacitance. It has an increased common-mode transient immunity of 15kV/µs minimum at VCM=1500V over a temperature range of -40 to 105°C. The current transfer ratio (CTR) is 140% typical for ACPLM50L or 130% typical. This digital optocoupler can be use in any TTL/CMOS, TTL/LSTTL or wide bandwidth analogue applications.
- Open-collector output
- 3mA Low drive current
- 1µs at 5V Maximum low propagation delay
- 20mA Average forward input current
Communications & Networking, Signal Processing, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | BROADCOM |
| Part Number | ACPL-M50L-500E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
