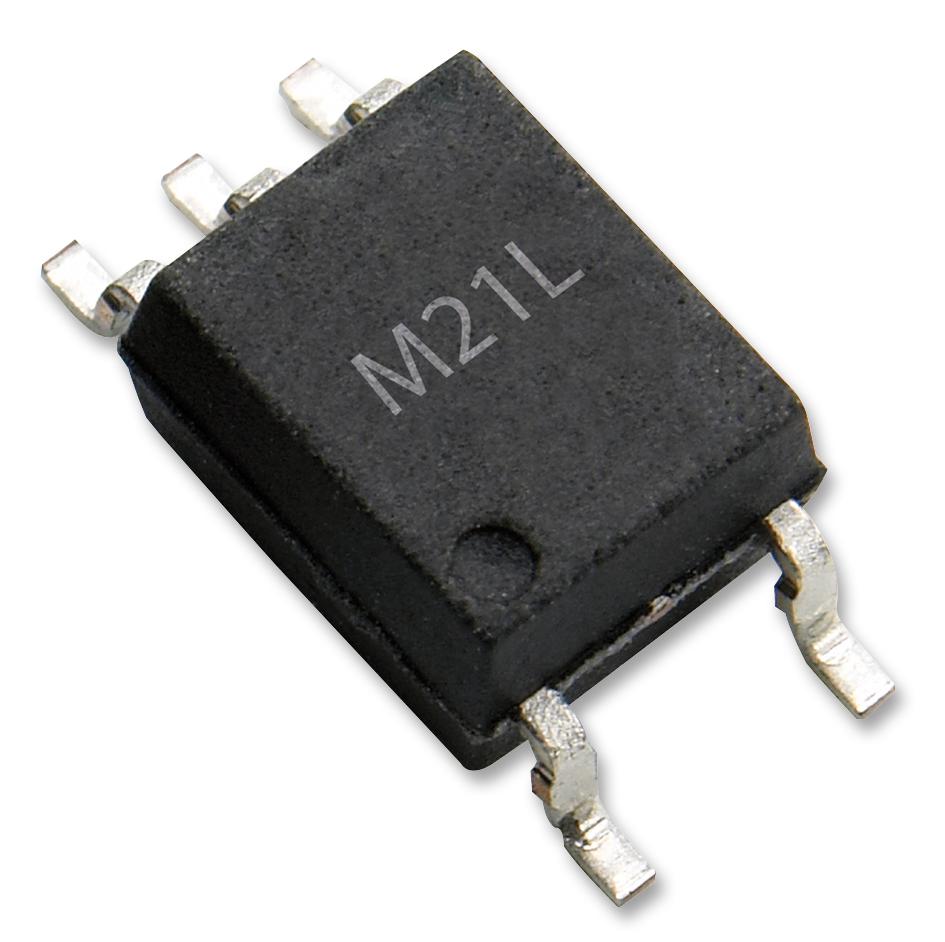

Low power, 5MBd digital CMOS optocoupler. Suitable for use in Low isolation of high speed logic systems, computer peripheral interface, microprocessor system interface, ground loop elimination, pulse transformer replacement, high-speed line receiver and power control systems.
- Wide supply voltage range from 2.7V to 5.5V
- Low power supply current and low forward current
- Speed: 5MBd typ
- Pulse width distortion (PWD): 200ns max
- Propagation delay skew (tpsk): 220 ns max
- Propagation delay (tp): 250ns max
- Common mode rejection: 25KV/µs min at VCM = 1000V
- Hysteresis: 0.2mA typ
- UL 1577 recognized: 3750 VRMS for 1 minute, CSA approval
- IEC/EN 60747-5-5, approval for reinforced insulation
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
BROADCOM |
| Part Number |
ACPL-M21L-500E |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
