| ₹ 970.92 includes GST and import duties. | |
| B2B customers can avail ₹ 148.07 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

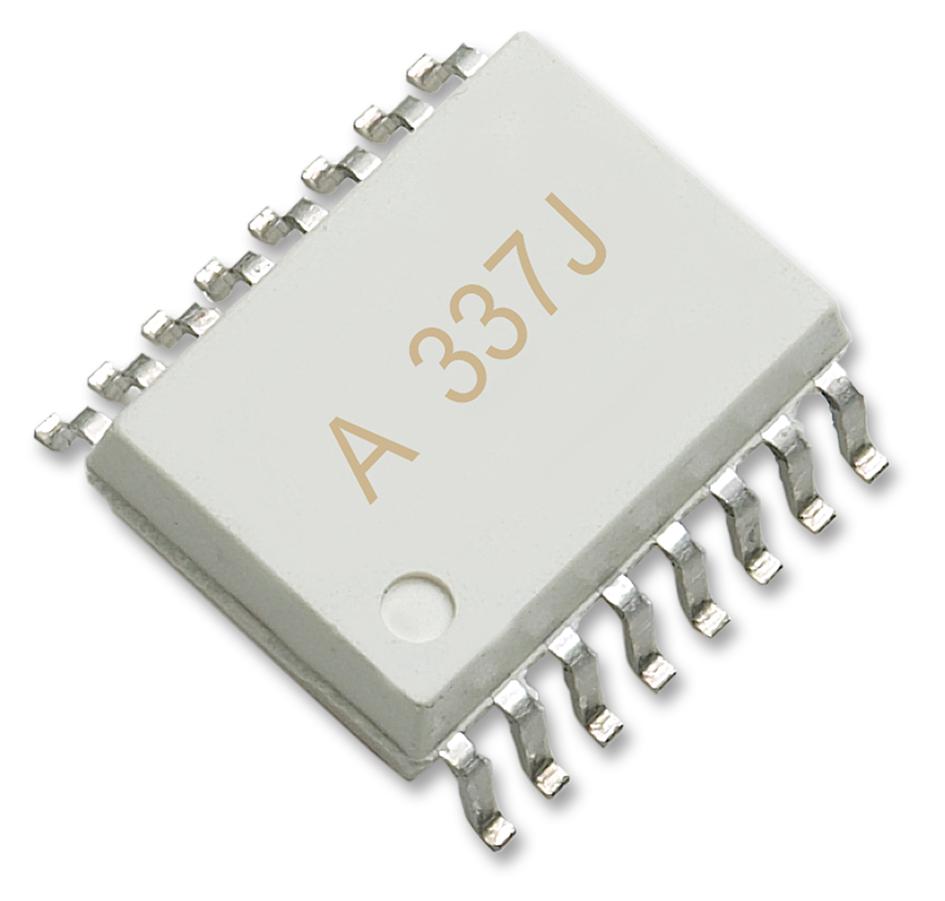

The ACPL-337J-000E is a 1-channel 16-pin surface-mount Gate Drive Optocoupler with integrated (VCE) de-saturation detection, active miller clamping, fault and UVLO status feedback. It features fast propagation delay with excellent timing skew performance. Smart features that are integrated to protect the IGBT include IGBT de-saturation detection with soft shutdown protection and fault feedback, under-voltage lockout and feedback and active Miller current clamping. This full-featured and easy-to-implement IGBT gate drive optocoupler comes in a compact. It is suitable for driving IGBTs and power MOSFETs used in inverter applications. Avago isolation products provide reinforced insulation and reliability that delivers safe signal isolation critical in high voltage and noisy industrial applications.
- Integrated fail-safe IGBT protection
- Integrated LED driver
- 4A Maximum peak output current
- 2A Miller clamp sinking current
- 250ns Maximum propagation delay over temperature
- 30kV/µs Minimum common mode rejection (CMR) at VCM=1500V
- IEC/EN/DIN EN 60747-5-5 Approved
Motor Drive & Control, Power Management, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | BROADCOM |
| Part Number | ACPL-337J-000E |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 951.5 |
| 3-5 | ₹ 941.79 |
| 5-10 | ₹ 922.37 |
| 10+ | ₹ 902.96 |
Bulk discount will be automatically applied during checkout based on quantity.
