Description

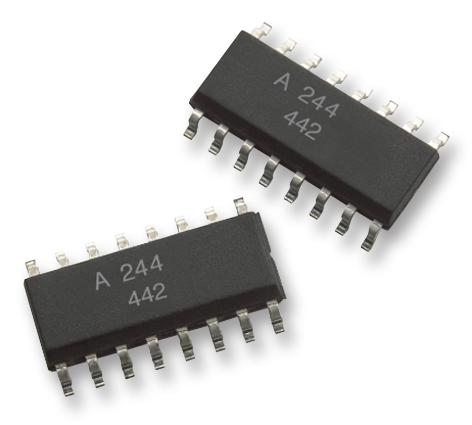

AC input, quad-channel half-pitch phototransistor optocoupler suitable for use in I/O interface for programmable controllers, computers, sequence controllers, system appliances, measuring instruments, signal transmission between circuits of different potentials and impedances.
- Current transfer ratio (CTR: 20% (min) at IF = ±1mA, VCE = 5V)
- High input-output isolation voltage (VISO = 3750VRMS)
- Non-saturated response time (tr: 2µs (typ) at VCC = 10V, IC = 2mA, RL= 100 ohm)
- CMR 10KV/µs (typical)
- Safety and regulatory approvals (cUL, IEC/EN/DIN EN 60747-5-5)
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| No. of Channels: 4 Channel |
| Optocoupler Case Style: SOIC |
| No. of Pins: 16Pins |
| Forward Current If Max: 50mA |
| Isolation Voltage: 3kV |
| CTR Min: 20% |
| Collector Emitter Voltage V(br)ceo: 80V |
| Product Range: - |
Other details
| Brand | BROADCOM |
| Part Number | ACPL-244-560E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
