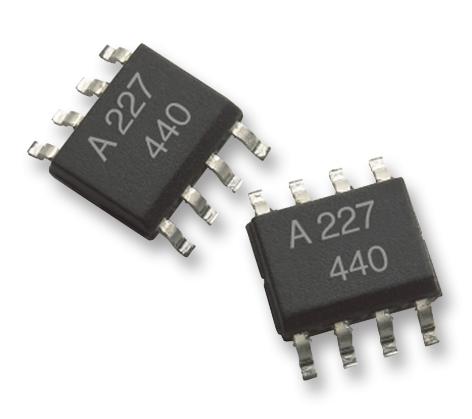

DC input, dual-channel half-pitch phototransistor optocoupler suitable for use in I/O interface for programmable controllers, computers, sequence controllers, system appliances, measuring instruments, signal transmission between circuits of different potentials and impedances.
- Current transfer ratio (CTR: 50% (min) at IF = ±5mA, VCE = 5V)
- High input-output isolation voltage (VISO = 3750VRMS)
- Non-saturated response time (tr: 2µs (typ) at VCC = 10V, IC = 2mA, RL= 100 ohm)
- CMR 10KV/µs (typical)
- Safety and regulatory approvals (cUL)
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
BROADCOM |
| Part Number |
ACPL-227-560E |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
