Description
Bright Tangerine Revolvr Overview
- 1Description
- 2Bright Tangerine Revolvr Atom 15mm Lightweight Core Bridge
- 3Bright Tangerine Revolvr Atom Focus Handwheel
- 4Bright Tangerine Revolvr Atom Marking Disc
- 5Bright Tangerine Revolvr Gear 0.8 35 Tooth with 10mm Face
- 6Bright Tangerine Revolvr Gear 0.8 43 Tooth with 6mm Face
- 7Bright Tangerine Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge (1:1 Ratio)

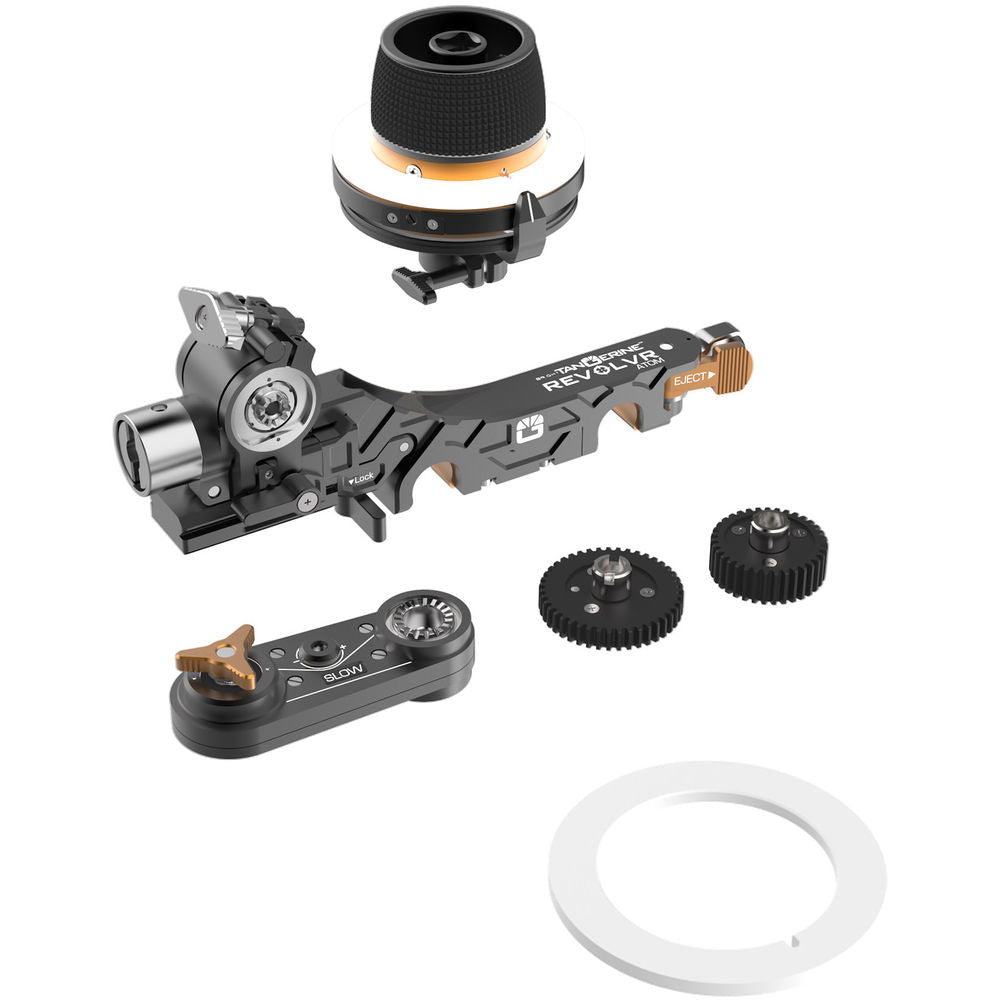

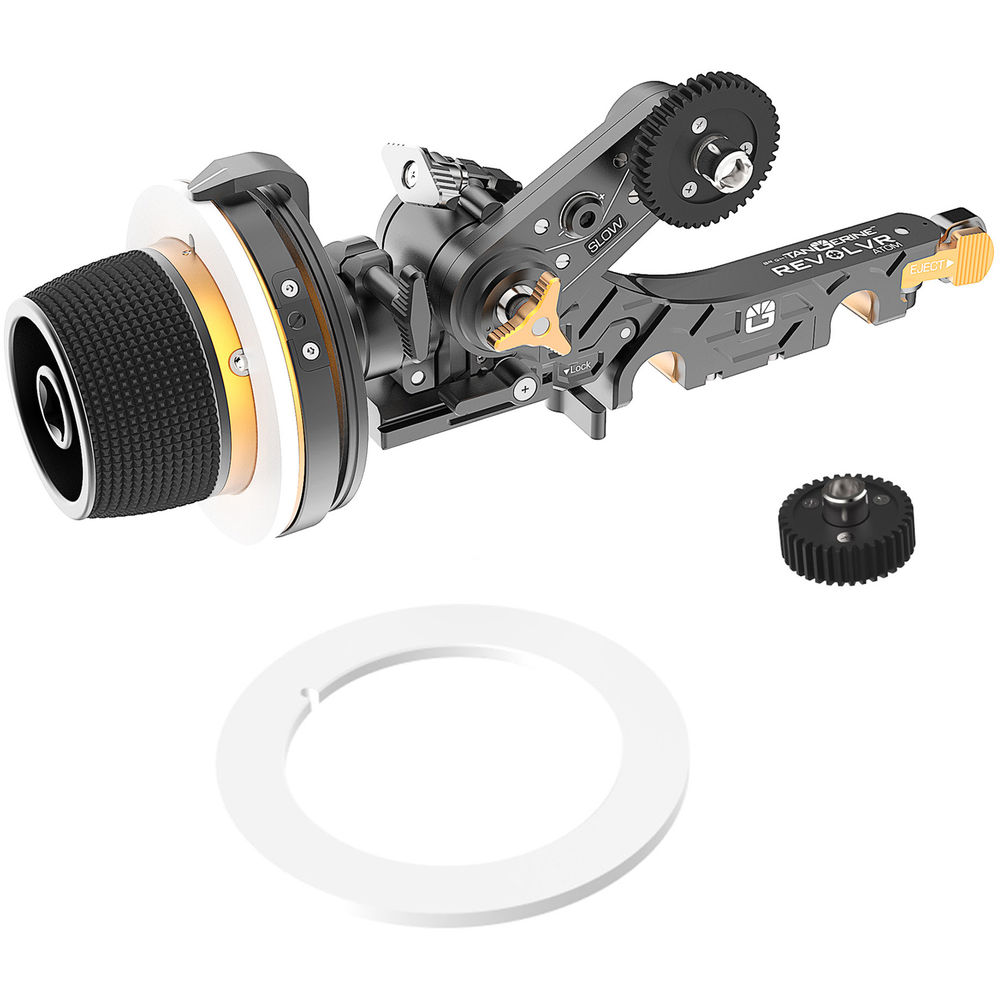

The Revolvr Atom Mini Kit from Bright Tangerine is a small-sized follow focus unit for mounting on 15mm LWS support rods. The Atom is a single-sided focus bridge that accepts standard and mini handwheels. Single-sided focus units are often, but not exclusively, used for handheld work or on locations where spaces are tight.
The handwheel and bridge both accept standard accessories, and using an optional Bright Tangerine 4D crank or focus whip provides for a play-free coupling. Included with the kit is a swing arm with an internal drive ratio of 1:1, and it also features a drive belt tension adjustment to eliminate play. The kit comes with two 0.8 Mod cine-style gears, and a total of two removable marking discs are included.
The Bright Tangerine Revolvr Atom 15mm Lightweight Core Bridge is the very heart of a precision-made, smoothly operating follow focus unit. It requires the addition of a swing arm, focus drive gear, and follow focus handwheel or crank to create a functional follow focus unit. The Revolvr Atom 15mm Lightweight Core Bridge is a small unit that accepts a single handwheel. It is suitable for use during handheld operation or in tight spaces where space is at a premium.
The core accepts both Bright Tangerine swing arms, and features a gearbox that provides a backlash-free experience with virtually no play. The snap-on clamps mount the Lightweight Core Bridge on 15mm LWS support rods. Custom rod adapters by Bright Tangerine allow you to mount the core on 15 or 19mm studio rods (rod adapters not included).
Designed to work seamlessly with your Bright Tangerine Revolvr or Revolvr Atom focus unit, the Revolvr Atom Focus Handwheel provides a raised gripping surface for a secure grip. Featuring a ribbed surface for extra grip, the Atom handwheel is a small or mini version of the standard handwheel for a minimum footprint. You can mount the handwheel on either side of you focus unit, so you can pull focus from either side of the lens just by switching it to the other side.
The handwheel also includes a removable Delrin marking disc, and it features an industry-standard accessory socket for optional whips and cranks. With an optional pack of two removable soft/hard stops, you can mount and adjust the position of either stop on the handwheel. Each stop features an index line, so you can set multiple focus points on your handwheel. Pressing the plunger activates the hard stops, which can be set to provide limits to lens rotation when working with endlessly rotating lenses. With the plunger released, the hard stops become soft stops, allowing you to use your fingers to stop the rotation of your focus wheel.
- The disc is interchangeable and can be used on any industry-standard mini handwheel.
- The detent will prevent the disc from rotating on a handwheel with a matching locating pin. This guarantees your marks remain accurate.
- You can pre-mark discs to match specific lenses for rapid lens changes and focus resets; additional discs must be purchased separately.
- The stops feature an inscribed white index mark for lining up the marks on your disc.
- Using soft stops allows you to set your focus positions, and then you can grasp your focus handwheel with your fingers on the edge of the disc, allowing you to pull focus while looking at the subject and not the lens, as your fingers will feel the stops. This is a popular technique, as it allows the focus puller to have a sense of where the ends of their pull is, without having to look away from the action to check the lens or handwheel. Because it is a soft stop, the focus puller can also go beyond the stop simply by moving their fingers away.
- Engaging the hard stop functionality allows you to set limits for rotation of your lens. This can be useful when pulling focus on lenses that rotate endlessly.
Bright Tangerine's Revolvr Atom Marking Disc fits on industry-standard focus mini handwheels and features a detent that can prevent the marking disc from spinning on its own. The surface of the disc is smooth, which allows it to work with dry- and wet-erase markers. It is made from Delrin for a favorable balance between durability and weight.
The Revolvr Gear 0.8 35 Tooth with 10mm Face from Bright Tangerine features a 0.8 Mod, which allows it to interface with lenses that feature a cine-style geared focus, zoom, or iris ring. It works with either of the swing away arms for the Revolvr or Revolvr Atom follow focus units.
The gear features 35 teeth and a small diameter yet wide profile suitable for use with primes and zoom lenses. The 10mm width (or thickness) makes it especially suitable for use with lenses that experience some focus travel. In addition, the width allows you some flexibility in placing your follow focus.
The Revolvr Gear 0.8 43 Tooth with 6mm Face from Bright Tangerine features a 0.8 Mod, which allows it to interface with lenses that feature a cine-style geared focus, zoom, or iris ring. It works with either of the swing away arms for the Revolvr or Revolvr Atom follow focus units.
The gear features 43 teeth and a small diameter yet wide profile suitable for use with primes and zoom lenses. The 6mm width (or thickness) makes it especially suitable for use with lenses that experience some focus travel. In addition, the width allows you some flexibility in placing your follow focus.
This Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge from Bright Tangerine features a 1:1 gear ratio and is designed to work with the Revolvr Lightweight or Revolvr Atom Core Bridge (not included). The Swing Arm transfers the focus movements from the handwheel mounted on your core bridge to the drive gear that interfaces with your lens. The swing arm mounts to your core bridge with a single screw, and pivots to adjust for the diameter of your lens.
You can mount the Swing Arm on either side of your core bridge's drive transmission to match the position of your lens's focus gear. Designed specifically for the Revolvr and Revolvr Atom core, the Swing Arm accepts Bright Tangerine drive gears and the reversing gear. It features a tension adjustment roller to eliminate backlash.
In the Box
- Bright Tangerine Revolvr Atom 15mm Lightweight Core Bridge
- Bright Tangerine Revolvr Atom Focus Handwheel
- Bright Tangerine Revolvr Atom Marking Disc
- 2 x Bright Tangerine Revolvr Atom Marking Disc
- Bright Tangerine Revolvr Gear 0.8 35 Tooth with 10mm Face
- Bright Tangerine Revolvr Gear 0.8 43 Tooth with 6mm Face
- Bright Tangerine Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge (1:1 Ratio)
- Description
- Bright Tangerine Revolvr Atom 15mm Lightweight Core Bridge
- Bright Tangerine Revolvr Atom Focus Handwheel
- Bright Tangerine Revolvr Atom Marking Disc
- Bright Tangerine Revolvr Gear 0.8 35 Tooth with 10mm Face
- Bright Tangerine Revolvr Gear 0.8 43 Tooth with 6mm Face
- Bright Tangerine Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge (1:1 Ratio)
Bright Tangerine Revolvr Atom 15mm Lightweight Core Bridge Specs
| Material of Construction | Titanium, anodized aluminum, and stainless steel |
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 16 x 12 x 2.5" |
Bright Tangerine Revolvr Atom Focus Handwheel Specs
| Material of Construction | Titanium, anodized aluminum, stainless steel, rubber, and Delrin |
| Compatibility | Revolvr and Revolvr Atom core bridges Industry-standard cranks and whips Bright Tangerine 4D speed crank |
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.5 x 4.4" |
Bright Tangerine Revolvr Atom Marking Disc Specs
| Material of Construction | Delrin |
| Finish | Smooth for use with dry erase and wet erase markers |
| Compatibility | Industry-Standard Mini Handwheels |
| Dimensions | Outer Diameter: 3.2" / 81.9 mm Inner Diameter: 2.3" / 58.0 mm Thickness: 0.2" / 4.0 mm |
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 3 x 3 x 1" |
Bright Tangerine Revolvr Gear 0.8 35 Tooth with 10mm Face Specs
| Material of Construction | Delrin and stainless steel |
| MOD | 0.8 |
| Number of Teeth | 35 |
| Face Width | 0.4" / 10 mm |
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 1.5 x 1.4 x 0.1" |
Bright Tangerine Revolvr Gear 0.8 43 Tooth with 6mm Face Specs
| Material of Construction | Delrin and stainless steel |
| MOD | 0.8 |
| Number of Teeth | 43 |
| Face Width | 0.2" / 6 mm |
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 2.8 x 2 x 0.85" |
Bright Tangerine Revolvr Swing Arm Cine for Revolvr Lightweight Core and Revolvr Atom Core Bridge (1:1 Ratio) Specs
| Material of Construction | Anodized aluminum, stainless steel |
| Compatibility | Industry standard drive gears Bright Tangerine 0.8 mod 10-tooth reverse gear |
| Package Weight | 0.145 lb |
| Box Dimensions (LxWxH) | 3.3 x 1.3 x 0.7" |
