Description
Bright Tangerine B4005.0124 Overview
- 1Description
- 2Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core
- 3Bright Tangerine Left Field ARRI-Style Dovetail Plate
- 4Bright Tangerine C200/C300 Mk II/500 II/700 Riser for Left Field 15mm LWS Baseplate
- 5Bright Tangerine Sliding Top Plate Core for Canon C500 Mark II
- 6Bright Tangerine Top Handle with 1/4"-20 Mounting Screws
- 7Bright Tangerine Canon LA-V1 Monitor Bracket Adapter
- 8Bright Tangerine LeftField 3 ARRI Standard Dovetail (12")
- 9Bright Tangerine ARRI 3/8" Accessory Mount to 15mm Rod Adapter
- 10Bright Tangerine Left Field 15mm LWS Bracket
- 11Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods (12", Pair)

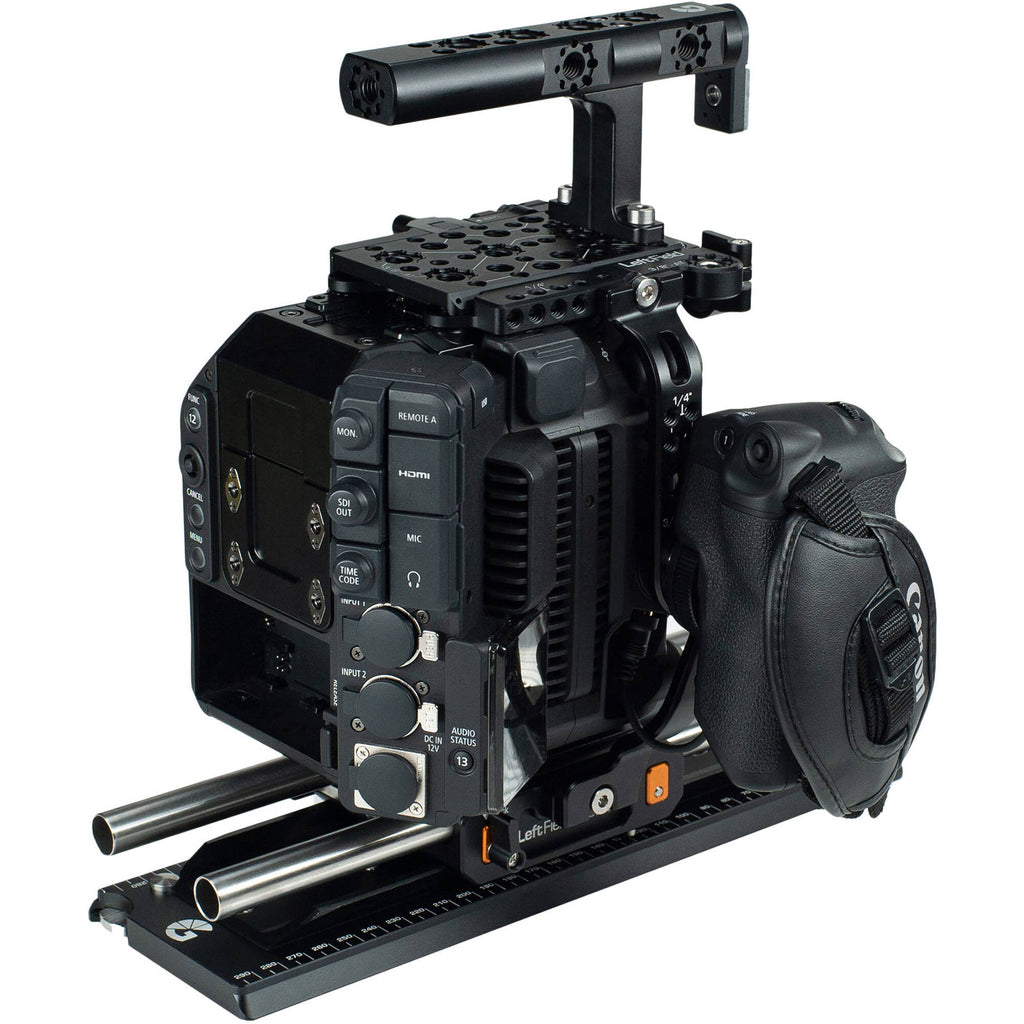

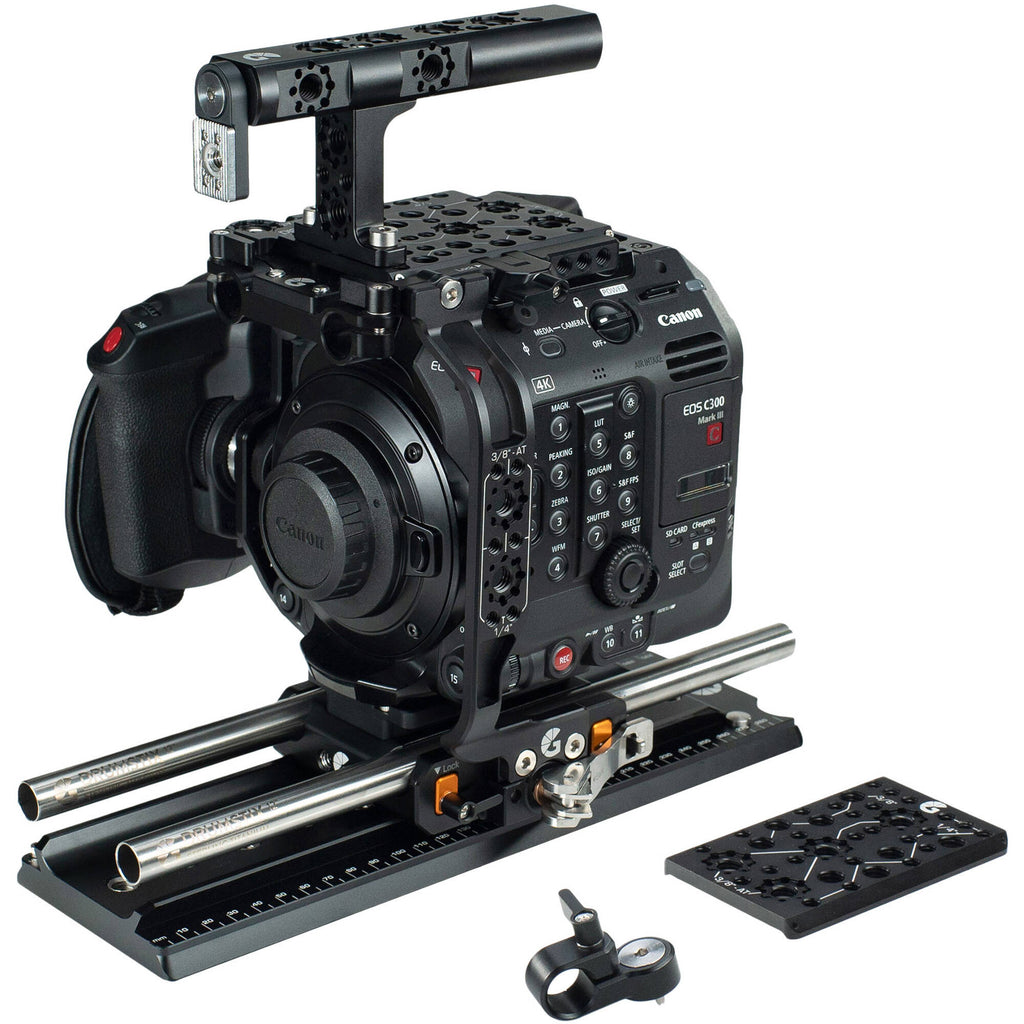

Support your Canon C300 Mark III cinema camera on your shoulder or tripod rig and add accessories with this LeftField 3 Advanced Kit from Bright Tangerine. The Advanced Kit is made up of the LeftField 3 baseplate core, a lower ARRI-style dovetail plate, a camera-compatible riser for LeftField baseplates, the sliding top plate core, a top handle, a LA-V1 monitor bracket adapter, a LeftField 15mm LWS bracket, left and right side plates, a single 15mm rod clamp to 3/8"-16 accessory mount, a 12" ARRI standard dovetail plate, and a pair of 12" Drumstix 15mm rods. All the components are made from durable aluminum.
The LeftField 3 baseplate features the Bright Tangerine Open�Up quick release system, and it offers 15mm LWS rod ports for an optional rod system. The lower, low-profile dovetail plate features a standard ARRI dovetail, and the top plate core, top handle, and side plates provide carry and mounting options. You can also utilize the included ARRI-standard dovetail for balancing a larger rig. The included Canon riser allows you to mount the camera onto the rig to ensure your camera is at the proper 15mm LWS height. You can also mount your separately available Canon LA-V1 Monitor Bracket using the included adapter so you can reposition your camera's LCD.
The LeftField 3 15mm LWS Quick Release Baseplate Core from Bright Tangerine combines with different interchangeable Bright Tangerine riser blocks and dovetail plates for compatibility with multiple different cameras, tripods, and gimbals. The optional riser blocks provide the correct optical height for each camera and can be swapped in as needed.
The LeftField 3 Baseplate Core attaches to any ARRI-standard dovetail or the Bright Tangerine Left Field ARRI-Style Dovetail Plate. Using Bright Tangerine's Open�Up quick release system, it allows you to quickly switch between shoulder rigs, tripods, gimbals, and other camera supports such as the KASBAH shoulder pad. It also features a sliding, locking base that helps achieve optimal balance wherever you mount it.
The Baseplate Core provides front and rear 15mm LWS rod mounts for attaching accessories. Other LeftField components, such as side plates, supports, and grips can be attached to dedicated mounting threads to build up a full cage.
- Combines with interchangeable riser blocks for compatibility with different cameras
- ARRI-standard dovetail compatible
- Sliding base
- Front and rear 15mm LWS rod mounts
- LeftField side plates and other components supported, including KASBAH shoulder pad
- Multiple accessory mounts
The 4" Left Field ARRI-Style Dovetail Plate from Bright Tangerine is an ARRI-standard dovetail with multiple accessory mounts. When used with a separately available Left Field 15mm LWS Baseplate, the Dovetail Plate functions as a quick release plate.
This cheese plate can mount onto the top or bottom of your camera and incorporates multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts. The two removable safety screws can also be used to fix the plate onto your camera.
- Functions as a quick release plate when used with an optional Left Field 15mm LWS Baseplate
- Multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts
- ARRI-standard dovetail
- Removable safety screws
The C200/C300 Mk II/500 II/700 Riser from Bright Tangerine sets your camera at the correct optical height for the 15mm LWS rod standard. This Riser is compatible with the Left Field 15mm LWS Baseplate and features captive 1/4"-20 and 3/8"-16 camera screws.
Securely mount a quick release plate for a handle and accessories on top of your Canon C500 Mark II camera with this Sliding Top Plate Core from Bright Tangerine. The top plate core is compatible with the Left Field ARRI-style dovetail plate, which locks into place with a locking lever and allows sliding for balance when mounted on a gimbal or shoulder rig.
The top plate core features multiple 1/4"-20 and 3/8"-16 ARRI-style accessory threads for mounting, and it mounts onto the top of your camera with five mounting screws. The side threads can be used to mount accessories or side plates to create a full cage. The front threads can be used to connect to the optional Left Field 15mm Rod Bracket to add 15mm LWS rods to the camera top.
This aluminum Top Handle from Bright Tangerine attaches to most camera cages with 1/4"-20 screws. The universal-style handle can be rotated 180° for your preferred fit, and its cheese design features numerous 1/4"-20 and 3/8"-16 threaded holes for mounting accessories. The Top Handle supports the ARRI HEB-1, HEB-2, and HEB-3 handle extension block systems to further extend the handle on your gear.
Use the Canon LA-V1 Monitor Bracket Adapter from Bright Tangerine to reposition the separately available Canon LA-V1 bracket for more comfortable viewing with your C200 or C500 Mark II's LCD touchscreen monitor.
Mount this compact plate onto your LA-V1 bracket, then attach it to a 3/8"-16 thread or an ARRI anti-twist accessory mount on your camera cage or top handle.
Quickly mount and remount your camera between a tripod, jib, crane, gimbal, and more with this heavy-duty, 12" long LeftField 3 ARRI Standard Dovetail from Bright Tangerine. The durable aluminum dovetail plate features laser-engraved position markings to keep track while changing lenses or balancing your camera. A front and rear safety button releases to ensure your camera does not slide off the plate.
The plate features multiple 3/8"-16 and 1/4"-20 mounting threads with inserts to prevent stripping. The dovetail is compatible with any ARRI-standard clamp, as well as OConnor 2600, 2575D, and 120EX and Sachtler Cine 30 tripod heads. The dovetail can also be used with the LeftField 3 15/19mm Studio Quick Release Bridgeplate or LeftField 3 15mm LWS Baseplate.
- Jibs, cranes, gimbals, tripods etc. compatible with ARRI standard dovetail
- LeftField 3 19mm Studio Quick Release Bridgeplate
- LeftField 3 15mm LWS Baseplate
- OConnor 2600, 2575D, and 120EX tripod heads
- Sachtler Cine 30 tripod heads
The Bright Tangerine ARRI 3/8" Accessory Mount to 15mm Rod Adapter is a useful accessory that enables you to mount a 15mm rod clamp onto a 3/8"-16 threaded accessory mounting hole or an ARRI Accessory Mount. It features chamfered edges which make it more comfortable in the hand and helps prevent the unit from being damaged or damaging other pieces of gear it comes into contact with.
Attach this Left Field 15mm LWS Bracket from Bright Tangerine to a Left Field Top Plate and add standard 15mm LWS rods to your camera or camera cage. The rod ports secure two separately available 15mm rods with locking levers. The bracket allows you to rod-mount accessories such as a lens support, lens motor, EVF, or monitor to your camera.
This pair of Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods is extremely lightweight yet amazingly stiff, allowing you to add rod-mounted accessories to your rig with virtually no flex in the rods, something every owner, operator, assistant, and rental house will appreciate. Each 12" long support rod is extremely lightweight yet exhibits less flex than carbon fiber rods of the same length, and it is lighter than either steel or aluminum rods while being at least as stiff and strong. Made from titanium, the rods are corrosion resistant, and each is machined and ground flat to prevent binding as you mount accessories.
In the Box
- Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core
- Limited 2-Year Manufacturer Warranty
- Bright Tangerine Left Field ARRI-Style Dovetail Plate
- 2 x Safety Screw
- Limited 5-Year Manufacturer Warranty
- Bright Tangerine C200/C300 Mk II/500 II/700 Riser for Left Field 15mm LWS Baseplate
- Limited 5-Year Manufacturer Warranty
- Bright Tangerine Sliding Top Plate Core for Canon C500 Mark II
- 5 x Mounting Screw
- Limited 1-Year Manufacturer Warranty
- Bright Tangerine Top Handle with 1/4"-20 Mounting Screws
- 2 x 1/4"-20 Mounting Screw
- Limited 5-Year Manufacturer Warranty
- Bright Tangerine Canon LA-V1 Monitor Bracket Adapter
- Limited 5-Year Manufacturer Warranty
- Bright Tangerine LeftField 3 ARRI Standard Dovetail (12")
- Limited 2-Year Manufacturer Warranty
- Bright Tangerine Left Field Side Plate Kit for Canon C500 Mark II & C300 Mark III
- Bright Tangerine Left-Side Cage Plate for Canon C500 Mark II & C300 Mark III
- Bright Tangerine Right-Side Cage Plate for Canon C500 Mark II & C300 Mark III
- Limited 5-Year Manufacturer Warranty
- Bright Tangerine ARRI 3/8" Accessory Mount to 15mm Rod Adapter
- Limited 5-Year Manufacturer Warranty
- Bright Tangerine Left Field 15mm LWS Bracket
- Limited 1-Year Manufacturer Warranty
- Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods (12", Pair)
- Limited Lifetime Manufacturer Warranty
- Description
- Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core
- Bright Tangerine Left Field ARRI-Style Dovetail Plate
- Bright Tangerine C200/C300 Mk II/500 II/700 Riser for Left Field 15mm LWS Baseplate
- Bright Tangerine Sliding Top Plate Core for Canon C500 Mark II
- Bright Tangerine Top Handle with 1/4"-20 Mounting Screws
- Bright Tangerine Canon LA-V1 Monitor Bracket Adapter
- Bright Tangerine LeftField 3 ARRI Standard Dovetail (12")
- Bright Tangerine ARRI 3/8" Accessory Mount to 15mm Rod Adapter
- Bright Tangerine Left Field 15mm LWS Bracket
- Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods (12", Pair)
Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core Specs
Support Type |
Baseplate
|
Grip Type |
No
|
Rod Standard |
15 mm LWS / 60 mm Spacing
|
Battery Plate Type |
No
|
Accessory Mounting |
Multiplex 1/4"-20 Female Thread
|
Camera Mounting |
Quick Release Plate
|
Tripod Mounting |
ARRI Dovetail
|
Rod Ports |
2x 15 mm Rod Port
|
Shoe Mounting |
No
|
Rosettes |
No
|
Dimensions |
4.9 x 4.4 x 1.3" / 12.5 x 11.1 x 3.3 cm
|
Weight |
11.2 oz / 317 g
|
