Description

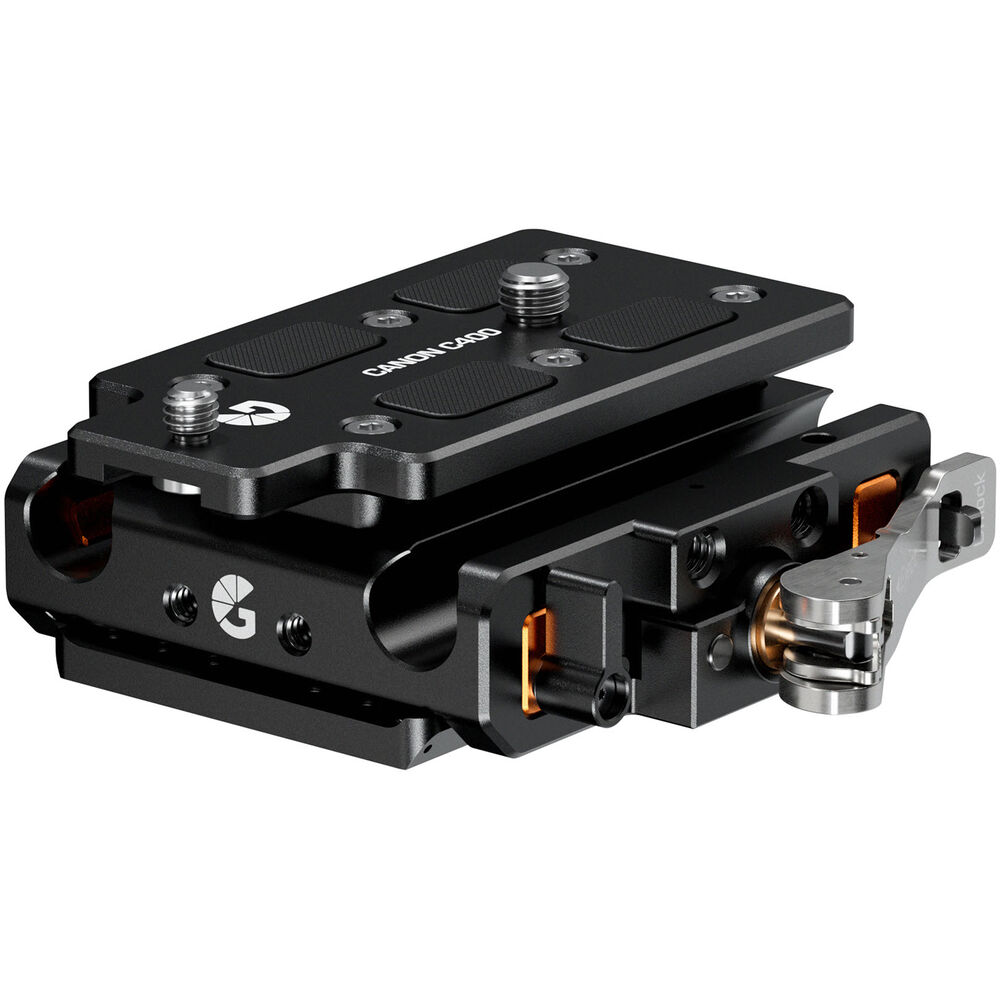

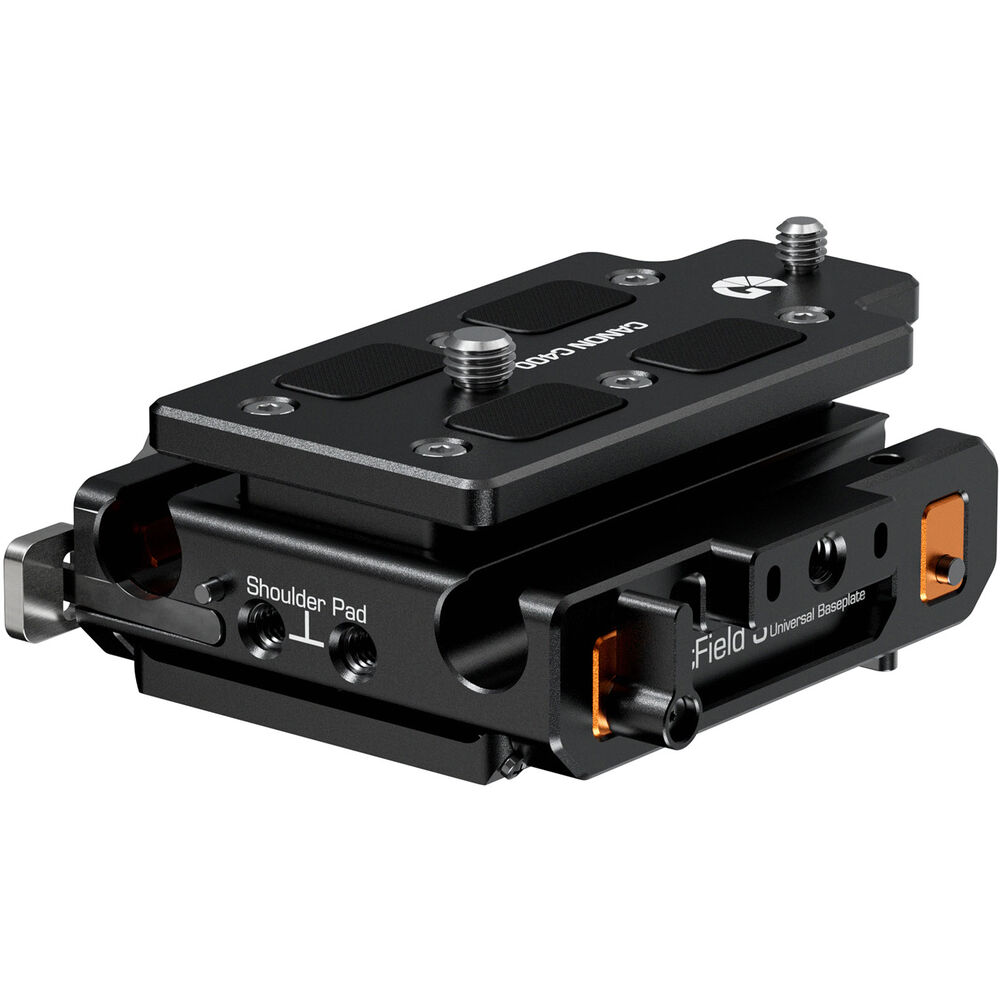

Build your Canon C400 rig using this LeftField 3 Baseplate Kit from Bright Tangerine. This kit utilizes the Open?Up quick release system and includes the LeftField 3 15mm LWS baseplate core, a LeftField ARRI-style dovetail bottom plate, and a riser plate for the Canon C400 to ensure the camera is at the proper 15mm LWS height.
Mount your Canon EOS C400 camera and ensure it is set to 15mm LWS standard height when mounted on a variety of camera platforms with this Canon C400 Riser for 15mm LWS Baseplates from Bright Tangerine. The durable aluminum riser is designed to be used with Bright Tangerine 15mm LeftField Baseplates such as the LeftField 3 15mm LWS Baseplate B4003.1034.
The plate features rubber pads to protect the camera and prevent twisting, and it includes six captive screws to mount it onto the separately available baseplate. The camera mounts using the captive 3/8"-16 and 1/4"-20 mounting screws.
The LeftField 3 15mm LWS Quick Release Baseplate Core from Bright Tangerine combines with different interchangeable Bright Tangerine riser blocks and dovetail plates for compatibility with multiple different cameras, tripods, and gimbals. The optional riser blocks provide the correct optical height for each camera and can be swapped in as needed.
The LeftField 3 Baseplate Core attaches to any ARRI-standard dovetail or the Bright Tangerine Left Field ARRI-Style Dovetail Plate. Using Bright Tangerine's Open?Up quick release system, it allows you to quickly switch between shoulder rigs, tripods, gimbals, and other camera supports such as the KASBAH shoulder pad. It also features a sliding, locking base that helps achieve optimal balance wherever you mount it.
The Baseplate Core provides front and rear 15mm LWS rod mounts for attaching accessories. Other LeftField components, such as side plates, supports, and grips can be attached to dedicated mounting threads to build up a full cage.
- Combines with interchangeable riser blocks for compatibility with different cameras
- ARRI-standard dovetail compatible
- Sliding base
- Front and rear 15mm LWS rod mounts
- LeftField side plates and other components supported, including KASBAH shoulder pad
- Multiple accessory mounts
The 4" Left Field ARRI-Style Dovetail Plate from Bright Tangerine is an ARRI-standard dovetail with multiple accessory mounts. When used with a separately available Left Field 15mm LWS Baseplate, the Dovetail Plate functions as a quick release plate.
This cheese plate can mount onto the top or bottom of your camera and incorporates multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts. The two removable safety screws can also be used to fix the plate onto your camera.
- Functions as a quick release plate when used with an optional Left Field 15mm LWS Baseplate
- Multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts
- ARRI-standard dovetail
- Removable safety screws

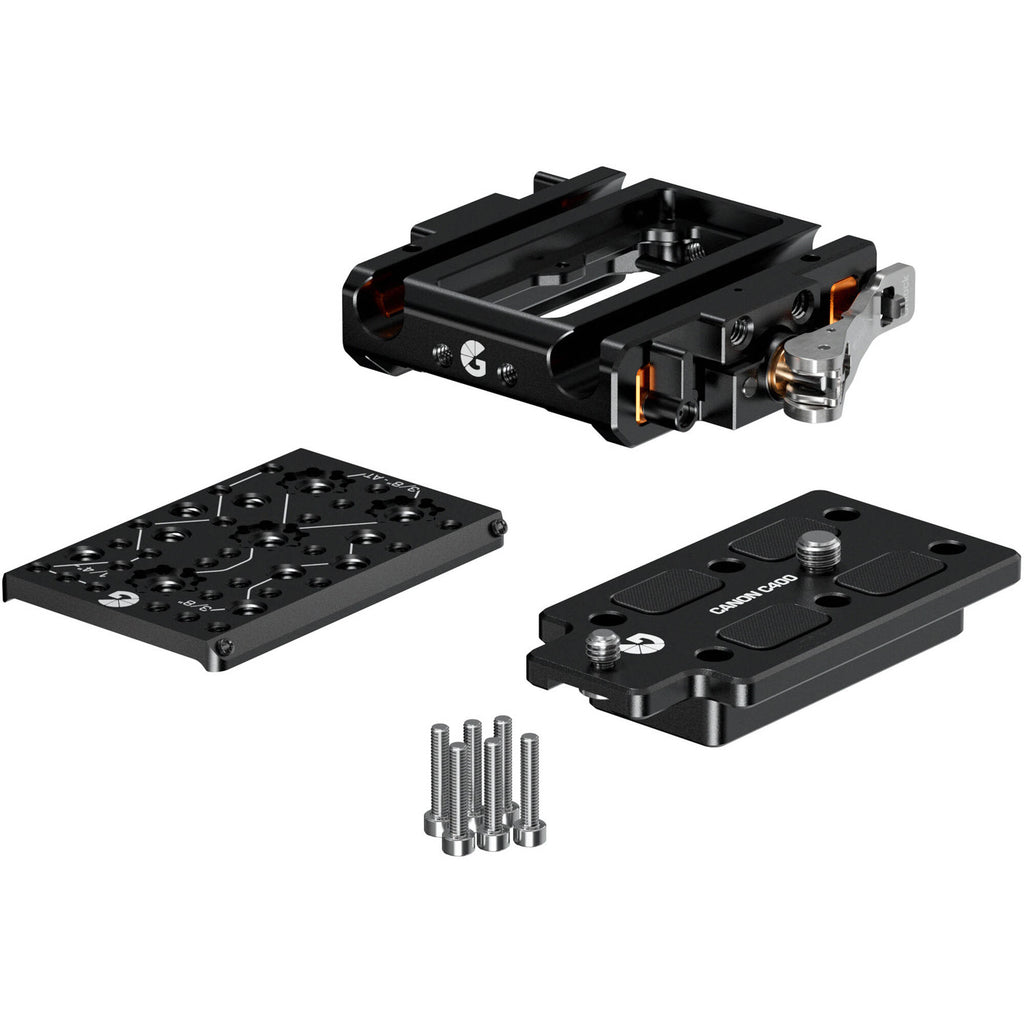

Items Included
- Bright Tangerine Canon C400 Riser for 15mm LWS Baseplates
- 6 x M4 Mounting Screw
- 1/4"-20 Captive Screw
- 3/8"-16 Captive Screw
- Limited 2-Year Manufacturer Warranty
- Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core
- Limited 2-Year Manufacturer Warranty
- Bright Tangerine Left Field ARRI-Style Dovetail Plate
- 2 x Safety Screw
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Bright Tangerine Canon C400 Riser for 15mm LWS Baseplates
| Compatibility |
Canon C400
Bright Tangerine LeftField Baseplates / LeftField 3 15mm LWS Baseplate B4003.1034 |
| Mounting |
6x Screws
1x 1/4"-20 Camera Screw 1x 3/8"-16 Camera Screw |
| Color |
Black
|
| Material of Construction |
Aluminum, Rubber
|
| Dimensions |
4.6 x 2.4 x 1.2" / 11.7 x 6 x 3.1 cm
|
| Weight |
6.4 oz / 181 g
|
| Package Weight |
0.355 lb
|
| Box Dimensions (LxWxH) |
5.8 x 3.4 x 1"
|
