Description
Bright Tangerine B4004.0120 Overview
- 1Description
- 2Bright Tangerine Top Plate II for Sony FX6
- 3Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core
- 4Bright Tangerine Left Field ARRI-Style Dovetail Plate
- 5Bright Tangerine Sony FX6 Riser for Left Field 15mm LWS Baseplate

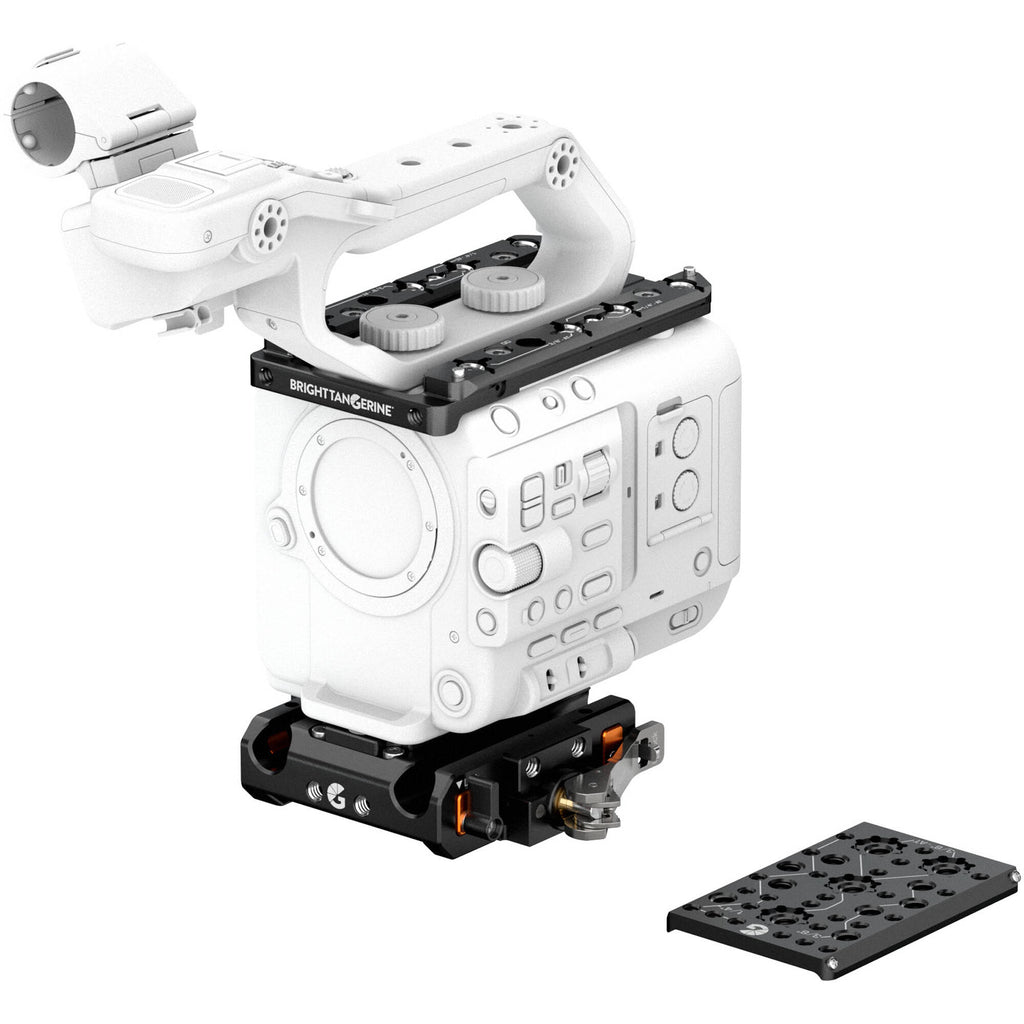

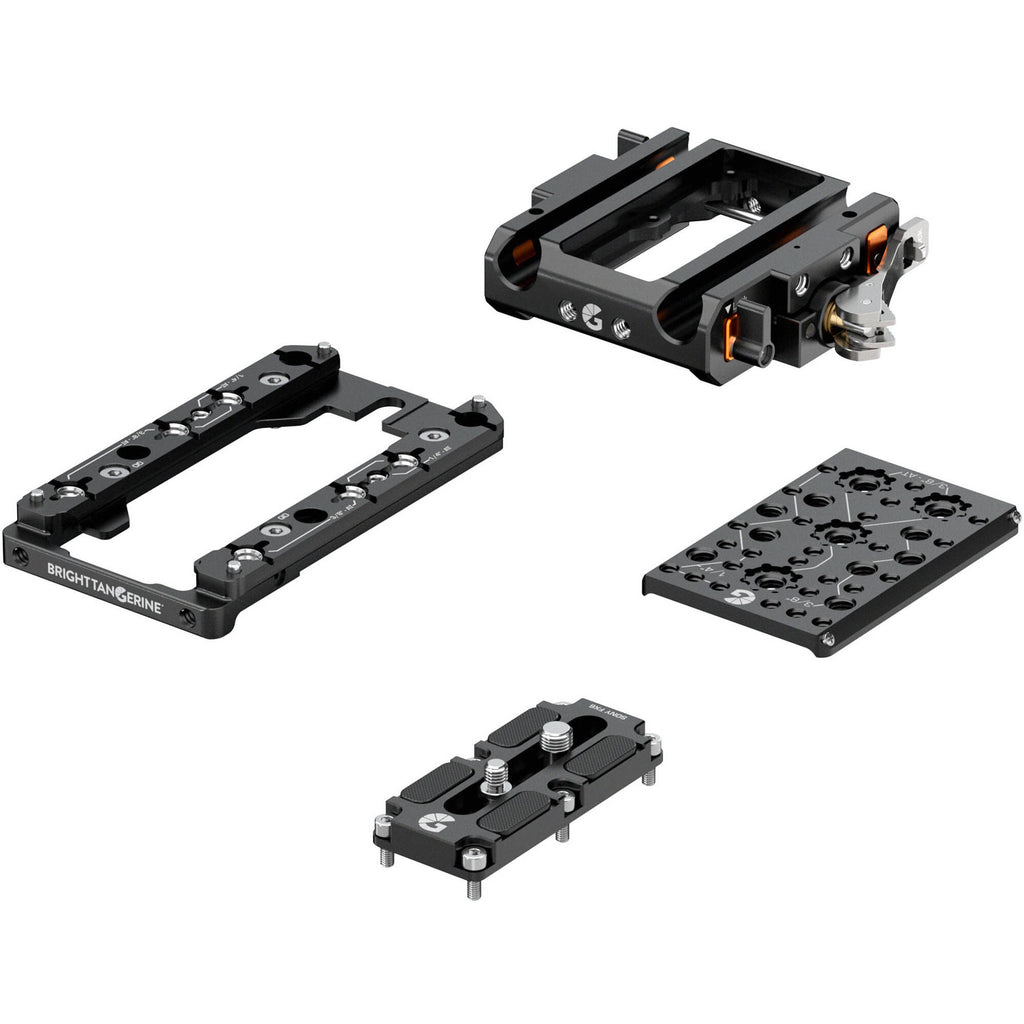

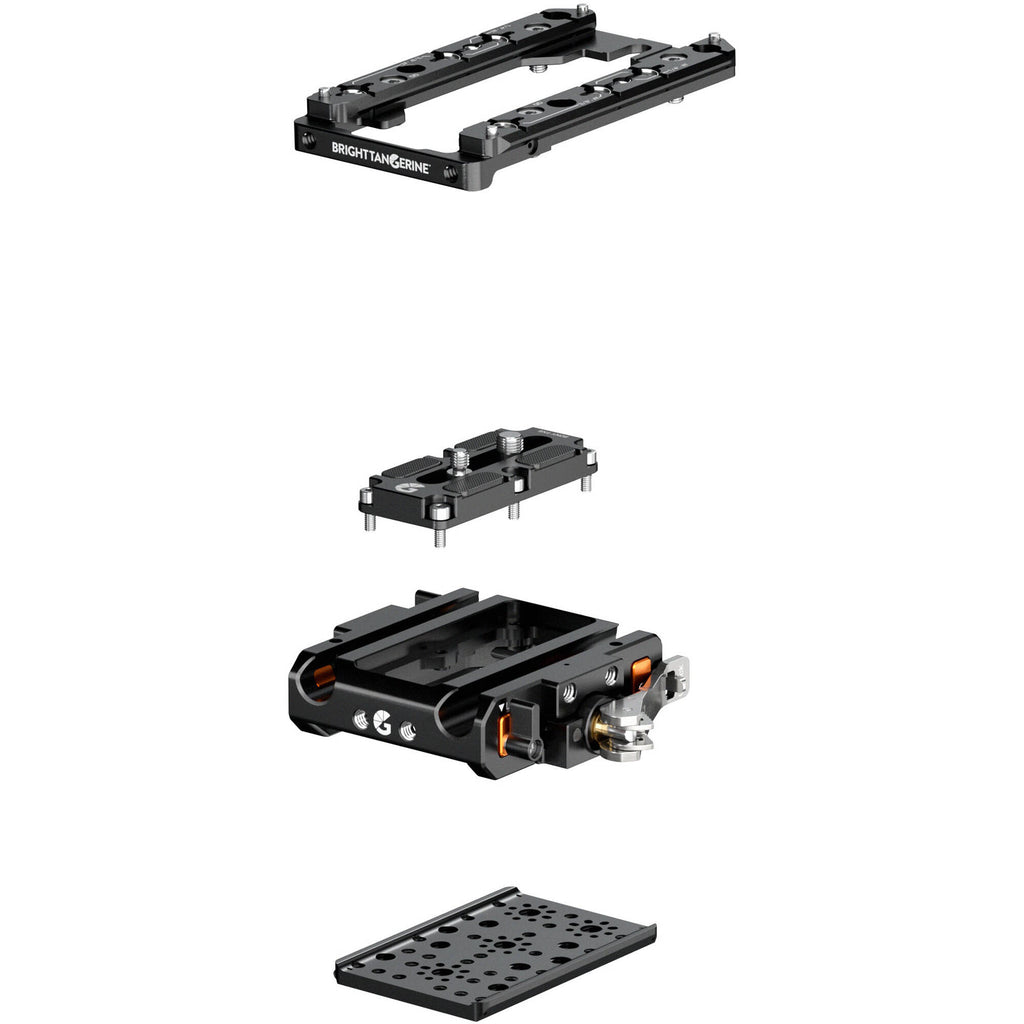

Support your Sony FX6 cinema camera on your shoulder or tripod rig and add accessories with this LeftField 3 Base Kit from Bright Tangerine. This base kit is made up of the LeftField 3 baseplate core, a lower ARRI-style dovetail plate, a top plate, and a Sony FX6 riser for LeftField baseplates. All the components are made from durable aluminum.
The LeftField 3 baseplate features the Bright Tangerine Open�Up quick release system, and it offers 15mm LWS rod ports for an optional rod system. The lower, low-profile dovetail plate features a standard ARRI dovetail and the top plate mounts around the top handle, offering more mounting options. The included riser allows you to mount the camera onto the rig to ensure your FX6 camera is at the proper 15mm LWS height.Expand the accessory mounting capabilities of your camera without stressing its body with the Bright Tangerine Top Plate II for Sony FX6. Simply attach this extremely versatile plate to the top of your FX6 camera to add two NATO rails with spring-loaded safety catches, multiple 3/8"-16 and 1/4"-20 threaded holes, with steel Heli-Coil inserts to prevent stripping, QD, and even two M5 threads on the front for attaching lens adapter supports to your camera. A relocating point allows you to attach clips for cable management.
The LeftField 3 15mm LWS Quick Release Baseplate Core from Bright Tangerine combines with different interchangeable Bright Tangerine riser blocks and dovetail plates for compatibility with multiple different cameras, tripods, and gimbals. The optional riser blocks provide the correct optical height for each camera and can be swapped in as needed.
The LeftField 3 Baseplate Core attaches to any ARRI-standard dovetail or the Bright Tangerine Left Field ARRI-Style Dovetail Plate. Using Bright Tangerine's Open�Up quick release system, it allows you to quickly switch between shoulder rigs, tripods, gimbals, and other camera supports such as the KASBAH shoulder pad. It also features a sliding, locking base that helps achieve optimal balance wherever you mount it.
The Baseplate Core provides front and rear 15mm LWS rod mounts for attaching accessories. Other LeftField components, such as side plates, supports, and grips can be attached to dedicated mounting threads to build up a full cage.
- Combines with interchangeable riser blocks for compatibility with different cameras
- ARRI-standard dovetail compatible
- Sliding base
- Front and rear 15mm LWS rod mounts
- LeftField side plates and other components supported, including KASBAH shoulder pad
- Multiple accessory mounts
The 4" Left Field ARRI-Style Dovetail Plate from Bright Tangerine is an ARRI-standard dovetail with multiple accessory mounts. When used with a separately available Left Field 15mm LWS Baseplate, the Dovetail Plate functions as a quick release plate.
This cheese plate can mount onto the top or bottom of your camera and incorporates multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts. The two removable safety screws can also be used to fix the plate onto your camera.
- Functions as a quick release plate when used with an optional Left Field 15mm LWS Baseplate
- Multiple 1/4"-20, 3/8"-16, and ARRI anti-twist accessory mounts
- ARRI-standard dovetail
- Removable safety screws
Ensure your Sony FX6 is at the correct optical height for the 15mm LWS rod standard with this Sony FX6 Riser from Bright Tangerine. The camera mounts onto the riser using captive 1/4"-20 and 3/8"-16 camera screws, and it then mounts onto the Left Field 15mm LWS Baseplate Core using the six included screws. The captive screws allow the camera to be quickly and easily removed from the baseplate.
Bright Tangerine Left Field 15mm LWS Baseplate Core
In the Box
- Bright Tangerine Top Plate II for Sony FX6
- Limited 2-Year Manufacturer Warranty
- Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core
- Limited 2-Year Manufacturer Warranty
- Bright Tangerine Left Field ARRI-Style Dovetail Plate
- 2 x Safety Screw
- Limited 5-Year Manufacturer Warranty
- Bright Tangerine Sony FX6 Riser for Left Field 15mm LWS Baseplate
- 6 x Baseplate Screw
- 1/4"-20 Screw
- 3/8"-16 Screw
- Limited 1-Year Warranty, 2-Year Total on Registration
- Description
- Bright Tangerine Top Plate II for Sony FX6
- Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core
- Bright Tangerine Left Field ARRI-Style Dovetail Plate
- Bright Tangerine Sony FX6 Riser for Left Field 15mm LWS Baseplate
Bright Tangerine Top Plate II for Sony FX6 Specs
| Compatibility |
Sony FX 6
|
| Mounting |
Top: 2 x NATO Rails
Top: 6 x 3/8"-16 Female Top: 4 x 1/4"-20 Female Top: 2 x Quick Detach (QD) Front: 2 x M5 Female |
| Dimensions |
5.7 x 3.4 x 0.7" / 14.5 x 8.7 x 1.9 cm
|
| Weight |
4.6 oz / 129 g
|
| Package Weight |
0.325 lb
|
| Box Dimensions (LxWxH) |
6.35 x 3.4 x 0.75"
|
Bright Tangerine LeftField 3 15mm LWS Quick Release Baseplate Core Specs
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Battery Plate Type |
No
|
| Accessory Mounting |
Multiple x 1/4"-20 Female Thread
|
| Camera Mounting |
Quick Release Plate
|
| Tripod Mounting |
ARRI Dovetail
|
| Rod Ports |
2 x 15 mm Rod Port
|
| Shoe Mounting |
No
|
| Rosettes |
No
|
| Support Type |
Baseplate
|
| Grip Type |
No
|
| Dimensions |
4.9 x 4.4 x 1.3" / 12.5 x 11.1 x 3.3 cm
|
| Weight |
11.2 oz / 317 g
|
| Package Weight |
0.725 lb
|
| Box Dimensions (LxWxH) |
5.8 x 5.35 x 1.95"
|
Bright Tangerine Left Field ARRI-Style Dovetail Plate Specs
| Mount Type |
Multiple:
1/4"-20 3/8"-16: ARRI accessory mounts |
| Dimensions |
3.9 x 2.6 x 0.3" / 10 x 6.7 x 0.8 cm
|
| Weight |
2.6 oz / 75 g
|
| Package Weight |
0.15 lb
|
| Box Dimensions (LxWxH) |
6 x 3.75 x 0.1"
|
Bright Tangerine Sony FX6 Riser for Left Field 15mm LWS Baseplate Specs
| Weight |
4.9 oz / 139 g
|
| Package Weight |
0.225 lb
|
| Box Dimensions (LxWxH) |
3.5 x 2.85 x 0.65"
|
