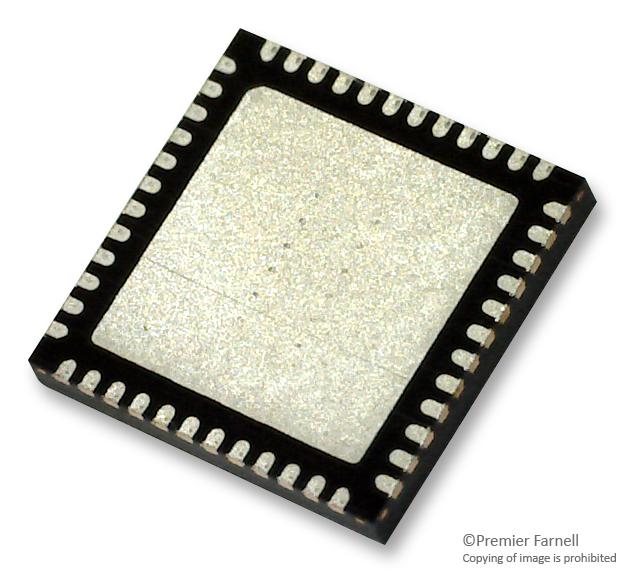

Bridgetek FT800Q-R FT800Q-R Embedded Graphic/Audio/Resistive Touch Engine 2.97 V to 3.63 VQFN-48

The FT800Q-R is a Display, Audio and Touch Controller, provides a powerful feature set to create dynamic HMI interfaces. The device supports line by line graphics rendering to 1/16 of a pixel on displays with resolution up to 512 x 512 with 262K colours. The chip includes a touch controller for sensing touch feedback from a TFT display with a resistive touch panel as well as a sound synthesizer and audio playback with a PWM output to drive a speaker.

• Single Chip for Display, Audio and Touch Control
• Up to 512 x 512 Pixel Resolution
• 262K Colours (6 Red, 6 Green, 6 Blue)
• Anti-aliasing
• 2-bit Colour Dither
• Programmable HSYNC/VSYNC Timing
• Backlight Control
• Resistive Touch Sense
• Objective Oriented Programming Approach
• Embedded Widgets to Assist with Creating Complex Images

• Mono Audio Output
• 64 In-built Polyphonic Tones
• Decode for mono 8-bit Linear PCM, 4-bit ADPCM and µ-Law coding format at frequencies from 8 to 48kHz
• SPI/I²C Interface to Host MCU
• 1.8 to 3.3V IO Levels to Host MCU
• 3V3 Levels on RGB Pins

Applications

Commercial, Computers & Computer Peripherals, Sensing & Instrumentation, Security, Imaging, Video & Vision, Communications & Networking, Consumer Electronics, Medical, Test & Measurement, Automation & Process Control
