BRESSER Science IVM 401 Overview
-
1Description
-
2Optical Design
-
3Inverted Transmitted Illumination
-
4Use and Handling
-
5Stage
-
6Construction Details

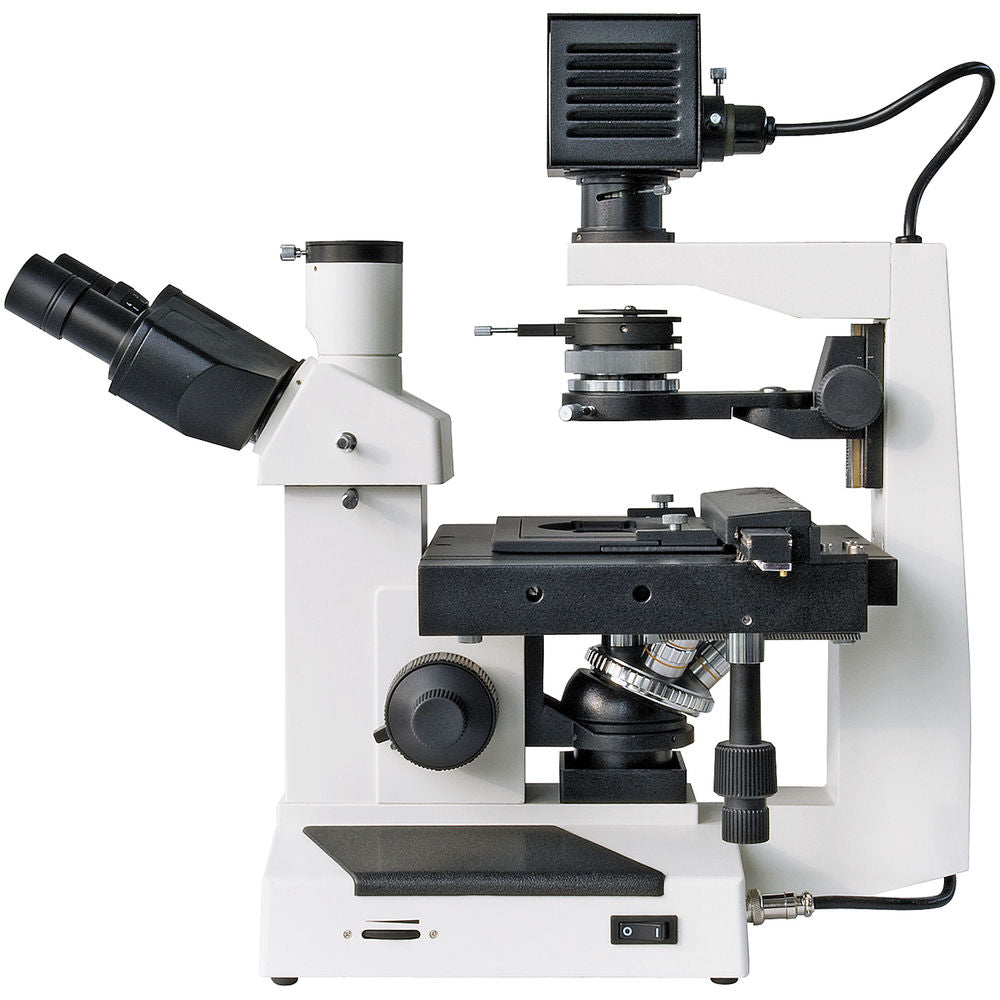

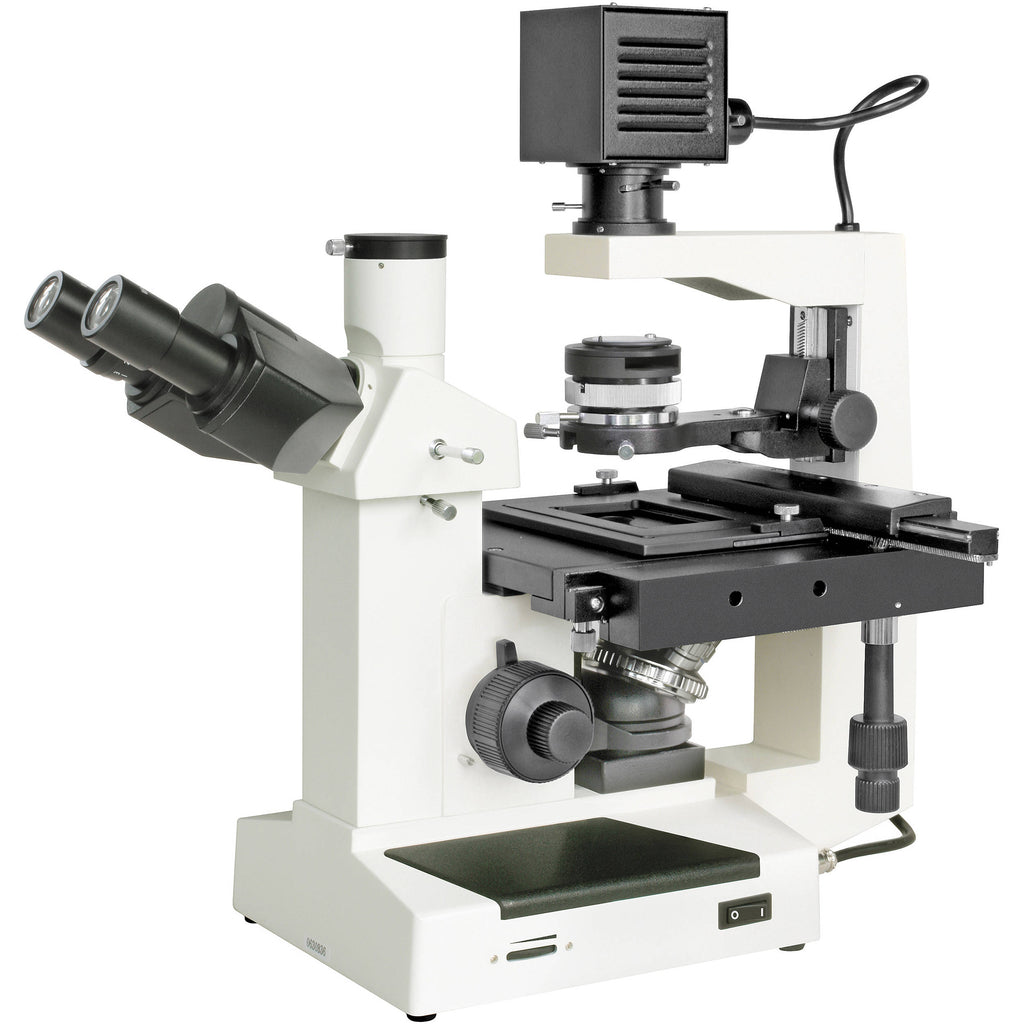

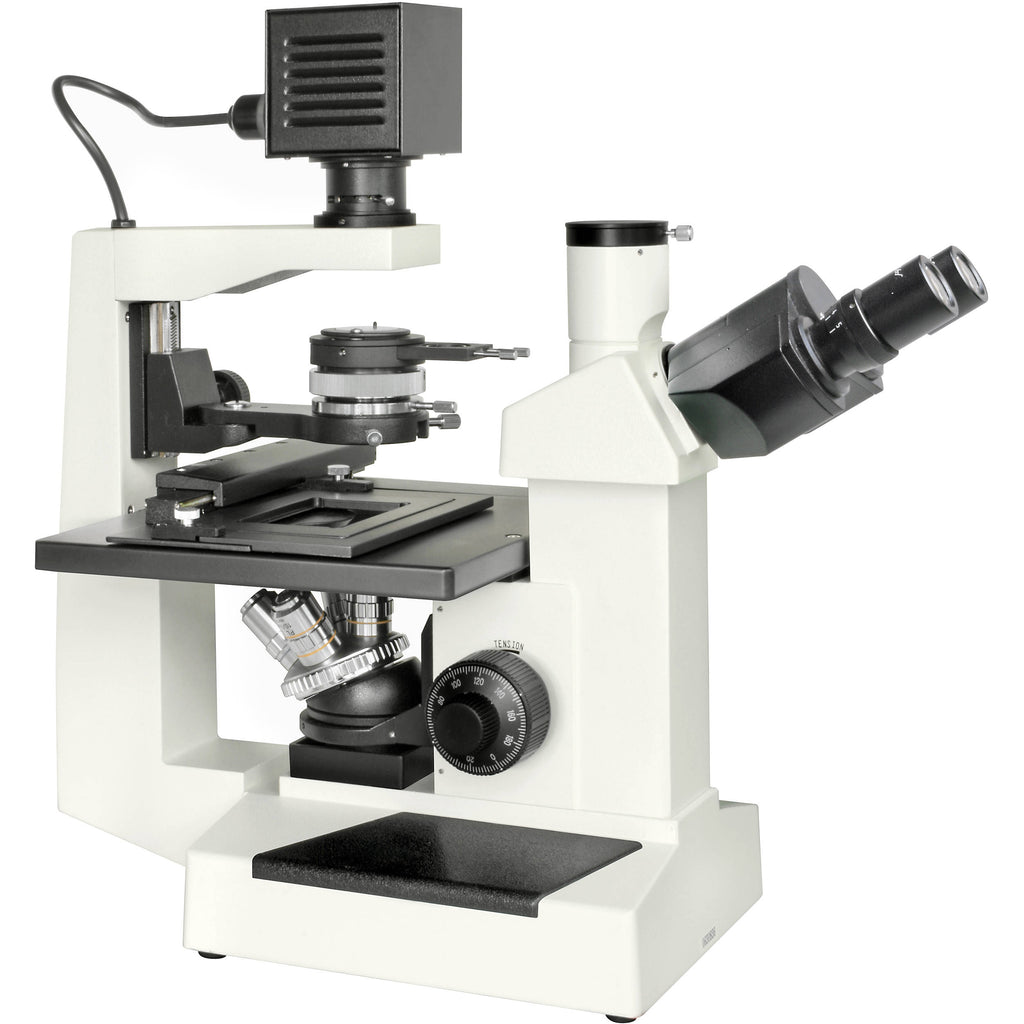

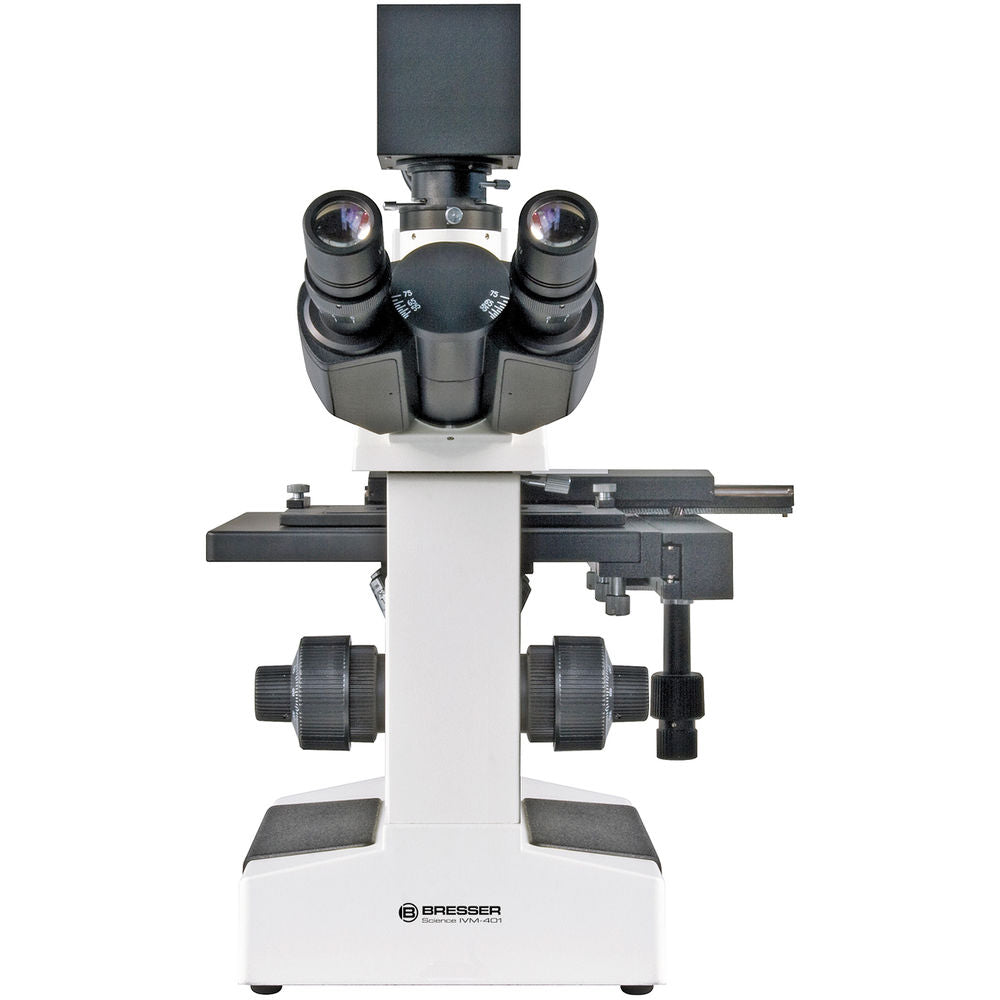

Employ the power of phase contrast microscopy using Bresser's Science IVM 401 Microscope. This fine and highly specialized instrument incorporates a phase contrast unit to allow you to reveal fine structure and detail of live transparent samples that are difficult to capture via conventional methods. Its inverted illumination configuration and long working distances of the objectives permit placing entire petri dishes into the tray of the precision stage for making observations. For phase contrast studies, this scope has a DIN 25x phase contrast (plan achromatic) objective and can be used with other optional phase contrast objectives of different powers. Also included are three plan achromatic objectives: 10x, 40x, and 25x. To ensure good visibility and image brightness, its illuminator features a 30W halogen lamp with adjustable brightness, a 1.25 NA Abbe condenser, an iris diaphragm, and a filter holder.
Another important aspect is a wide precision mechanical stage that can accommodate 2.6" (65mm) petri dishes and has a 4.4 x 3.1" range of motion in the horizontal plane. The focusing system highlights coarse and fine controls with 2µm minimum increments, a tension ring, and a stop knob. In order to take photos or videos of your discoveries, you will need to connect a camera to a third optical tube and switch from a viewing mode to a photo mode.
Optical Design
- For phase contrast microscopy of live and transparent samples
- Integrated phase contrast unit
- DIN, plan achromatic 10x, 25x, and 40x objectives
- DIN, phase contrast (plan achromatic) 25x objective

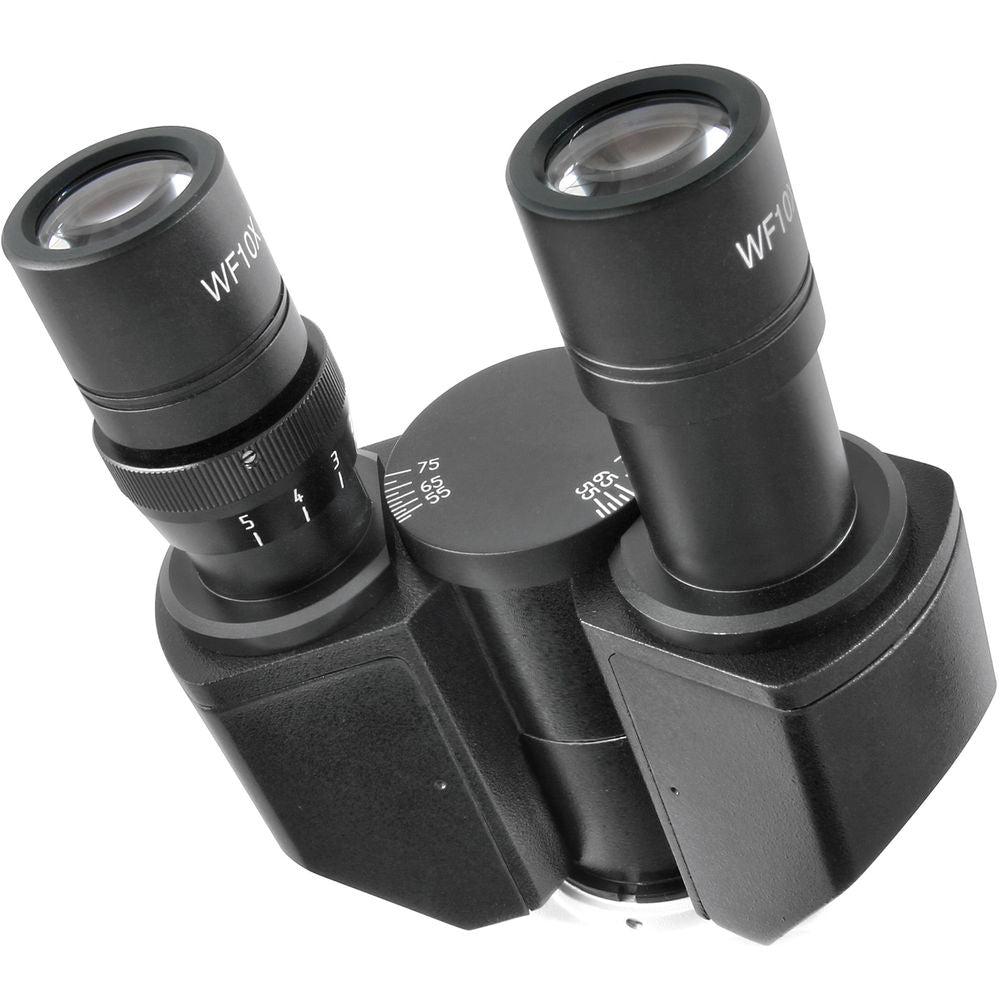

- Two widefield 10x eyepieces with 23.5mm tube diameters
- Objectives have long working distances
Inverted Transmitted Illumination
- 30W halogen lamp
- Adjustable brightness
- 1.25 NA Abbe condenser
- Iris diaphragm
- Filter holder
Use and Handling
- 30° inclined viewing
- Head offers some rotation
- Siedentopf interpupillary adjustment: 52.5-75mm
- Coarse and fine focusing
- Focus tension ring and stop knob
- Selectable viewing or photo modes
- Diopter adjustment

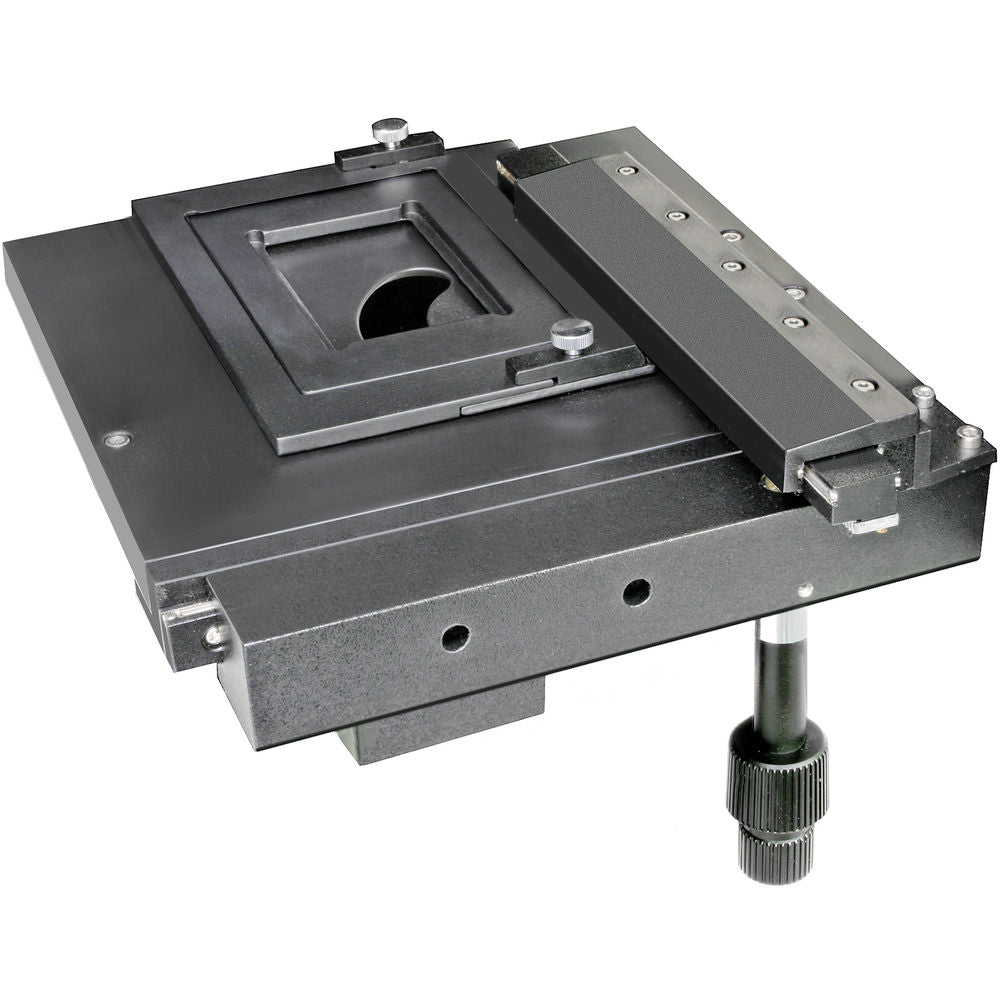

Stage
- Wide stage with a moving tray for 2.56" (65mm) petri dishes
- Two-axis coaxial Vernier motion control
- 4.4 x 3.1" motion range
- Two culture trays included
Construction Details
- Durable metal and plastic frame
- Wide stable base with rubber feet
- Ball-bearing nosepiece
- Knurled adjustment rings and levers
In the Box
- BRESSER Science IVM 401 Microscope (White)
- 10x Plan Objective
- 25x Plan Objective
- 40x Plan Objective
- 25x Plan Phase Objective
- Abbe Condenser
- 2 x 10x WF Eyepieces
- Immersion Oil
- Dust Cover
- Power Cable
- Limited 10-Year Warranty
Table of Contents
- Description
- Optical Design
- Inverted Transmitted Illumination
- Use and Handling
- Stage
- Construction Details
BRESSER Science IVM 401 Specs
| Head |
30° Inclined, Rotating Trinocular |
| Diopter Correction |
Not Specified by Manufacturer |
| Nosepiece |
4-Position Nosepiece |
Imaging
| Optical Magnification |
100x, 250x, 400x |
| Objective |
10x, 25x, 25x Phase Contrast, 40x |
| Eyepiece |
10x Wide Field |
| Eyepiece Tube Diameter |
0.9" / 23.2 mm |
| Focusing |
Coarse, Fine |
| Working Distance |
0.13 to 0.3" / 3.3 to 8.1 mm |
Illumination
| Illumination Type |
1 x Halogen |
| Dimmer |
Yes |
General
| Power |
100 VAC, 60 Hz |
| Dimensions |
L: 19.1 x W: 18.3 x H: 10.6" / L: 48.5 x W: 46.5 x H: 27.0 cm |
| Weight |
25.4 lb / 11.5 kg |
