Description
Boxlight 1000-00178 Overview
The Boxlight FrontRow IP Speaker Kit is a smart, scalable solution for delivering clear, networked audio to classrooms, offices, hallways, or shared campus spaces that don?t require two-way communication. Designed for seamless integration with the FrontRow Conductor platform, this kit enables effective school-wide paging, bells, and emergency alerts using your existing IT infrastructure?no separate audio wiring or power lines needed.

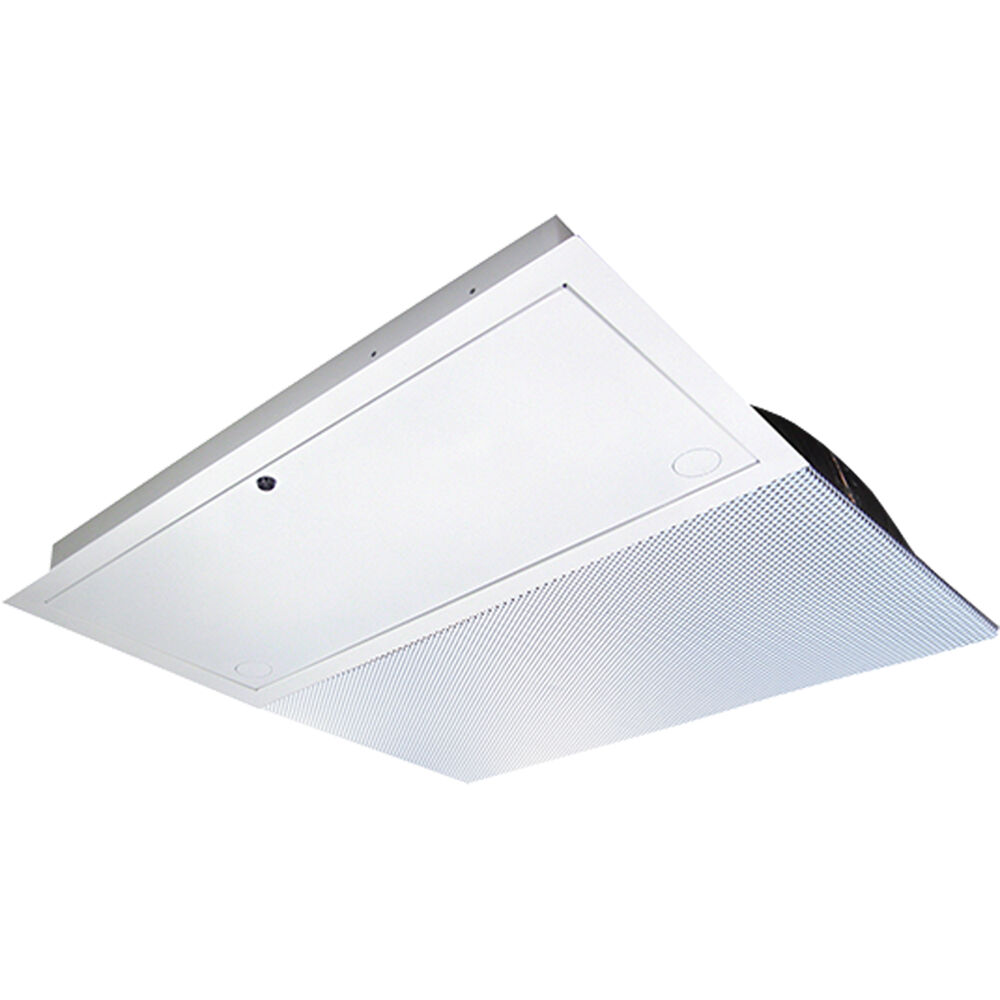

The system?s centerpiece is a 1 x 2 lay-in ceiling speaker housed in a plenum-rated metal enclosure that installs flush in standard 2 x 2 drop tile ceiling grids. Audio is powered by the included CM900 networked amplifier and 802.3at PoE extractor, allowing the speaker to operate entirely over Ethernet. This design simplifies installation, reduces cabling, and lowers total cost of ownership.
The kit is fully pre-wired, and a 12? speaker cable is already installed?saving time for IT and facilities teams. For larger rooms such as cafeterias, libraries, or multipurpose spaces, the system can be expanded to support up to four speakers total (external power supply required for additional speakers).
- Boxlight FrontRow IP Speaker Kit
- CM900 Networked Audio Controller
- 1 x 2' Ceiling Enclosure
- 1 x 2' Lay-In Ceiling Speaker
- PoE Extractor
- Limited 5-Year Manufacturer Warranty
No additional resources available
Boxlight 1000-00178 Specs
| Controller |
CM900 Networked Audio Controller
Inputs/Outputs: Input Power Jack PoE Power Jack 2-Pin Power Output Jack (12 V, 1 A) RJ45 Network Jack RJ45 LAN In Jack RJ45 Intercom Input Jack RJ45 CLAN Power Port for CB2000/CB6000 2 x 3.5 mm Unbalanced Input 3.5 mm Configurable Balanced/Unbalanced Input 3.5 mm Audio Output Jack (Unbalanced) Captive Screw Loudspeaker Terminal Left and Right 3.5 mm IR Control Terminal 2 x RS-232 Serial Control Relay Output Page Override Detect Alarm Detect |
| Speaker |
1 x 2' Lay-in Ceiling Speaker
Average Sensitivity: 92 dBSPL 1W/1M Speaker Type: 8" Full Range Cone Impedance: 8 Ohms Nominal Loudspeaker Power Rating: 12 W (RMS) EIA 426A Standard Calculated Maximum System Output: 103 dBSPL, 12 W / 1 M Magnet Type: 4.8 oz BeFe Ceramic Size (WxHxD): 11.81 X 12.81 x 3.81" / 29.9 x 32.5 x 9.7 cm Frequency Response: 65 Hz to 17 kHz EIA 426A Standard Nominal Coverage Angle: 100? Included Angle -6 dB / 2 kHz Half Space Audio Connection: Pre-Cut 7" / 17.8 cm Mounting: Replaces Existing Ceiling Tile, Mounts in Tile Grid, Built for Plenum Space |
| Ceiling Closure |
1 x 2' Ceiling Enclosure
Dimensions (WxHxD): 23.75 x 12 x 2.5" / 60.3 x 30.5 x 6.4 cm Weight: 9 lb / 4.08 kg |
| PoE |
POE Extractor
Network Support: 10/100/1000 Mb/s Power Output: 12 VDC at 1.75 A POE Standard: IEEE 802.3at POE Protection: OCP, OTP, OVP, SCP Power: 21 W per Port |
