Description

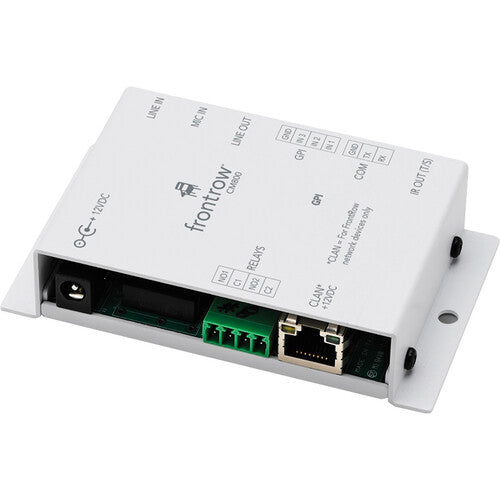

Boxlight 1000-00129 Overview
Designed primarily to connect between the Calypso Conductor IP communication system and typical 70V amps and speakers, the Boxlight CM800 is a versatile device that can convert 8 kHz sampled audio to line-level audio or line-level input, at up to 48 kHz output. Ideal for classrooms, cafeterias, workplaces, and more, the CM800 serves as a bridge between analog and digital paging systems.
The CM800 features a plethora of connectivity to serve a variety of roles, including a serial COM port, GPI, and GPO connectivity on block connectors, as well as analog I/O via 3.5mm TRS jacks. When analog input is provided, the system automatically detects it and proceeds to mix, sample, and playback the audio at 48 kHz. With this capability, and the use of the integrated RJ45 Ethernet port, the CM800 can convert analog paging systems into fully integrated IP-based systems, or vice versa. Configuration and control is easy and convenient via the browser-based user interface.
- 3.5mm TRS jacks for line-level and mic-level analog audio input
- 3.5mm TRS line output jack
- 3-pin block terminal for serial COM duties
- 4-pin block terminals for GPI and GPO connections
- RJ46 Ethernet port for IP-based communication
- 3.5mm output for IR sensors
- Boxlight CM800 Networked Audio Decoder/Controller
- Limited 3-Year Manufacturer Warranty
Boxlight 1000-00129 Specs
| Compatibility |
Calypso Systems Conductor
|
| Audio I/O |
1x RJ45 Coaxial Input/Output (Ethernet)
1x Block 3-Pin Input/Output (Serial COM Port) 1x 1/8" / 3.5 mm TRS Mic Input 1x 1/8" / 3.5 mm TRS Line Input 1x Block 4-Pin Input (GPI) 1x 1/8" / 3.5 mm TRS Line Output 1x 1/8" / 3.5 mm Output (IR) 1x Block 4-Pin Output (GPO) |
| Power Source |
AC Adapter with Power Brick
|
| DC Input Power |
12 VDC
|
| Mounting |
2x Screw Hole
|
| Color |
White
|
| Dimensions |
3.84 x 2.5 x 0.91" / 9.75 x 6.3 x 2.31 cm
|
