Description

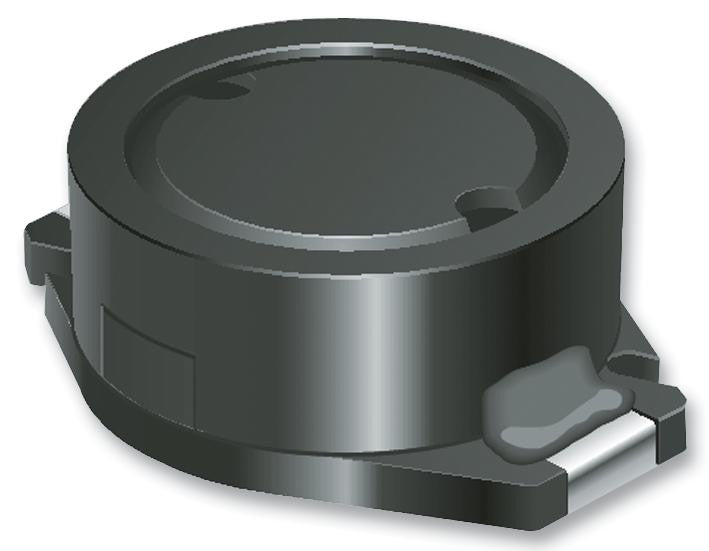

This is a Surface Mount Power Inductor, SRR6603 Series, 10 µH, 1 A, 370 mA, Shielded, 0.075 ohm product from BOURNS with the model number SRR6603-100ML
Product details
| Inductance Tolerance | ± 20% |
| RMS Current (Irms) | 1A |
| Saturation Current (Isat) | 370mA |
| Power Inductor Case | 6.6mm x 4.4mm x 3mm |
| Inductance | 10µH |
| Inductor Construction | Shielded |
| Product Range | SRR6603 Series |
| DC Resistance Max | 0.075ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR6603-100ML |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
