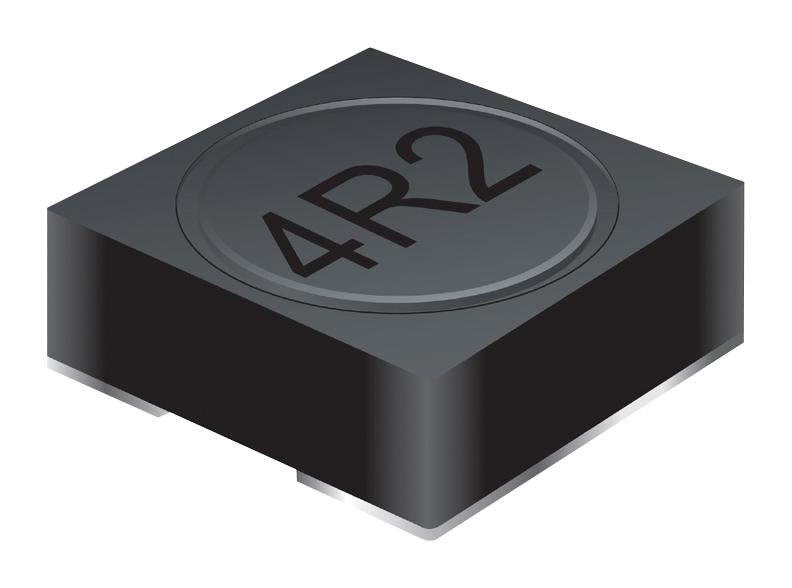

This is a Power Inductor (SMD), 4.2 µH, 2.5 A, Shielded, 2.2 A, SRR5028 Series, 5.8mm x 5.8mm x 2.8mm product from BOURNS with the model number SRR5028-4R2Y
Product details
| Inductance |
4.2µH |
| RMS Current (Irms) |
2.5A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
2.2A |
| Product Range |
SRR5028 Series |
| Power Inductor Case |
5.8mm x 5.8mm x 2.8mm |
| DC Resistance Max |
0.035ohm |
| Inductance Tolerance |
± 30% |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
BOURNS |
| Part Number |
SRR5028-4R2Y |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
