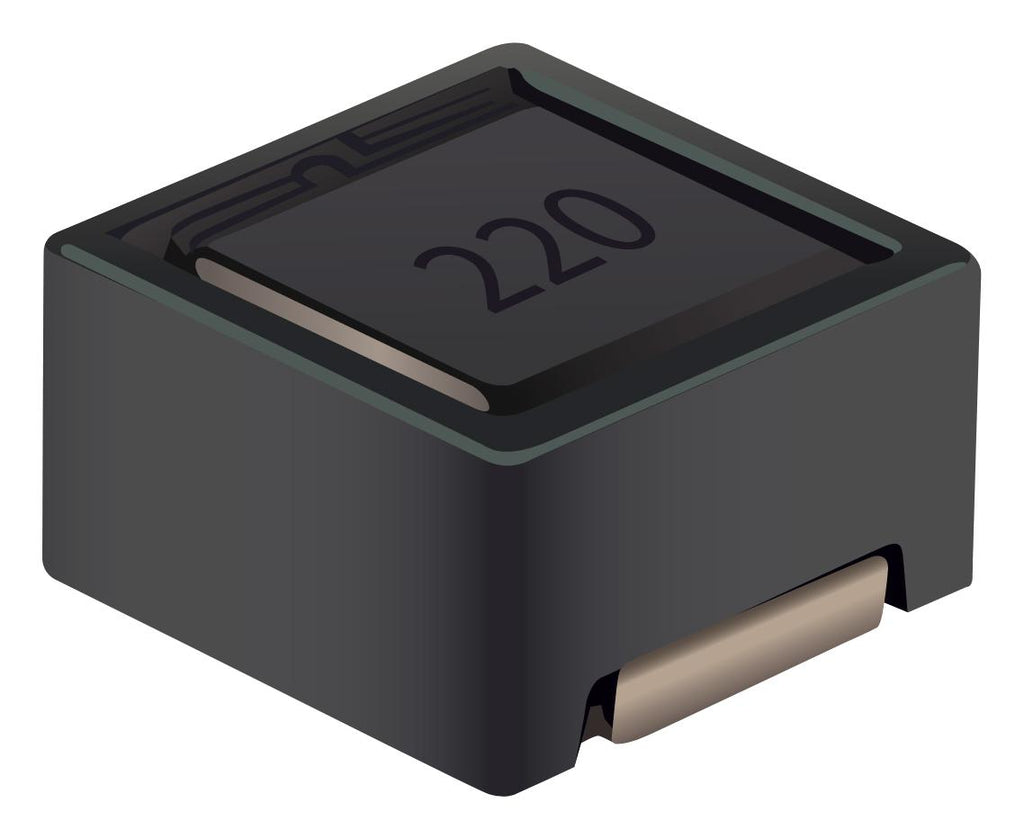

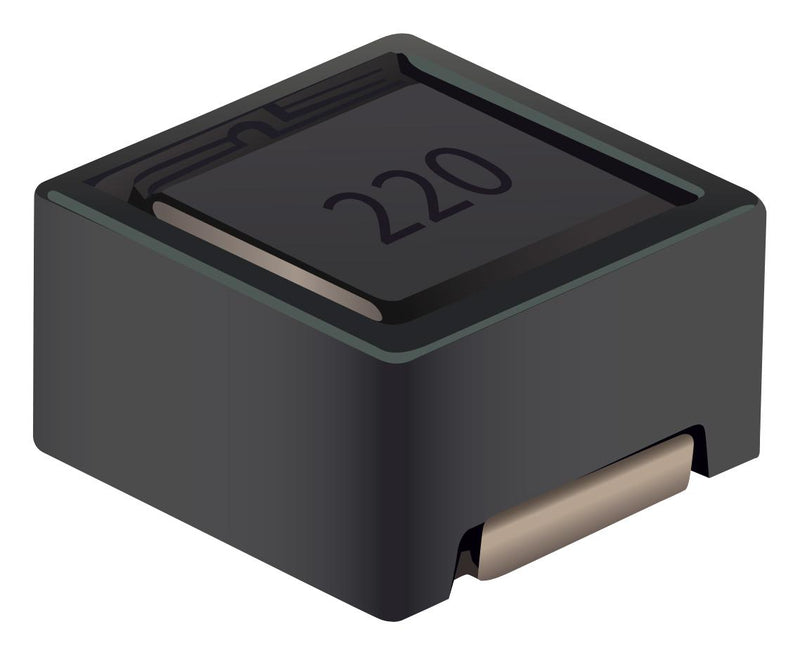

This is a Power Inductor (SMD), 100 µH, 700 mA, Shielded, 330 mA, SRR4828A Series, 4.8mm x 4.8mm x 2.8mm product from BOURNS with the model number SRR4828A-101M
Product details
| Inductance |
100µH |
| RMS Current (Irms) |
700mA |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
330mA |
| Product Range |
SRR4828A Series |
| Power Inductor Case |
4.8mm x 4.8mm x 2.8mm |
| DC Resistance Max |
0.6ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
BOURNS |
| Part Number |
SRR4828A-101M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
