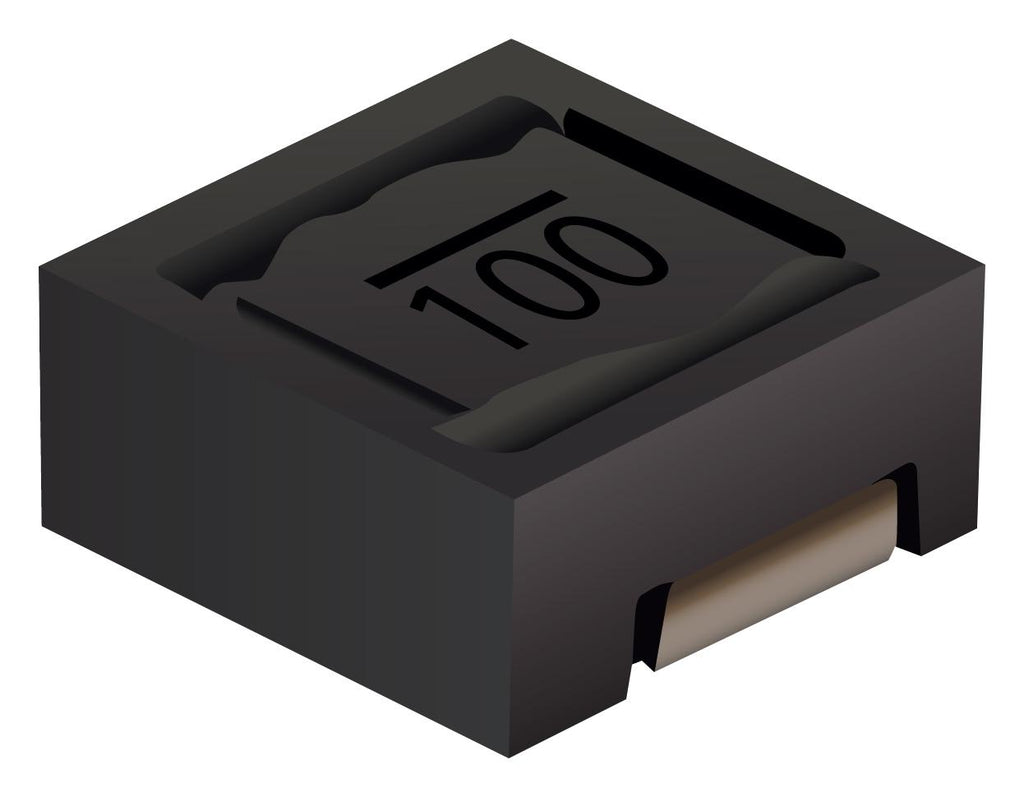

This is a Power Inductor (SMD), 15 µH, 1.05 A, 550 mA, SRR3818A Series, 3.8mm x 3.8mm x 1.8mm, Shielded product from BOURNS with the model number SRR3818A-150M
Product details
| Inductance |
15µH |
| RMS Current (Irms) |
1.05A |
| Saturation Current (Isat) |
550mA |
| Product Range |
SRR3818A Series |
| Power Inductor Case |
3.8mm x 3.8mm x 1.8mm |
| Inductor Construction |
Shielded |
| DC Resistance Max |
0.34ohm |
| Inductance Tolerance |
± 20% |
| Packaging |
Cut Tape |
Other details
| Brand |
BOURNS |
| Part Number |
SRR3818A-150M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
