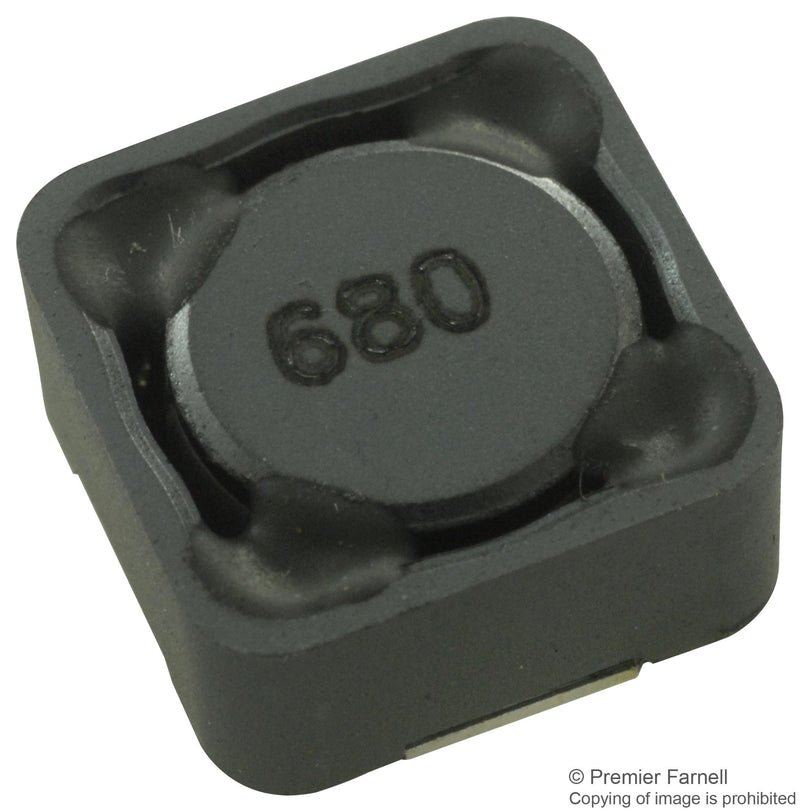

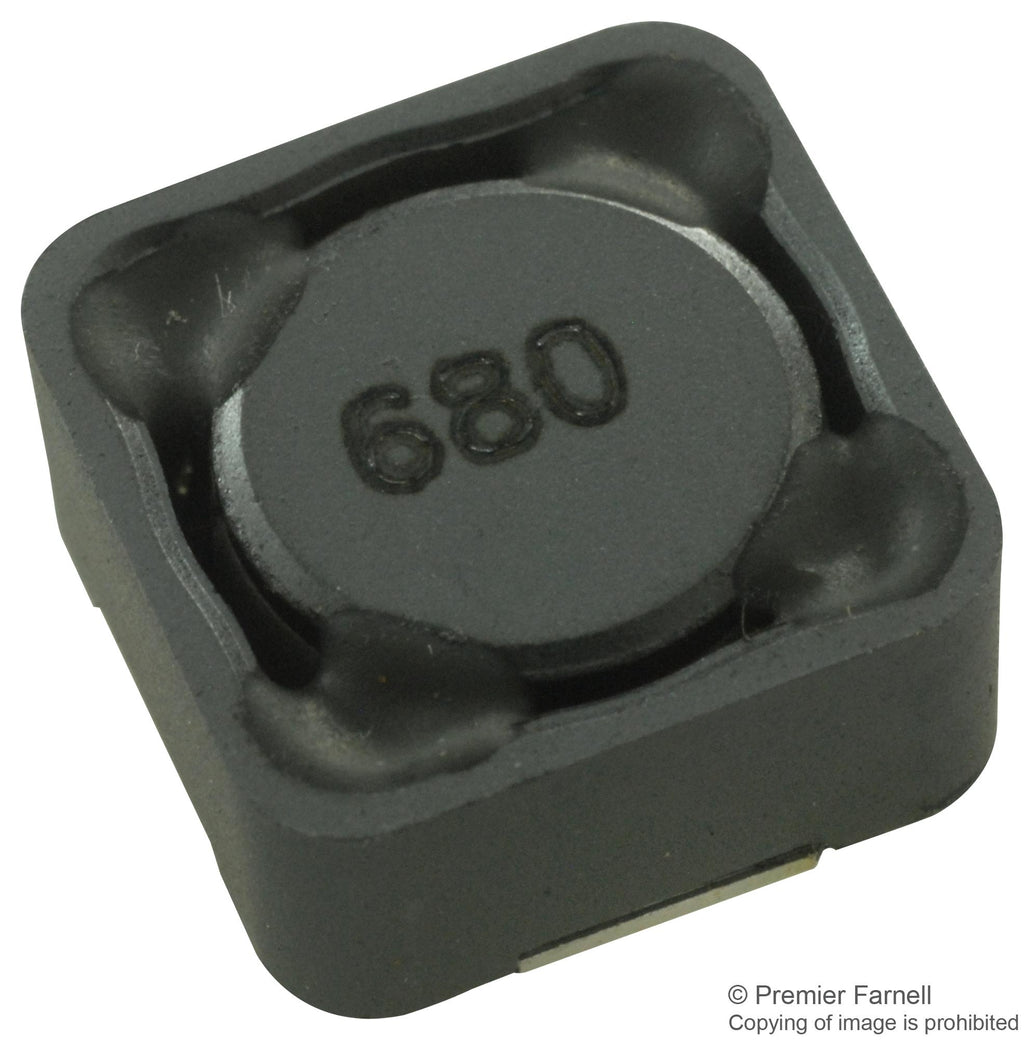

The SRR1260-680M is a surface mount shielded Power Inductor with ferrite DR and RI core. This SRR1260 series inductor features enamelled copper wire 130 and Cu/Ni/Sn terminals. Supports 100kHz frequency and ±20% inductance tolerance.
- Available in E12 values
- 0.1V Test voltage
Applications
Power Management, Consumer Electronics, Portable Devices, Communications & Networking
Product details
| Inductance |
68µH |
| RMS Current (Irms) |
2.1A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
2.1A |
| Product Range |
SRR1260 Series |
| Power Inductor Case |
12.5mm x 12.5mm x 6mm |
| DC Resistance Max |
0.11ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
BOURNS |
| Part Number |
SRR1260-680M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| 3D Product Image EN |
|
