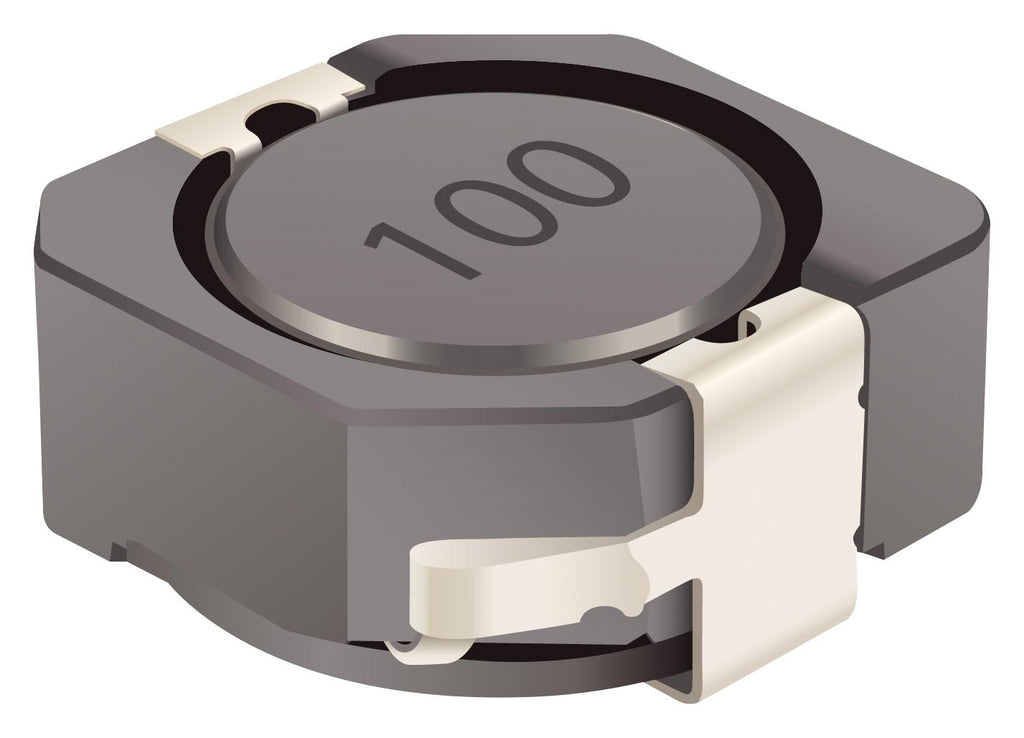

The SRR1050A-470Y from Bourns is a SRR1050A series SMD shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting, DC to DC converters, power supplies.
- Automotive grade AEC-Q200 qualified
- Inductance is 47µH at 1MHz/1V
- Tolerance is ±30%
- DCR (DC resistance of inductor) is 0.094mohm (±20%)
- Maximum RMS current (Irms) is 2A
- Maximum saturation current (Isat) is 2A
- Ferrite core, enamelled copper wire and Sn terminal finish
- Operating temperature range from -40°C to 125°C
- Dimension is 10.2mm x 10mm x 4.8mm
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
BOURNS |
| Part Number |
SRR1050A-470Y |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
| 3D Product Image EN |
|
