Description

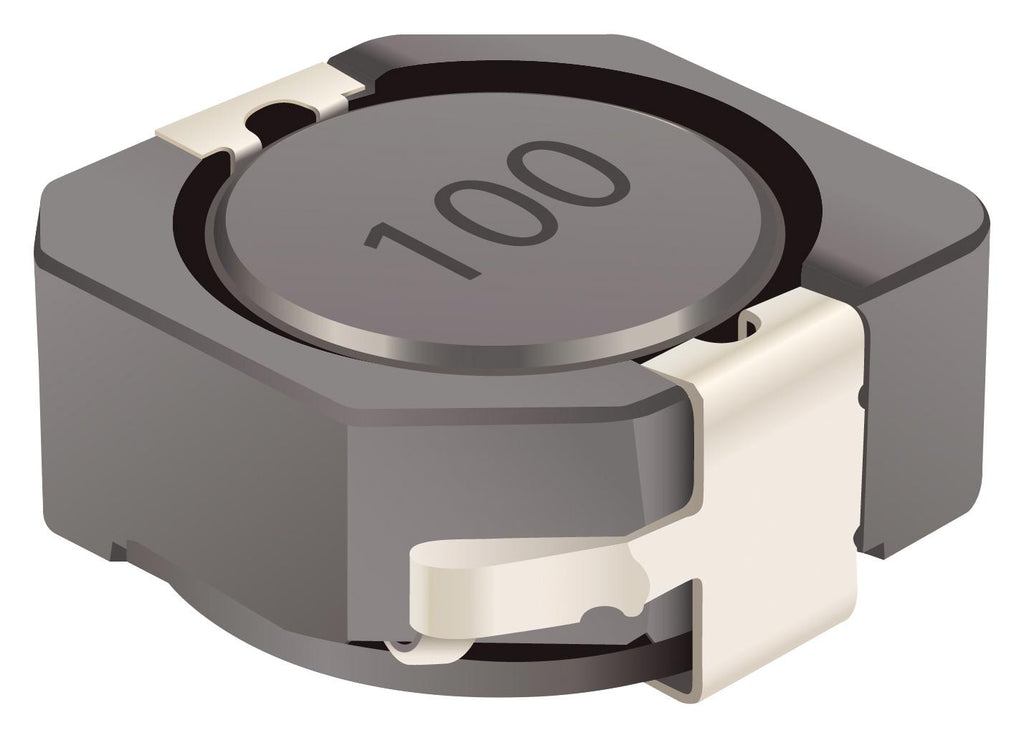

This is a Surface Mount Power Inductor, AEC-Q200, SRR1050A Series, 15 µH, 3.4 A, 3.6 A, Shielded, 0.047 ohm product from BOURNS with the model number SRR1050A-150Y
Product details
| Power Inductor Case | 10mm x 10.2mm x 4.8mm |
| DC Resistance Max | 0.047ohm |
| Saturation Current (Isat) | 3.6A |
| Packaging | Cut Tape |
| Inductance Tolerance | ± 30% |
| Product Range | SRR1050A Series |
| RMS Current (Irms) | 3.4A |
| Inductance | 15µH |
| Inductor Construction | Shielded |
Other details
| Brand | BOURNS |
| Part Number | SRR1050A-150Y |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
