Description

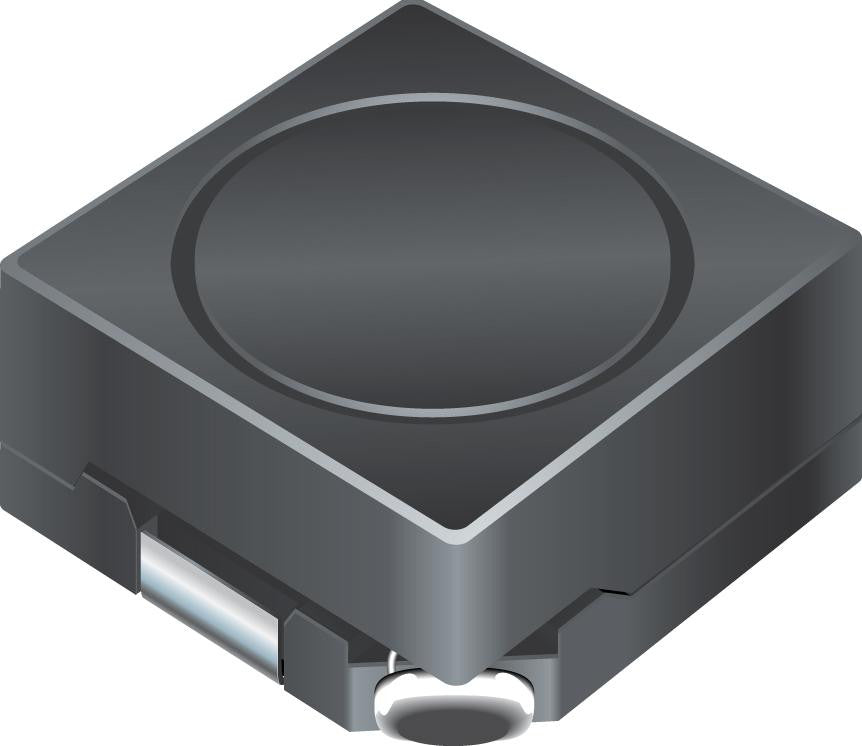

This is a Surface Mount Power Inductor, SRR0603 Series, 3.3 µH, 1.8 A, 2.6 A, Shielded, 0.055 ohm product from BOURNS with the model number SRR0603-3R3ML
Product details
| Inductance Tolerance | ± 20% |
| RMS Current (Irms) | 1.8A |
| Saturation Current (Isat) | 2.6A |
| Power Inductor Case | 6.5mm x 6.5mm x 3.3mm |
| Inductance | 3.3µH |
| Inductor Construction | Shielded |
| Product Range | SRR0603 Series |
| DC Resistance Max | 0.055ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR0603-3R3ML |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
