Description

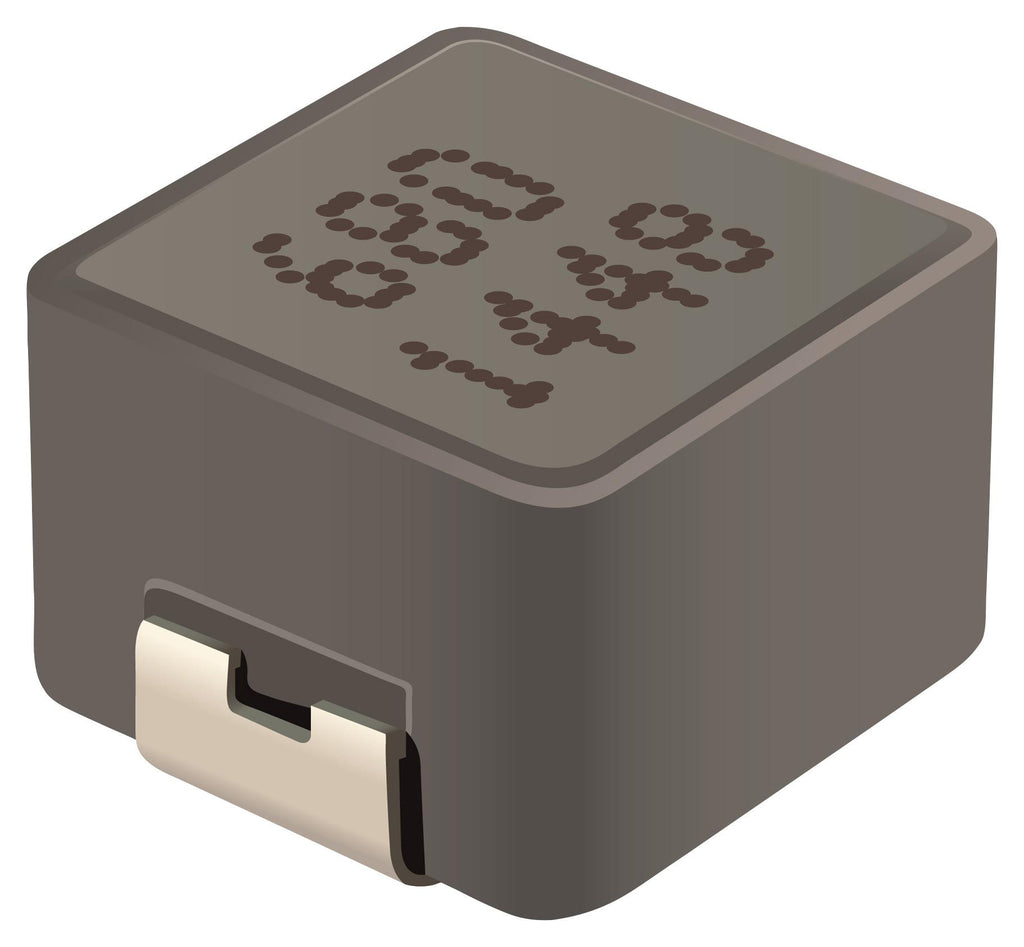

This is a Surface Mount Power Inductor, SRP7050TA Series, 10 µH, 4 A, 7.5 A, Shielded, 0.069 ohm product from BOURNS with the model number SRP7050TA-100M
Product details
| Product Range | SRP7050TA Series |
| Inductance | 10µH |
| RMS Current (Irms) | 4A |
| Saturation Current (Isat) | 7.5A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.069ohm |
| Power Inductor Case | 7.3mm x 6.6mm x 4.8mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRP7050TA-100M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
