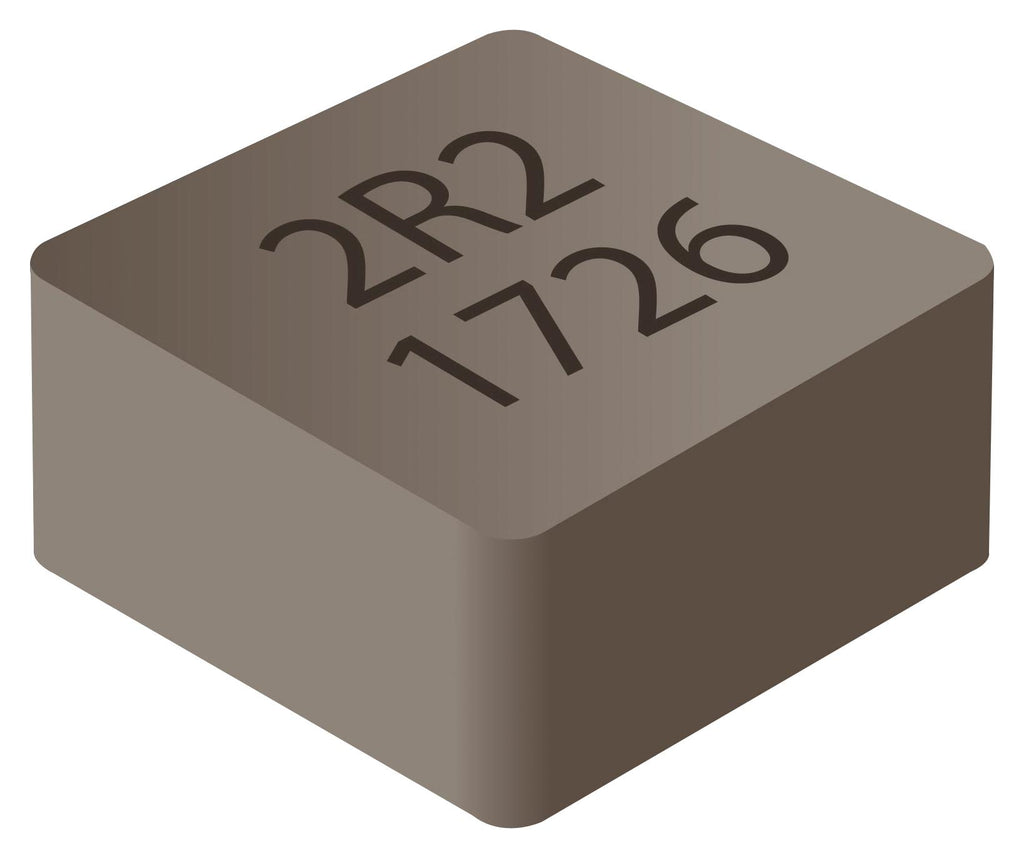

This is a Power Inductor (SMD), 2.2 µH, 10 A, Shielded, 15.9 A, SRP6030CA Series, 6.6mm x 6.4mm x 2.9mm product from BOURNS with the model number SRP6030CA-2R2M
Product details
| Inductance |
2.2µH |
| RMS Current (Irms) |
10A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
15.9A |
| Product Range |
SRP6030CA Series |
| Power Inductor Case |
6.6mm x 6.4mm x 2.9mm |
| DC Resistance Max |
0.0122ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
BOURNS |
| Part Number |
SRP6030CA-2R2M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
