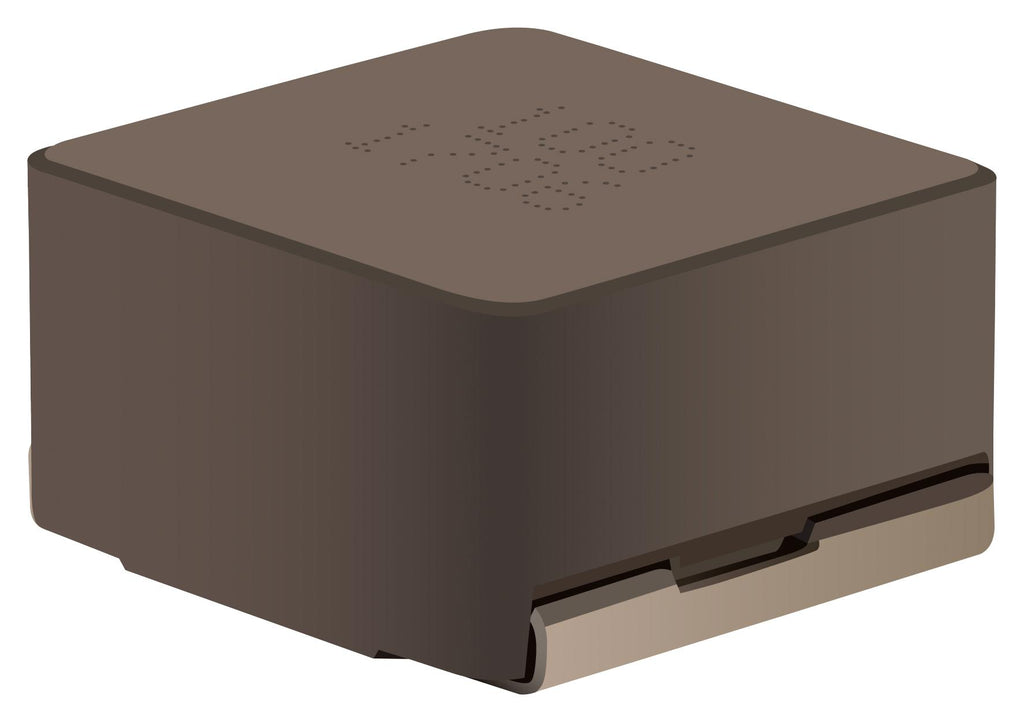

This is a Power Inductor (SMD), 4.7 µH, 44 A, 34 A, SRP2313AA Series, 23.5mm x 22mm x 12.6mm, Shielded product from BOURNS with the model number SRP2313AA-4R7M
Product details
| Inductance |
4.7µH |
| RMS Current (Irms) |
44A |
| Saturation Current (Isat) |
34A |
| Product Range |
SRP2313AA Series |
| Power Inductor Case |
23.5mm x 22mm x 12.6mm |
| Inductor Construction |
Shielded |
| DC Resistance Max |
0.0022ohm |
| Inductance Tolerance |
± 20% |
| Packaging |
Cut Tape |
Other details
| Brand |
BOURNS |
| Part Number |
SRP2313AA-4R7M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
