Description

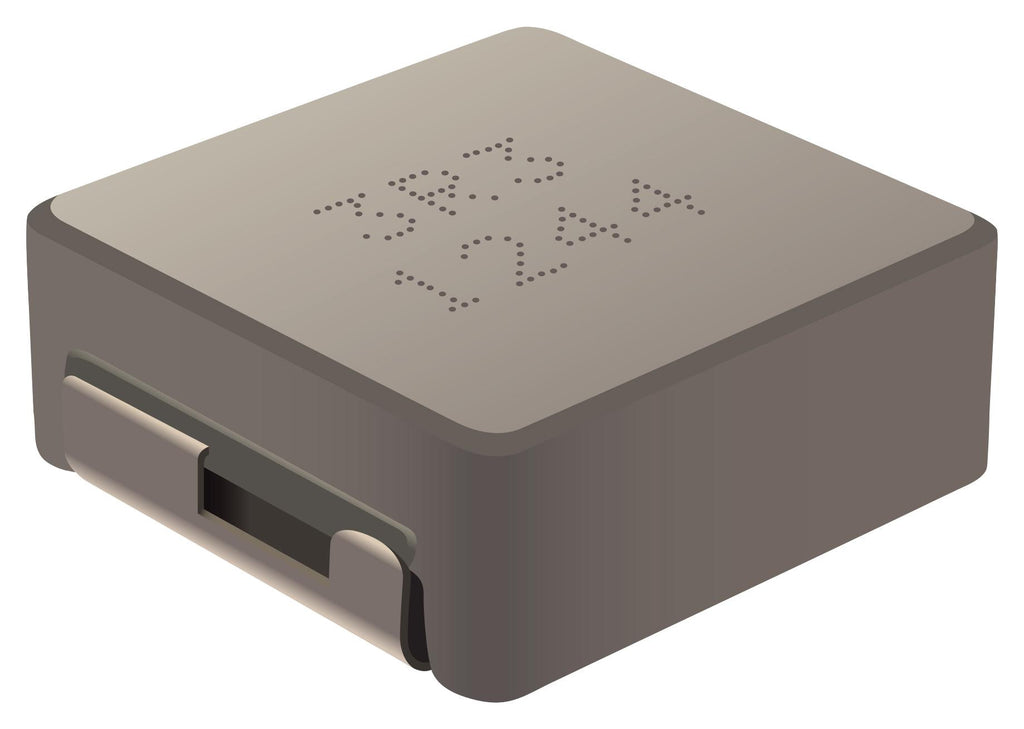

This is a Surface Mount Power Inductor, SRP1770TA Series, 1 µH, 52 A, 70 A, Shielded, 0.002 ohm product from BOURNS with the model number SRP1770TA-1R0M
Product details
| Product Range | SRP1770TA Series |
| Inductance | 1µH |
| RMS Current (Irms) | 52A |
| Saturation Current (Isat) | 70A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.002ohm |
| Power Inductor Case | 16.9mm x 16.9mm x 6.7mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRP1770TA-1R0M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
