Description

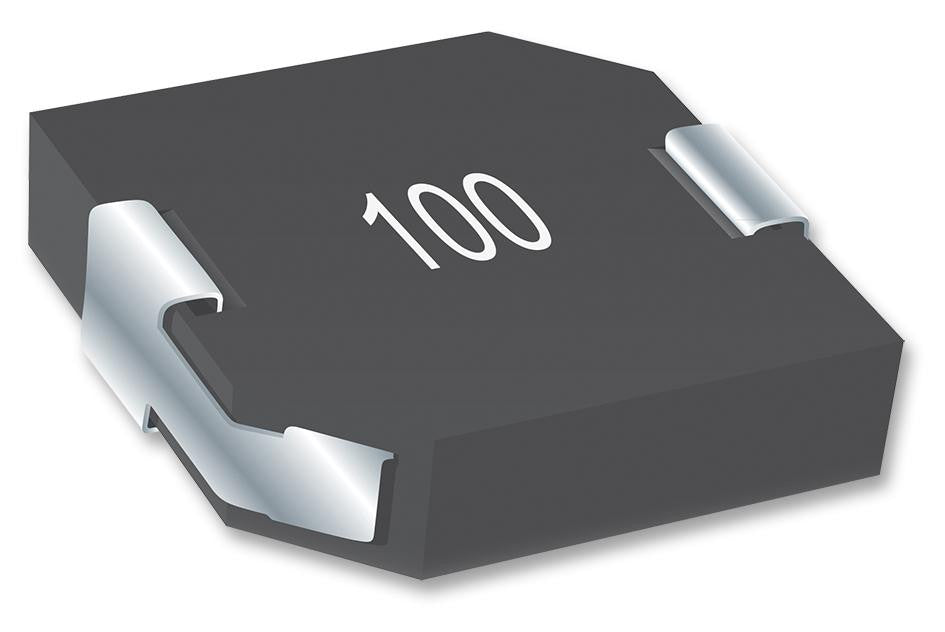

This is a Surface Mount Power Inductor, SRP1250 Series, 9 µH, 10 A, 18 A, Shielded, 0.0225 ohm product from BOURNS with the model number SRP1250-9R0M
Product details
| Product Range | SRP1250 Series |
| Inductance | 9µH |
| RMS Current (Irms) | 10A |
| Saturation Current (Isat) | 18A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.0225ohm |
| Power Inductor Case | 13.9mm x 13.5mm x 5.9mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRP1250-9R0M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
