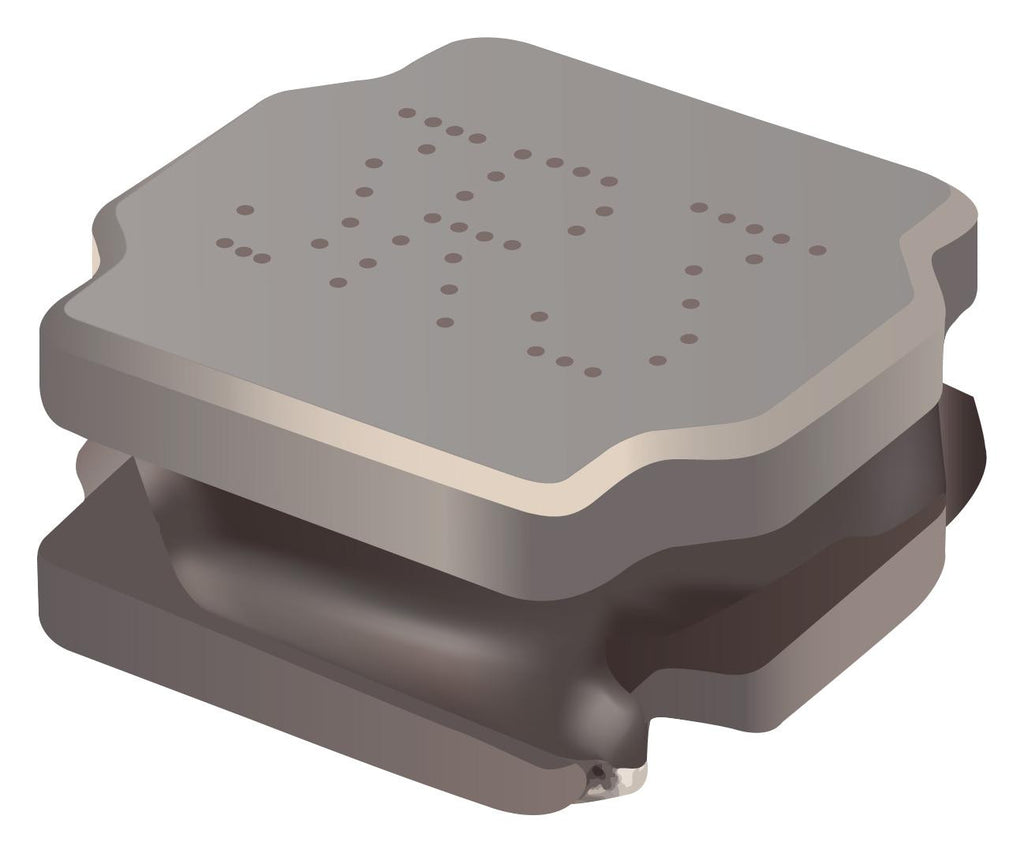

This is a Surface Mount Power Inductor, AEC-Q200, SRN8040TA Series, 56 µH, 1.75 A, 1.9 A, Semishielded product from BOURNS with the model number SRN8040TA-560M
Product details
| Power Inductor Case |
8mm x 8mm x 3.7mm |
| DC Resistance Max |
0.16ohm |
| Saturation Current (Isat) |
1.9A |
| Packaging |
Cut Tape |
| Inductance Tolerance |
± 20% |
| Product Range |
SRN8040TA Series |
| RMS Current (Irms) |
1.75A |
| Inductance |
56µH |
| Inductor Construction |
Semishielded |
Other details
| Brand |
BOURNS |
| Part Number |
SRN8040TA-560M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
