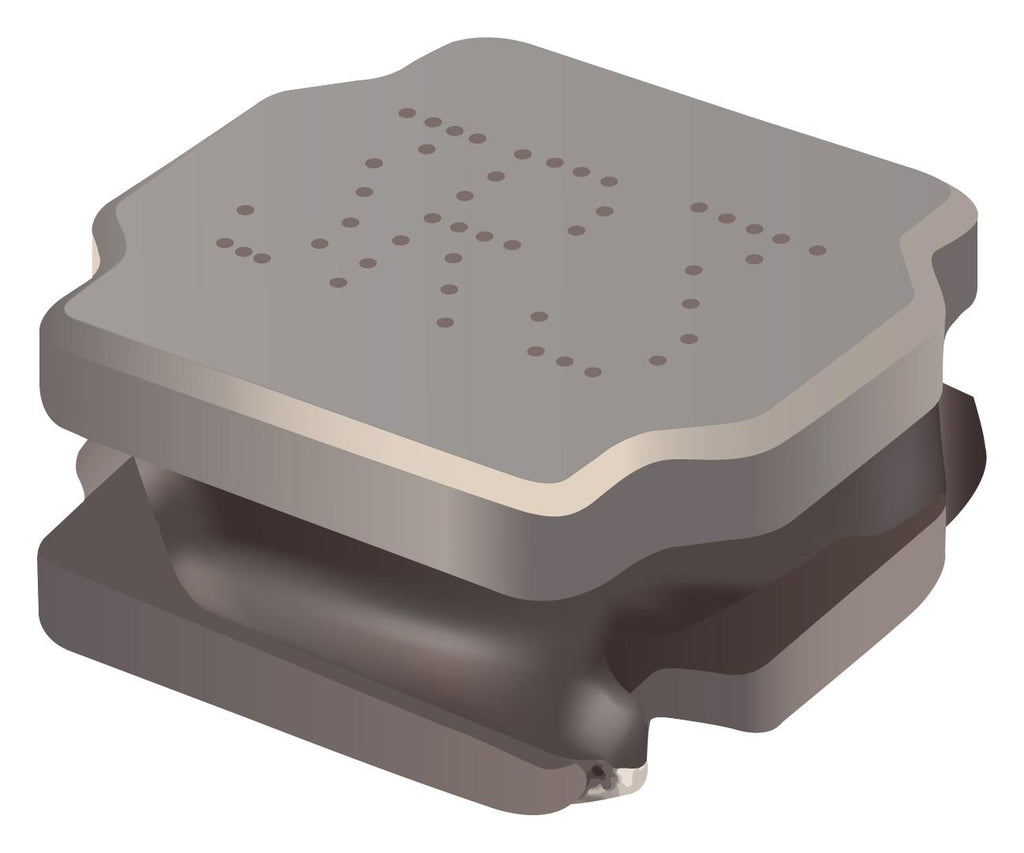

The SRN8040TA-2R2Y from Bourns is a SRN8040TA series SMD semi shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting, DC to DC converters, power supplies, digital video cameras, HDDs, smartphones, televisions and LCD displays.
- Automotive grade AEC-Q200 qualified
- Inductance is 2.2µH at 1MHz/1V
- Tolerance is ±30%
- DCR (DC resistance of inductor) is 11.5mohm (±20%)
- Maximum RMS current (Irms) is 7.4A
- Maximum saturation current (Isat) is 9.8A
- Ferrite core, enamelled copper wire and Sn terminal finish
- Operating temperature range from -55°C to 125°C
- Dimension is 8mm x 8mm x 3.7mm
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
BOURNS |
| Part Number |
SRN8040TA-2R2Y |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
| Product Change Notice EN |
|
