Description

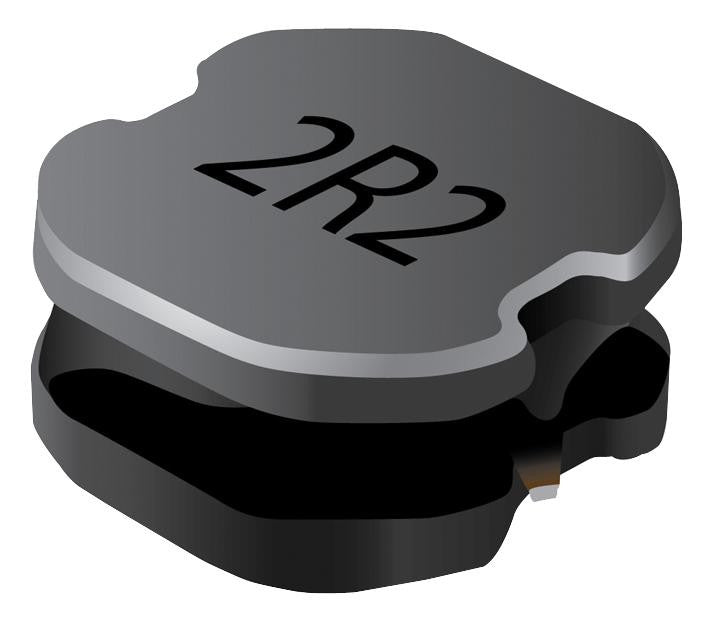

The SRN8040-2R2Y is a surface mount semi-shielded Power Inductor with ferrite core. This SRN8040 series inductor features enamelled copper wire with Sn/Ag/Cu terminal finish and magnetic epoxy resin coating. Supports 100kHz frequency and 30% inductance tolerance.
- Semi-shielded construction
- Halogen-free
- 1V Voltage
Applications
Power Management, Computers & Computer Peripherals, Consumer Electronics, Portable Devices
Product details
| Inductance Tolerance | � 30% |
| RMS Current (Irms) | 6.3A |
| Saturation Current (Isat) | 7.4A |
| Power Inductor Case | 8mm x 8mm x 4mm |
| Inductance | 2.2�H |
| Inductor Construction | Shielded |
| Product Range | SRN8040 Series |
| DC Resistance Max | 0.013ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRN8040-2R2Y |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
