Description

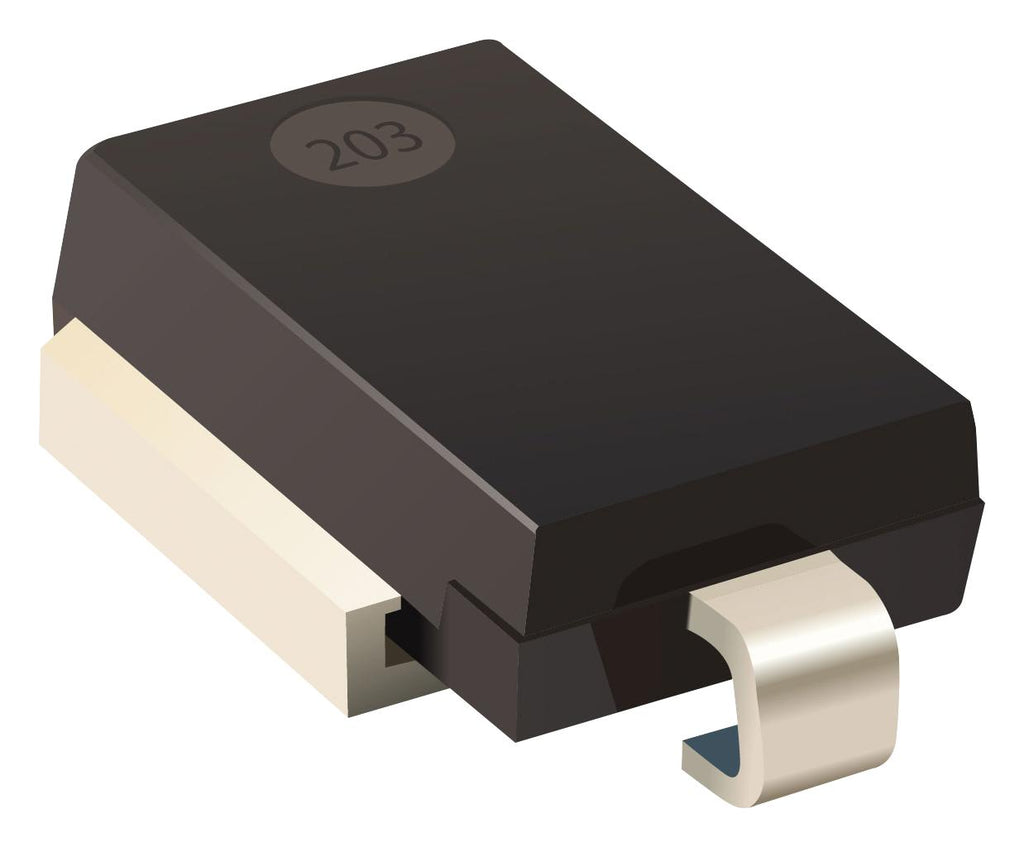

This is a TVS Diode, SM8S-Q Series, Bidirectional, 33 V, 53.3 V, DO-218, 2 Pins product from BOURNS with the model number SM8S33CA-Q
Product details
| Product Range | SM8S-Q Series |
| TVS Polarity | Bidirectional |
| Reverse Stand-Off Voltage Vrwm | 33V |
| Clamping Voltage Vc Max | 53.3V |
| Diode Case Style | DO-218 |
| No. of Pins | 2Pins |
| Breakdown Voltage Min | 36.7V |
| Breakdown Voltage Max | 40.6V |
| Peak Pulse Power Dissipation | 6.6kW |
| Automotive Qualification Standard | AEC-Q101 |
Other details
| Brand | BOURNS |
| Part Number | SM8S33CA-Q |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Product Change Notice EN | |
