Description

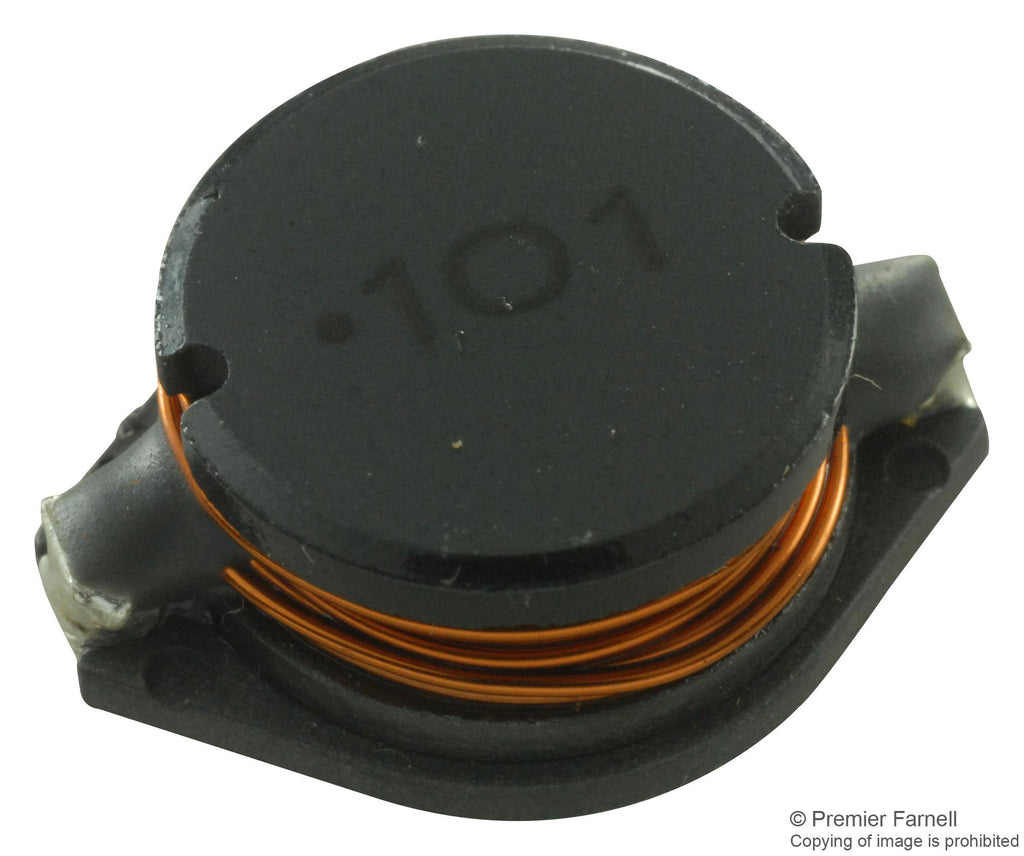

This is a Surface Mount Power Inductor, SDR1806 Series, 100 µH, 1.7 A, 3.2 A, Unshielded, 0.19 ohm product from BOURNS with the model number SDR1806-101KL
Product details
| Product Range | SDR1806 Series |
| Inductance | 100µH |
| RMS Current (Irms) | 1.7A |
| Saturation Current (Isat) | 3.2A |
| Inductor Construction | Unshielded |
| DC Resistance Max | 0.19ohm |
| Power Inductor Case | 18.3mm x 14mm x 6.6mm |
| Inductance Tolerance | ± 10% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SDR1806-101KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
