Description

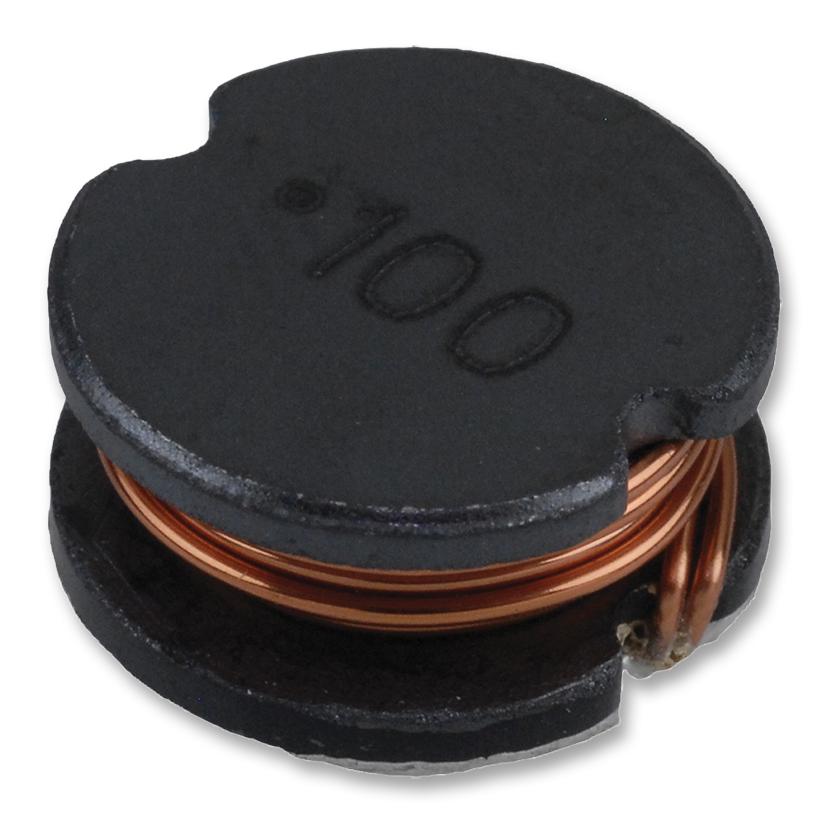

This is a Power Inductor (SMD), 1 mH, 0.65 A, Unshielded, 1 A, SDR1307 Series, 13mm x 13mm x 7mm product from BOURNS with the model number SDR1307-102KL
Product details
| Inductance | 1mH |
| RMS Current (Irms) | 650mA |
| Inductor Construction | Unshielded |
| Saturation Current (Isat) | 1A |
| Product Range | SDR1307 Series |
| Power Inductor Case | 13mm x 13mm x 7mm |
| DC Resistance Max | 1.6ohm |
| Inductance Tolerance | ± 10% |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | BOURNS |
| Part Number | SDR1307-102KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
