Description

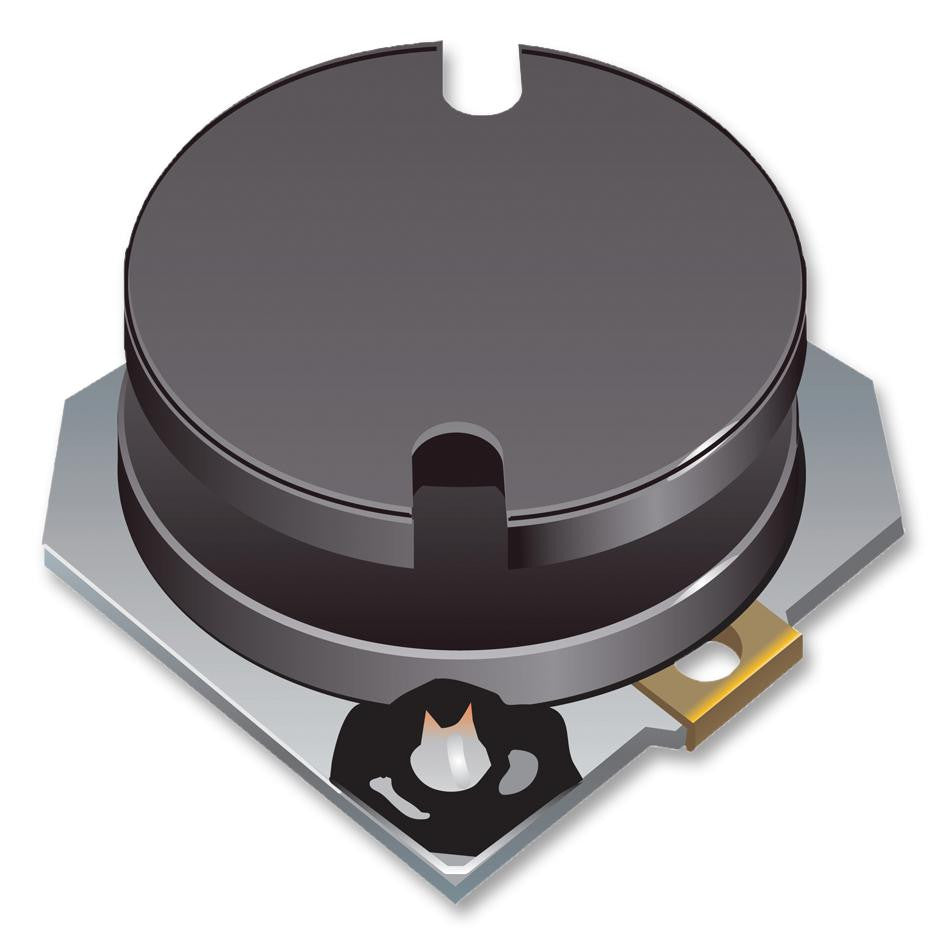

This is a Surface Mount Power Inductor, SDR1105 Series, 15 µH, 3.5 A, 8 A, Unshielded, 0.052 ohm product from BOURNS with the model number SDR1105-150ML
Product details
| Product Range | SDR1105 Series |
| Inductance | 15µH |
| RMS Current (Irms) | 3.5A |
| Saturation Current (Isat) | 8A |
| Inductor Construction | Unshielded |
| DC Resistance Max | 0.052ohm |
| Power Inductor Case | 11.1mm x 10mm x 4.8mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SDR1105-150ML |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
