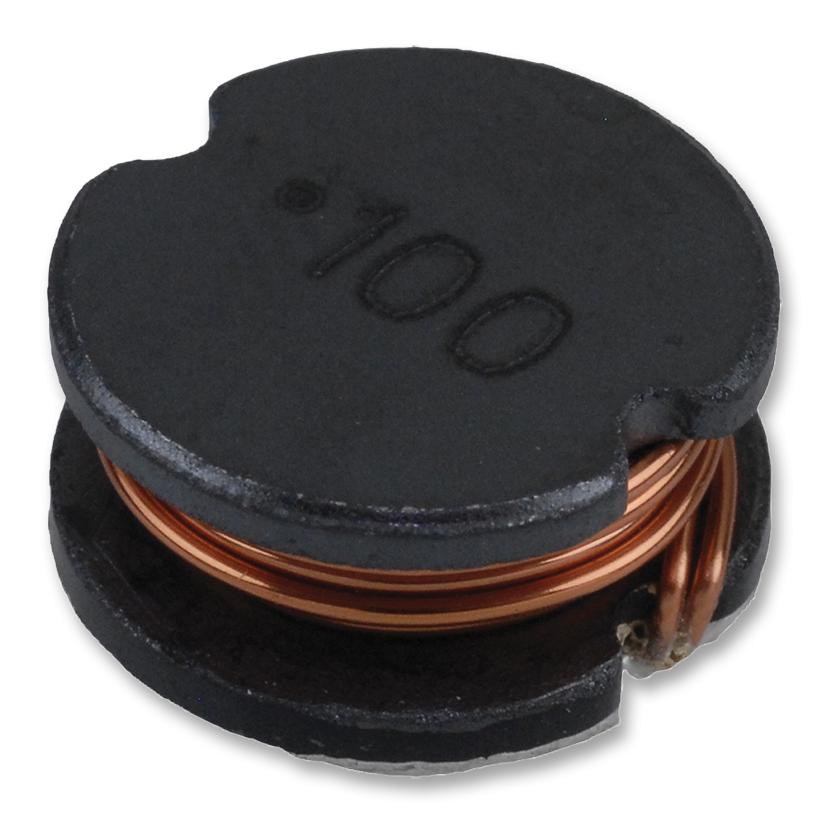

This is a Power Inductor (SMD), 1 mH, 230 mA, Unshielded, 530 mA, SDR1006 Series, 9.8mm x 9.8mm x 5.8mm product from BOURNS with the model number SDR1006-102KL
Product details
| Inductance |
1mH |
| RMS Current (Irms) |
230mA |
| Inductor Construction |
Unshielded |
| Saturation Current (Isat) |
530mA |
| Product Range |
SDR1006 Series |
| Power Inductor Case |
9.8mm x 9.8mm x 5.8mm |
| DC Resistance Max |
3.1ohm |
| Inductance Tolerance |
± 10% |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
BOURNS |
| Part Number |
SDR1006-102KL |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
