Description

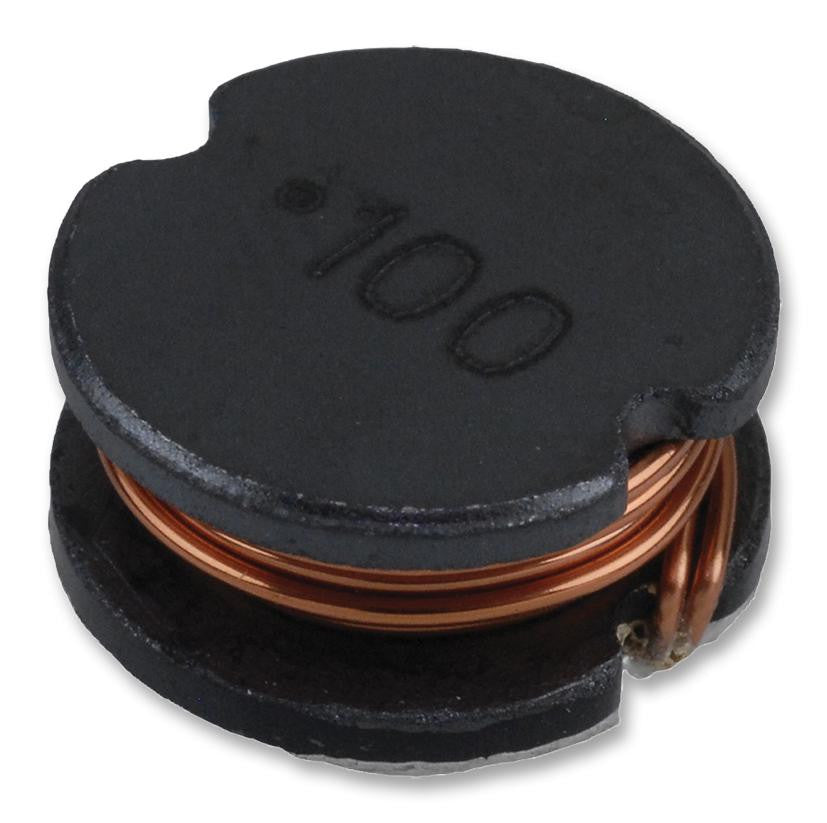

This is a Surface Mount Power Inductor, SDR0805 Series, 1.2 mH, 170 mA, 280 mA, Unshielded, 6.8 ohm product from BOURNS with the model number SDR0805-122KL
Product details
| Product Range | SDR0805 Series |
| Inductance | 1.2mH |
| RMS Current (Irms) | 170mA |
| Saturation Current (Isat) | 280mA |
| Inductor Construction | Unshielded |
| DC Resistance Max | 6.8ohm |
| Power Inductor Case | 7.8mm x 7.8mm x 5.3mm |
| Inductance Tolerance | ± 10% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SDR0805-122KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
