| ₹ 60.8 includes GST and import duties. | |
| B2B customers can avail ₹ 9.27 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

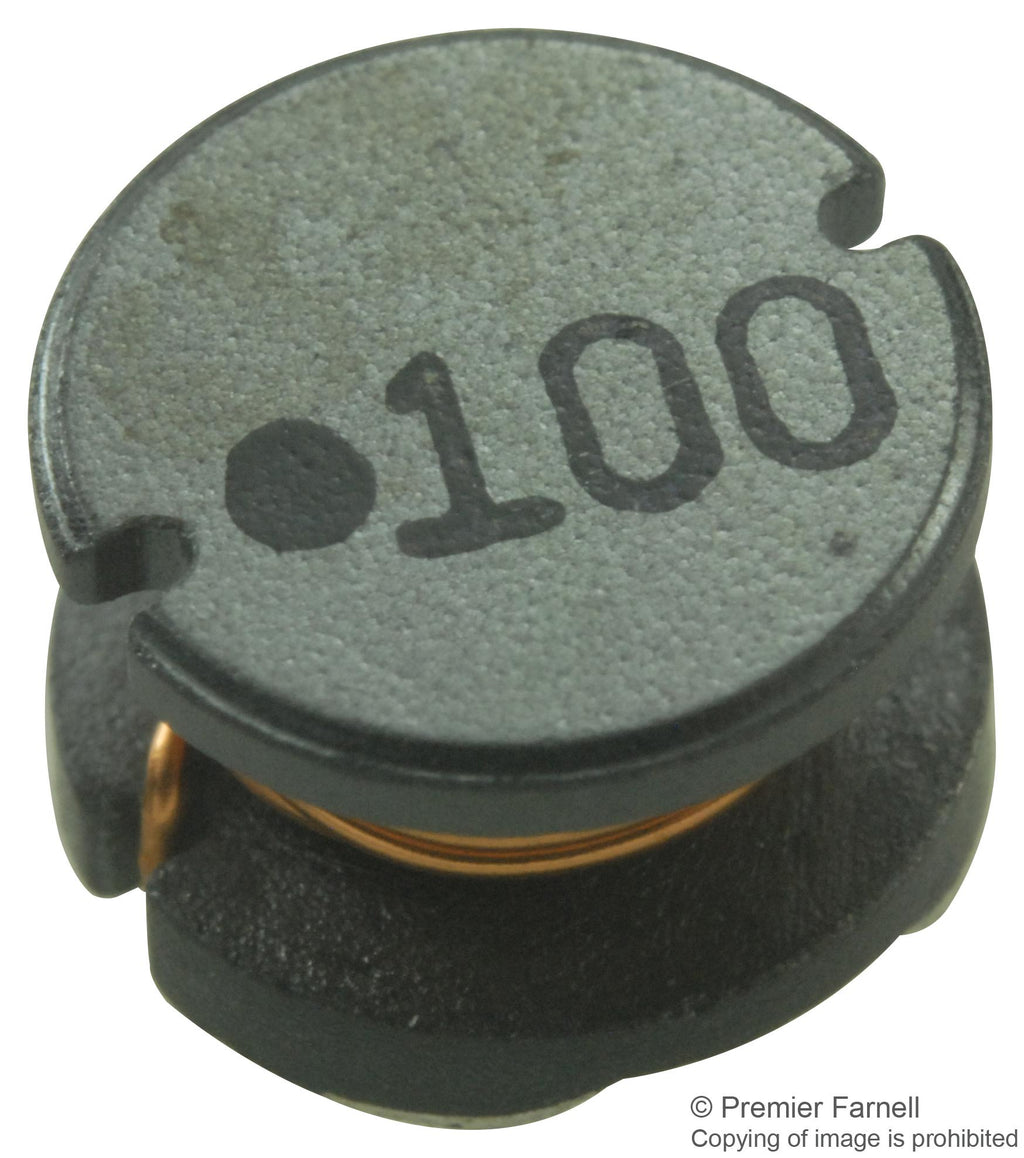

This is a Power Inductor (SMD), 10 µH, 2.3 A, 3.2 A, SDR0805 Series, 7.8mm x 7.8mm x 5.3mm, Unshielded product from BOURNS with the model number SDR0805-100ML
Product details
| Inductance | 10µH |
| RMS Current (Irms) | 2.3A |
| Saturation Current (Isat) | 3.2A |
| Product Range | SDR0805 Series |
| Power Inductor Case | 7.8mm x 7.8mm x 5.3mm |
| Inductor Construction | Unshielded |
| DC Resistance Max | 0.07ohm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SDR0805-100ML |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 59.58 |
| 3-5 | ₹ 58.98 |
| 5-10 | ₹ 57.76 |
| 10+ | ₹ 56.54 |
Bulk discount will be automatically applied during checkout based on quantity.
