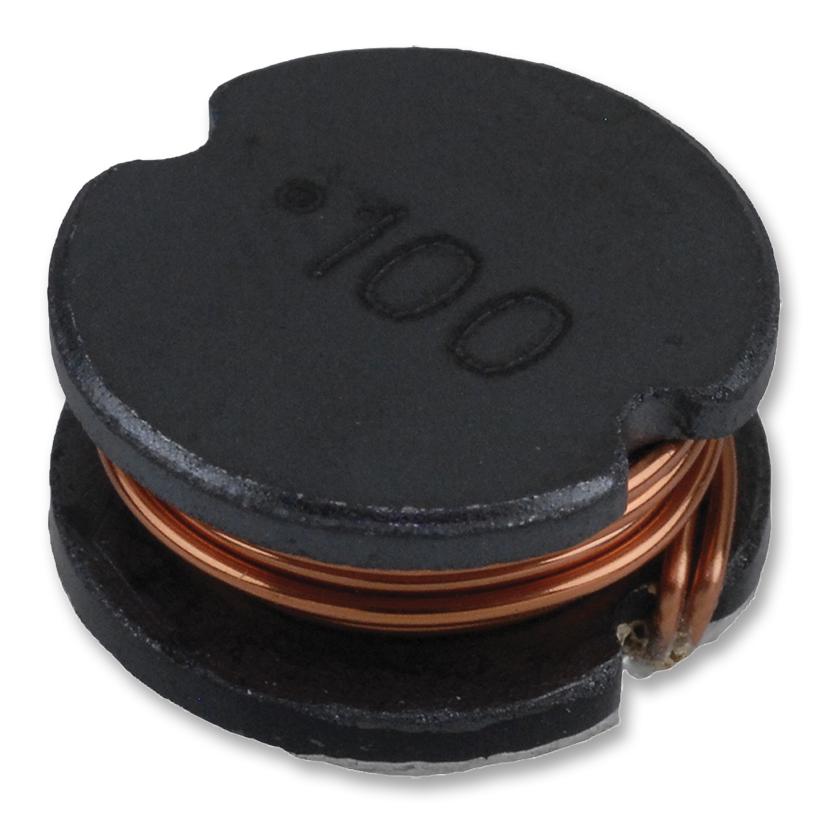

This is a Power Inductor (SMD), 100 µH, 380 mA, 660 mA, SDR0603 Series, 5.8mm x 5.8mm x 3.9mm, Unshielded product from BOURNS with the model number SDR0603-101KL
Product details
| Inductance |
100µH |
| RMS Current (Irms) |
380mA |
| Saturation Current (Isat) |
660mA |
| Product Range |
SDR0603 Series |
| Power Inductor Case |
5.8mm x 5.8mm x 3.9mm |
| Inductor Construction |
Unshielded |
| DC Resistance Max |
0.95ohm |
| Inductance Tolerance |
± 10% |
| Packaging |
Cut Tape |
Other details
| Brand |
BOURNS |
| Part Number |
SDR0603-101KL |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| 3D Product Image EN |
|
