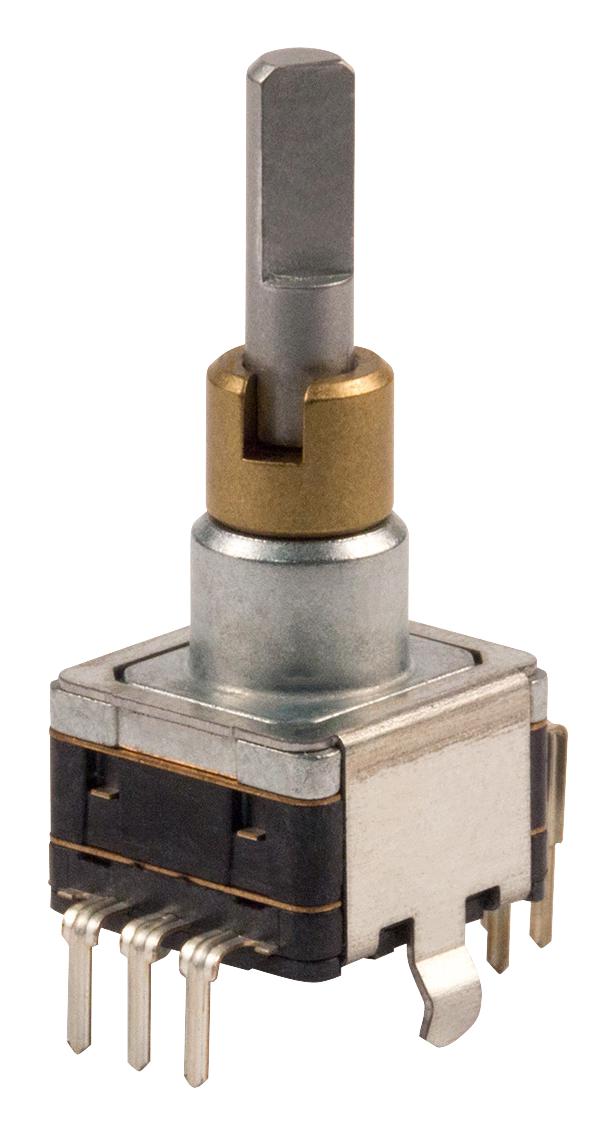

PEC11D series 12mm dual concentric rotary encoder with momentary push switch. The model PEC11D series is designed to meet the specifications of professional audio and lighting applications, communications equipment, industrial automation controls, and any other application with space constraints requiring two encoders in a single unit. Applications include professional audio equipment, professional lighting consoles, low to medium risk medical and diagnostic equipment, test and measurement equipment, medical laboratory equipment, communications equipment, musical instrumentation, audio-visual equipment and industrial automation controls.
- Dual concentric shaft
- 15,000 rotational cycle rating, 20,000 cycles minimum switch life
- Operating temperature range from -40?C to +85?C
- Quadrature output
- IP 40 dust seal rating
- 1.5mm momentary switch stroke (high)
- 15PPR resolution
- Metal flatted inner shaft with slotted outer shaft
- PC pin horizontal/rear facing
Other details
| Brand |
BOURNS |
| Part Number |
PEC11D-4120F-H0015 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Certificate of Conformity EN |
|
| CAD Multiple Formats EN |
|
