Description

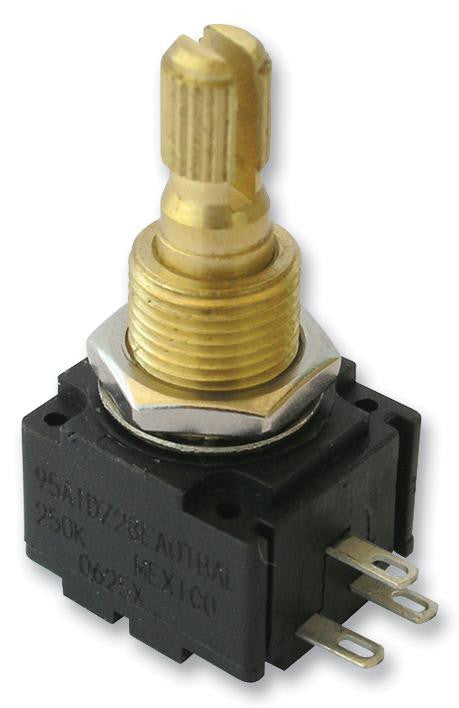

The 95A1D-Z28-EA0/303L is a Guitar Potentiometer with a plain shaft and standard bushing. This model 95 premium potentiometer comes with a conductive polymer element, audio logarithmic track taper and single-turn.
- Smooth rotational feel
- Long rotational life
- Low noise/low impedance
- 1000MR at 100VDC Minimum insulation resistance
- 1500VAC at sea level Minimum dielectric withstanding voltage
- 100000 cycles Rotational life
- IP40 Protection rating
Applications
Audio, Aerospace, Defence, Military
Product details
Shaft Length | 22.23mm |
Shaft Diameter | 6.31mm |
No. of Gangs | 1 |
Adjustment Type | Screwdriver Slot |
Resistance Tolerance | ± 20% |
Product Range | 95 Series |
Track Taper | Logarithmic |
No. of Turns | 1Turns |
Potentiometer Mounting | Bushing |
Power Rating | 250mW |
Track Resistance | 500kohm |
Other details
Brand | BOURNS |
Part Number | 95A1D-Z28-EA0/303L |
Quantity | Each |
Technical Data Sheet EN | |
3D Product Image EN |
