Description

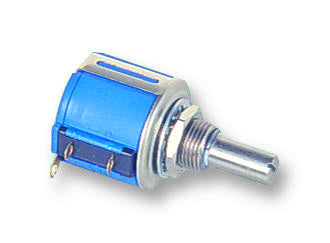

The 3541H-1-103L is a Precision Potentiometer with bushing mount and high torque and Gold-plated solder lugs terminals.
- Gangable with common or concentric shafts
- Optional AR lug feature
- Optional center tap and rear shaft extension
- 1000MR Insulation resistance
- 1000V Dielectric withstanding voltage
- 3600 +10� Mechanical angle
- IP67 Protection rating
Applications
Audio, Industrial
Product details
| Shaft Length | 20.62mm |
| Shaft Diameter | 6.34mm |
| No. of Gangs | 1 |
| Adjustment Type | Screwdriver Slot |
| Resistance Tolerance | � 10% |
| Product Range | 3541H Series |
| Track Taper | Linear |
| No. of Turns | 10Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 2W |
| Track Resistance | 10kohm |
Other details
| Brand | BOURNS |
| Part Number | 3541H-1-103L |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
