Description

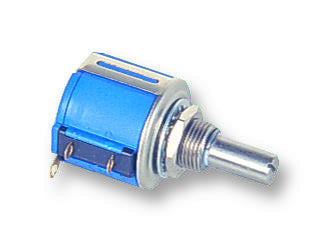

The 3540S-1-202L is a 2kR 2W panel-mounting wirewound Rotary Precision Potentiometer with gold-plated solder lugs terminals and linear track taper. The precision potentiometer features 10 turns, screwdriver slot adjustment and 1° maximum backlash.
- Excellent wiper stability
- High stop strength
- Sealable
- 1 to 125°C Operating temperature range
Applications
Industrial
Product details
| Shaft Length | 20.62mm |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Screwdriver Slot |
| Resistance Tolerance | ± 5% |
| Product Range | 3540S Series |
| Track Taper | Linear |
| No. of Turns | 10Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 2W |
| Track Resistance | 2kohm |
Other details
| Brand | BOURNS |
| Part Number | 3540S-1-202L |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Miscellaneous EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
