Description

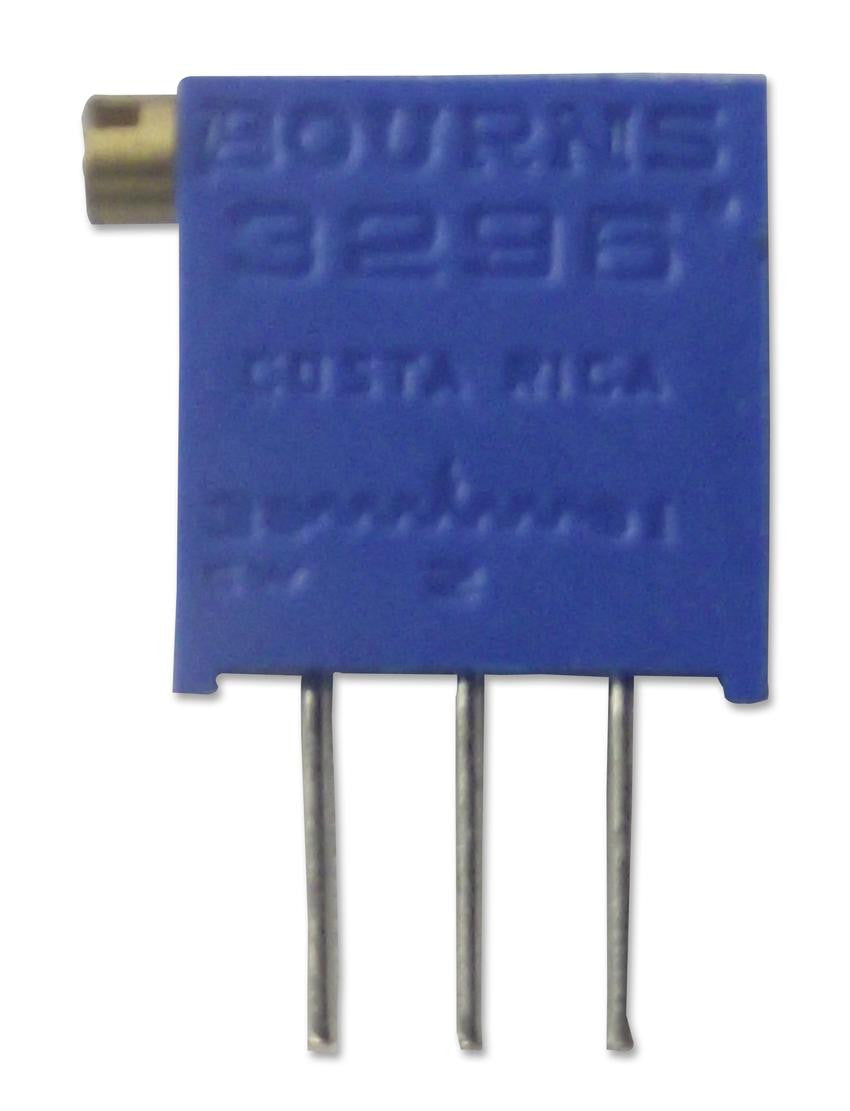

The Bourns Trimpot 3296 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
- 3/8inch square potentiometer
- Side or top adjustment with lead screw
- Sealing is IP65 rated
- 25 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 2Mohm
- ±10% tolerance
- Temperature coefficient is ±100ppm/°C
- Operating temperature range -55°C to +125°C
- Power rating is 0.5W
- 5 terminal styles, chevron seal design
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | ± 100ppm/°C |
| Power Rating | 500mW |
| No. of Turns | 25Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | ± 10% |
| Product Range | Trimpot 3296 Series |
| Track Resistance | 20kohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3296X-1-203LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
