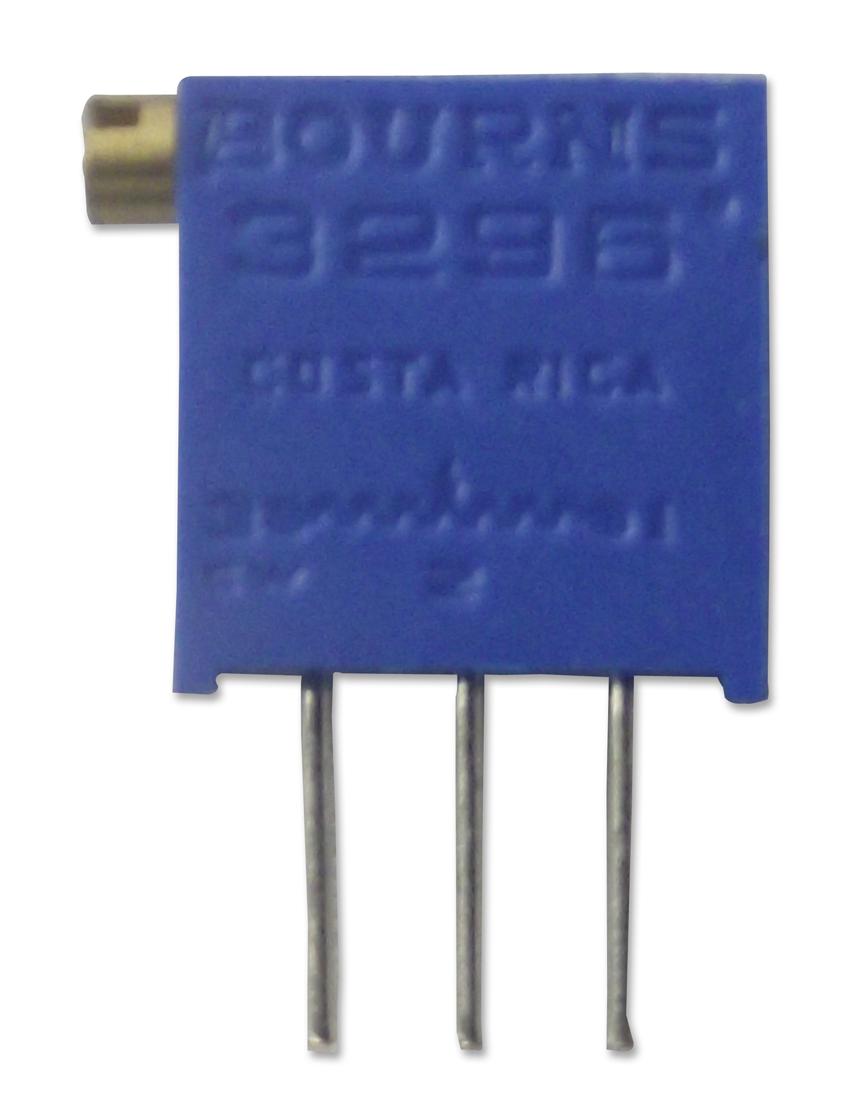

The 3296X-1-103LF is a 3/8-inch Square Trimpot® Trimming Potentiometer with multiturn/cermet/industrial/sealed and through hole mount. 5 terminal styles and chevron seal design. Power rating of 0.5W and temperature coefficient of ±100ppm/°C.
- 1000MR Insulation resistance
- 900V Dielectric strength
- UL94V-0 Flammability
- Solderable pins
- Adjustment angle 25 turns
- ±10% tolerance
- Temperature coefficient is ±100ppm/°C
- Operating temperature ranges from -55°C to +125°C
- Power rating is 0.5W
- 5 terminal styles, chevron seal design
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
BOURNS |
| Part Number |
3296X-1-103LF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| 3D Product Image EN |
|
| CAD Multiple Formats EN |
|
