| ₹ 588.37 includes GST and import duties. | |
| B2B customers can avail ₹ 89.73 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

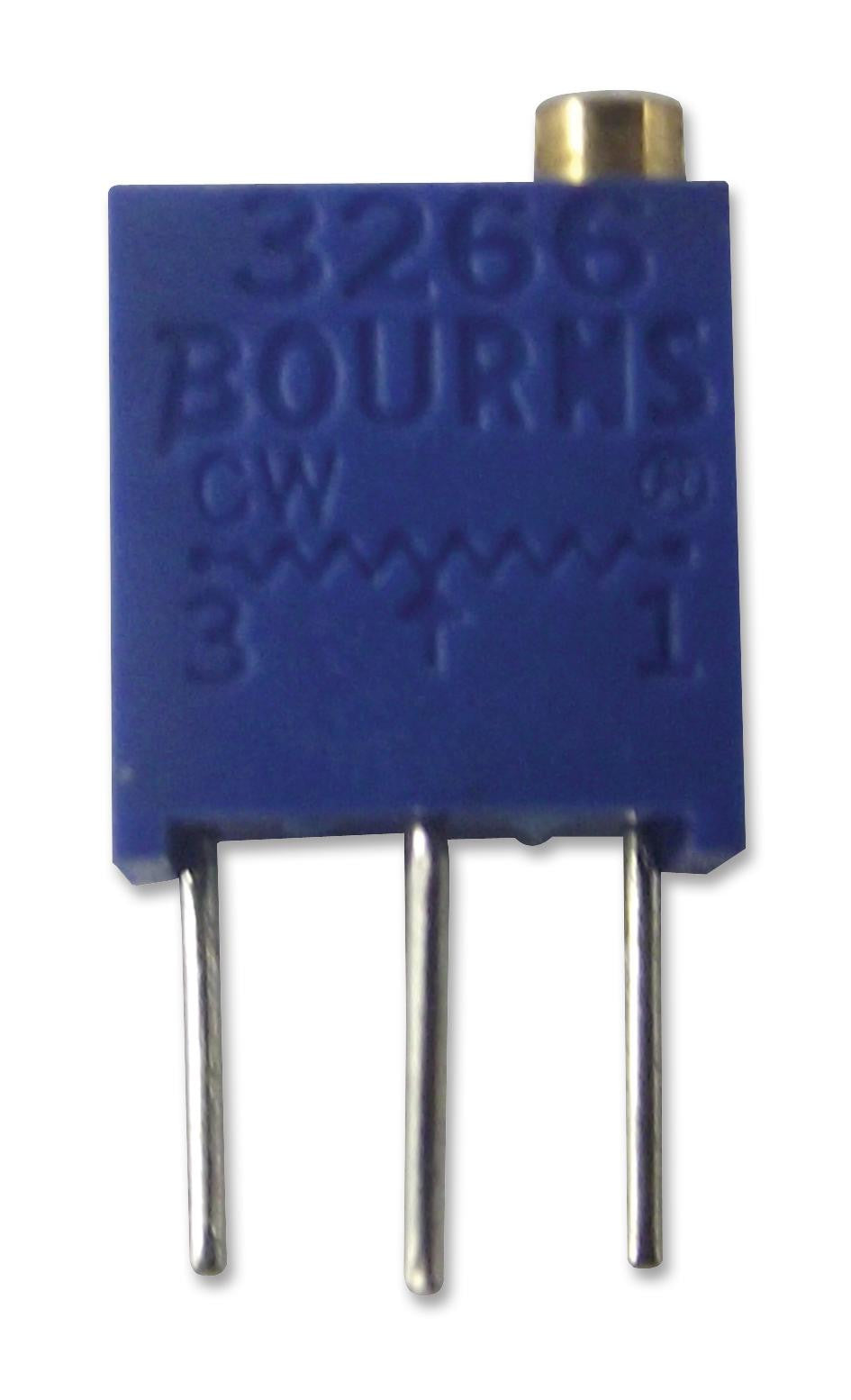

The 3266W-1-503LF is a 1/4-inch Square Trimpot� Trimming Potentiometer with multiturn/cermet/industrial/sealed and through hole mount. Standoffs allow thorough PC board washing and power rating of 0.25W and temperature coefficient of �100ppm/�C.
- 1000MR Insulation resistance
- 600V Dielectric strength
- UL94V-0 Flammability
- Solderable pins
- Adjustment angle 12 turns
- �10% tolerance
- Temperature coefficient is �100ppm/�C
- Operating temperature range -55�C to +125�C
- Power rating is 0.25W
- Standoffs allow thorough PC board cleaning
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 250mW |
| No. of Turns | 12Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | � 10% |
| Product Range | Trimpot 3266 Series |
| Track Resistance | 50kohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3266W-1-503LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 576.6 |
| 3-5 | ₹ 570.72 |
| 5-10 | ₹ 558.95 |
| 10+ | ₹ 547.18 |
Bulk discount will be automatically applied during checkout based on quantity.
