| ₹ 370.89 includes GST and import duties. | |
| B2B customers can avail ₹ 56.56 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

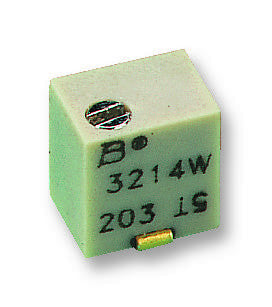

The Bourns Trimpot 3214 series are cermet, surface mount trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
- 4mm square potentiometer meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint
- Side or top adjustment with lead screw
- Sealed to withstand board wash processing
- 5 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 2Mohm
- Tolerance of ±10%
- Temperature coefficient is ±100ppm/°C
- Operating temperature ranges from -65°C to +150°C
- Power rating is 0.25W
- Pick and place centring design with flush adjustment
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Resistance Tolerance | ± 10% |
| Product Range | Trimpot 3214 Series |
| Automotive Qualification Standard | AEC-Q200 |
| Temperature Coefficient | ± 100ppm/°C |
| No. of Turns | 5Turns |
| Potentiometer Mounting | Surface Mount Device |
| Power Rating | 250mW |
| Track Resistance | 500kohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3214W-1-504E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 363.47 |
| 3-5 | ₹ 359.76 |
| 5-10 | ₹ 352.35 |
| 10+ | ₹ 344.93 |
Bulk discount will be automatically applied during checkout based on quantity.
