Description

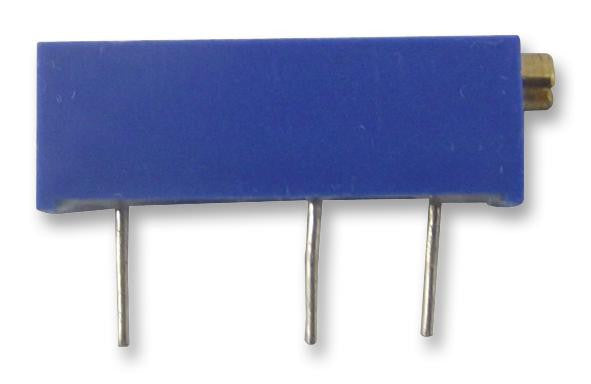

The Bourns Trimpot 3006 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
- 3/4inch rectangular potentiometer
- Side adjustment with lead screw
- Sealing is IP65 rated
- 15 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 5Mohm
- �10% tolerance
- Temperature coefficient is �100ppm/�C
- Operating temperature range -55�C to +125�C
- Power rating is 0.75W
- Low PC board profile of 1/4 " high
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 100ppm/�C |
| Power Rating | 750mW |
| No. of Turns | 15Turns |
| Potentiometer Mounting | Through Hole |
| Automotive Qualification Standard | - |
| Resistance Tolerance | � 10% |
| Product Range | Trimpot 3006 Series |
| Track Resistance | 20kohm |
| MSL | - |
Other details
| Brand | BOURNS |
| Part Number | 3006P-7-203LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
